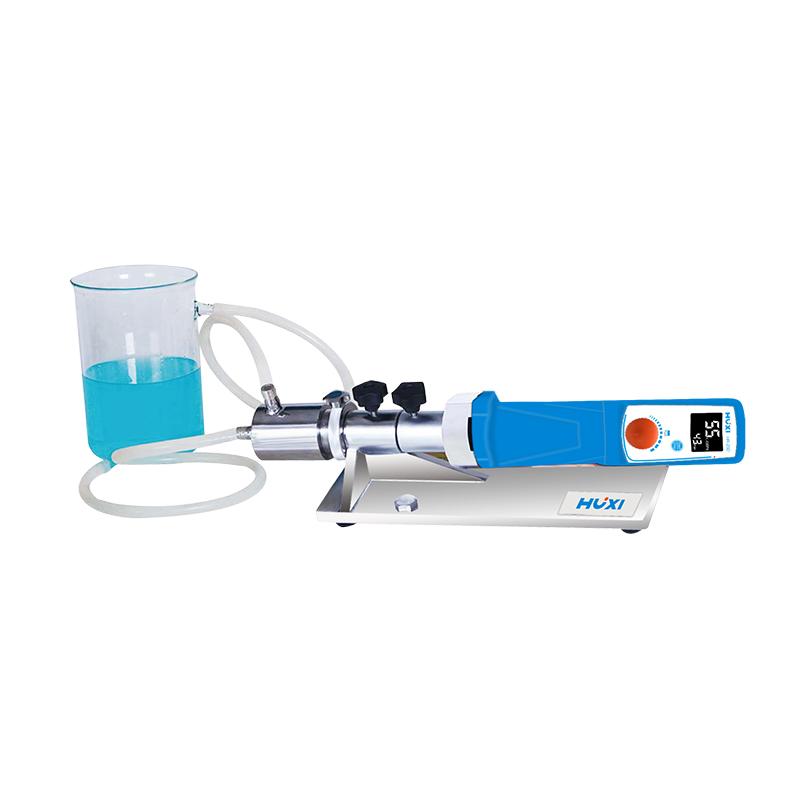

HUXI HZR-25D Online Mulser set, high shear force 26000rpm

Name: HUXI HZR-25D Online Mulser set, high shear force 26000rpm
Brand: HuXi
SKU: NB046425
Price: 2621.0 USD
Availability: InStock

$ 2621.00Ex works

Rotation speed up to 26000rpm, providing 27m2/s shear line speed, long-term stable operation, fine and uniform processing of materials, no dispersion dead angle, suitable for high viscosity up to 10000CP working conditions.

Model

Get Quote

Category : Emulsifying Machine

Brand : HuXi

SKU : NB046425

Service :The delivery and service By NBCLab.Com

Overview

HUXI HZR-25D Online Mulser is a high-efficiency emulsification mixing equipment with a lightweight, Modular structure design, easy operation and support for long-term continuous operation. The equipment ensures that 100% of the material passes through the shearing cavity to achieve efficient homogenization without dispersion dead ends. It is suitable for laboratory simulation of online working conditions for cycle or online continuous processing to complete dispersion, emulsification, homogenization and mixing processes.

Features

1. Adopt brushless motor high-speed motor, long-life design, support continuous long-term stable operation; 2. Rotation speed 26000rpm, providing up to 27m ²/s shear line speed; 3. The working head and machine base are made of stainless steel, which is resistant to corrosion; 4. Excellent sealing effect, unique stator and rotor structure produces strong shear force, rapid particle size reduction, fine processing and uniform dispersion.

Principle

The high-speed motor is used to drive the stator and rotor structure to generate strong shear force, so that the material can be fully circulated and cut in the shear chamber to achieve high-efficiency homogenization and dispersion without dispersion dead angle.

Applications

Laboratory on-line processing, on-line dispersion, emulsification, homogenization, mixing

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Motor power
750W
Motor Type
DC brushless motor
Speed Range
4000~26000rpm
Speed control
Knob speed regulation
Rotation speed display
digital display
stirring amount
1-20L/min
Maximum processing viscosity
10000CP
Standard header
20DG
Standard working chamber
Stainless steel jackless working chamber
Contact logistics material
SUS316L
Mechanical sealing material
SiC
Inlet and outlet outer diameter
12 (hose interface)
Dimension
460*120*120mm
Work bracket, base, disassembly and assembly worker
Stainless steel standard
power supply
220V/50Hz
Permissible Ambient Temperature
5-40℃
Environmental humidity
80%

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
