Overview

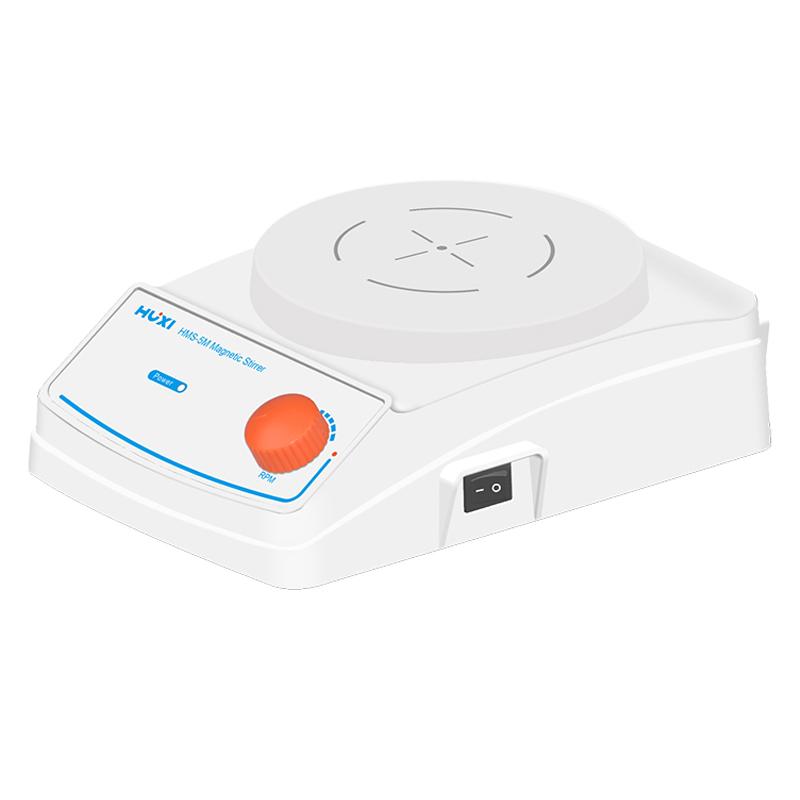

The HMS-5M ordinary Magnetic Stirrer is the basic type, which is mainly used for stirring liquid or solid-liquid mixtures with low viscosity consistency. Using the same-sex repulsion of magnetic substances, the polarity at both ends of the base is constantly changed to push the magnetic stirrer to rotate, so as to drive the sample swirl/spin, so that the sample is uniformly mixed, and is widely used in Chemistry synthesis, biology, scientific research institutions and other fields.
Features
1. DC brushless motor, can run for a long time;
2. Wide voltage design, wide range of applications;
3. Fully enclosed shell design, High Protection Rating;
4. Adopt the knob key adjustment method, Rotation speed is adjustable, and the green light is on during operation.
Principle
Utilizing the characteristics of the same-sex repulsion of magnetic substances, the magnetic stirrer is rotated by constantly changing the polarity at both ends of the base, thereby driving the sample swirl/spin, so that the sample is uniformly mixed.
Applications
Chemistry synthesis, biology, scientific research institutions
Steps
1. Connect the device to 100~ 240V power supply, Frequency 50-60Hz;
2. Place the sample container on the base and put in the magnetic stirrer;
3. Adjust the stirring speed to the required range (0-2000rpm) through the knob key;
4. Start the device and turn on the green light during operation to indicate normal operation;
5. After mixing is complete, turn off the equipment and disconnect the power supply.
Notice
- Only suitable for stirring liquid or solid-liquid mixtures with low viscosity consistency, Max. 3L stirring Capacity;
- Ambient Temperature should be maintained at 5~ 40 ℃, relative humidity does not exceed 80%;
- The equipment adopts a fully enclosed case, and the Protection Rating is IP42, but it is still necessary to avoid a large amount of liquid splashing;
- Power supply voltage in the range of 100~ 240V before use to avoid overload;
- If there is an abnormality during operation, stop using it immediately and check it.
During cleaning and maintenance, please disconnect the power supply and follow safe operating procedures.
