Overview

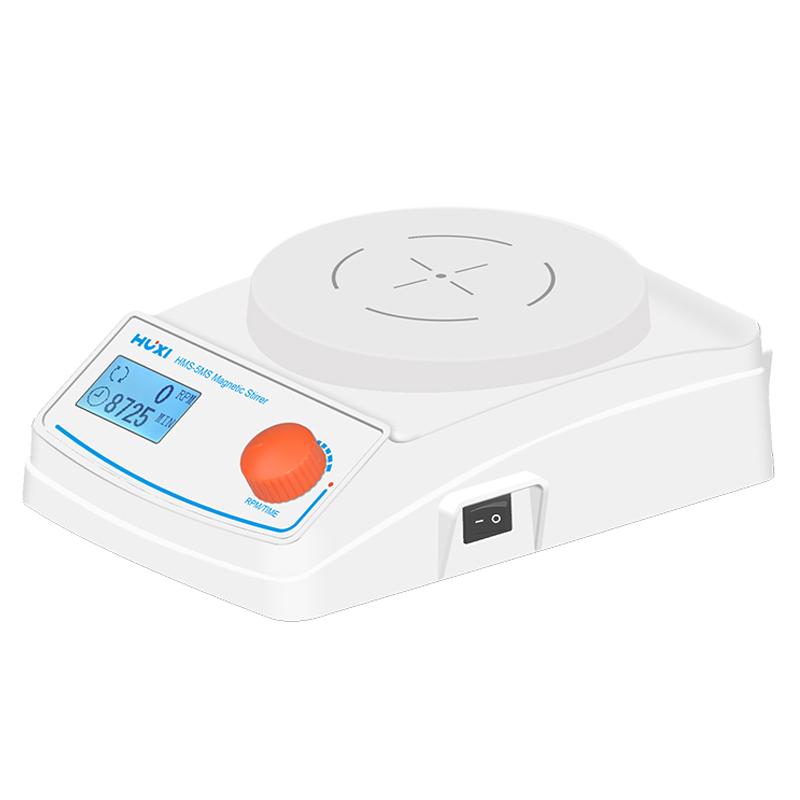

HMS-5MS is a digital Magnetic Stirrer, which is mainly used for stirring liquid or solid-liquid mixtures with low viscosity consistency. Using the same-sex repulsion of magnetic substances, the polarity at both ends of the base is constantly changed to push the magnetic stirrer to rotate, thereby driving the sample swirl/spin, so that the sample is uniformly mixed, and is widely used in Chemistry synthesis, biology, scientific research institutions and other fields.
Features
1. DC brushless motor, can run for a long time;
2. Wide voltage design, wide range of applications;
3. Fully enclosed shell design, High Protection Rating;
4. LCD display, real-time display of the sample running Rotation speed value.
Principle
Utilizing the characteristics of the same-sex repulsion of magnetic substances, the magnetic stirrer is rotated by constantly changing the polarity at both ends of the base, thereby driving the sample swirl/spin, so that the sample is uniformly mixed.
Applications
Chemistry synthesis, biology, scientific research institutions
Standards
Protection Rating: IP42
Steps
1. Place the sample on the Stirrer tray.
2. Put in the magnetic stirrer;
3. Turn on the power supply, set the required Rotation speed and timing time;
4. Start Stirrer and monitor Rotation speed through LCD display;
5. Turn off the power after stirring, and take out the sample and stirrer.
Notice
• Only suitable for stirring liquids or solid-liquid mixtures with low viscosity consistency;
• Max. Capacity of stirring 3L;
• Ambient Temperature should be in the range of 5~ 40 ℃;
• relative humidity should not exceed 80%;
• Power supply voltage in the range of 100~ 240V;
• Regularly clean the surface of the working plate to keep the equipment clean.
• Avoid use in humid or flammable environments.
