Overview

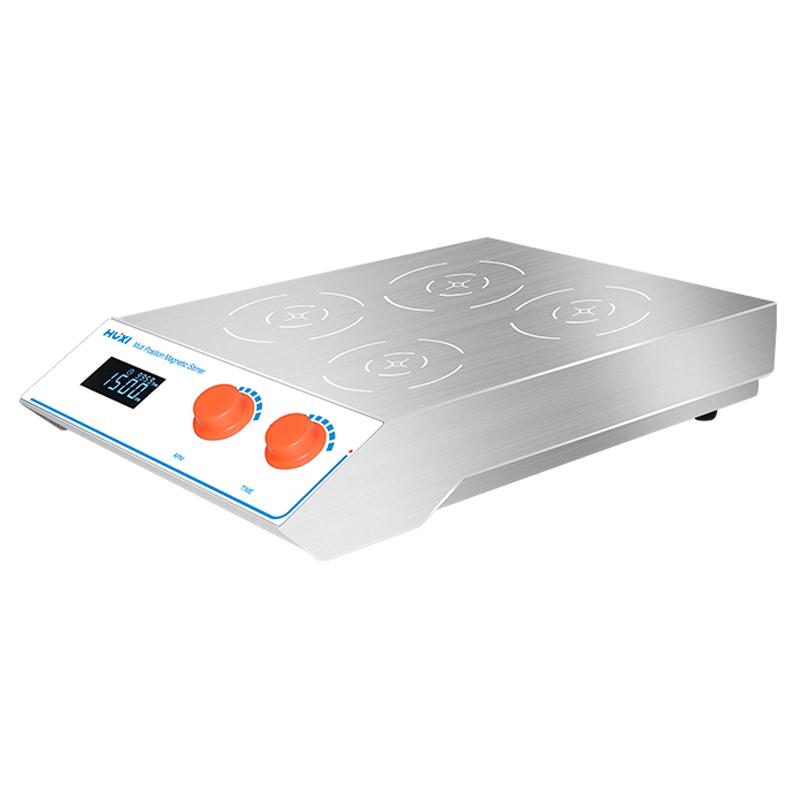

HMS-4MD synchronous control 4-station Magnetic Stirrer is commonly used to stir low-viscosity liquids or solid-liquid mixtures, and is specially designed for research and development in institutions, scientific research, environmental protection, chemical, biological, pharmaceutical and other industries.
Features
1.100~ 240V wide voltage design, wide application range
2. With 0~ 9999min time setting function, high-quality anti-skid foot pads are close to the experimental table and run smoothly
3. IP64 protection level, providing splash and waterproof protection in all directions and angles
4. 100% synchronous operation of each station to ensure sample running environment conformity, double knob design, time Rotation speed adjustable
5. Made of 316 stainless steel, strong and firm, excellent corrosion resistance and high temperature resistance
6. DC brushless motor drive, low noise, low maintenance, maintenance-free, long service life
7. LCD display real-time display Rotation speed and time, data intuitive and accurate
8. The standard stirrer has strong magnetic force and remarkable stirring effect, and the stirring amount of a single station can reach 1000ml.
9. Rotation speed can be set to 200~ 2200rpm, even at low speed can run smoothly
Principle
The swirl/spin magnetic field is generated by the DC brushless motor, and the stirrer is driven to swirl/spin in the container to realize the stirring and mixing of liquid or solid-liquid mixture. The four stations adopt synchronous control technology to ensure that the operating parameters of each station are exactly the same.
Applications
Colleges and universities, scientific research, environmental protection, chemical industry, biology, pharmaceuticals
Steps
1. Place the equipment on a stable experimental surface
2. Connect 100~ 240V power supply
3. Place containers with stirrers at each station
4. Rotation speed and time parameters set by double knob
5. Start the equipment and start the mixing operation
6. Monitor the operating status through the LCD display
Notice
• Operating Environment Temperature should be within 5~ 40 ℃
• relative humidity should not exceed 80%
• The size of the stirrer should be ≤ 20mm
• Max. stirring Capacity of 1000ml
• Ensure that the equipment is placed on a smooth countertop to run
• Pay attention to IP64 Protection Rating to avoid the intrusion of liquids beyond the protection range
