Overview

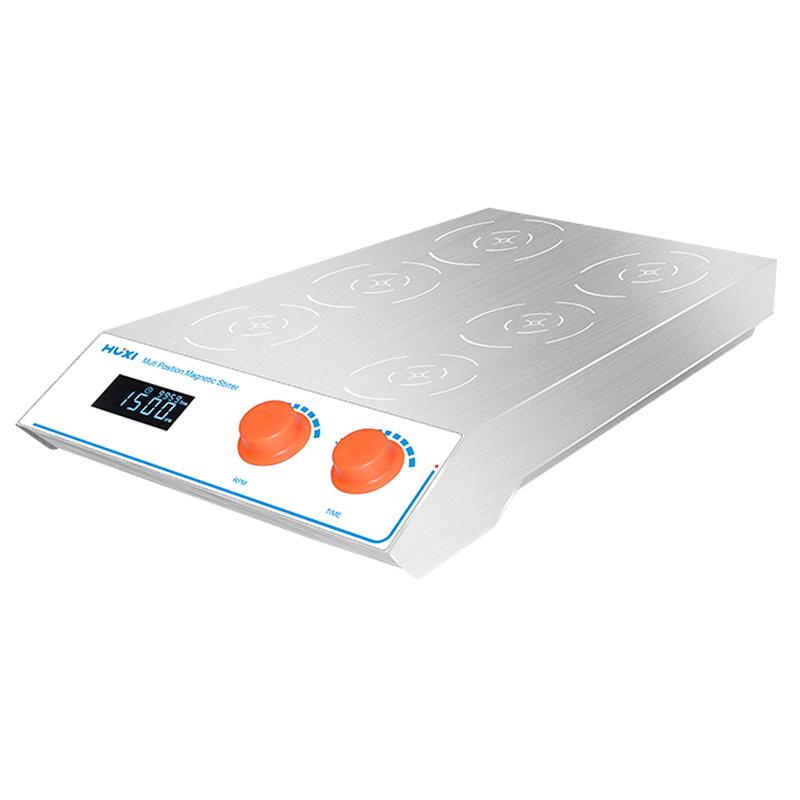

HMS-6MD synchronous control 6-station Magnetic Stirrer is commonly used to stir low-viscosity liquids or solid-liquid mixtures, and is specially designed for research and development in institutions, scientific research, environmental protection, chemical, biological, pharmaceutical and other industries.
Features
1.100~ 240V wide voltage design, wide application range
2. With time setting function, adjustable within 0~ 9999min Timer Range, high-quality anti-skid foot pads close to the test table, no gap, smooth operation
3. IP64 protection level, providing splash and waterproof protection in all directions and angles
4. Each station 100% synchronous operation to ensure the conformity of the sample operating environment, double knob design, time Rotation speed adjustable, good start-up performance, wide speed range
5. Made of 316 stainless steel, strong and firm, excellent corrosion resistance and high temperature resistance
6. DC brushless motor drive, low noise, low maintenance, maintenance-free, long service life
7. LCD display real-time display Rotation speed and time, data intuitive, more accurate reading
8. The standard stirrer has strong magnetic force and remarkable stirring effect, and the stirring amount of a single station can reach 1000ml.
9. Rotation speed can be set to 200~ 2200rpm, even at low speed can run smoothly
Principle
The product is driven by brushless DC motor and realizes stirring function through magnetic coupling principle. Each station runs 100% synchronously to ensure the conformity of the sample operating environment, and controls the time and Rotation speed parameters through double knobs.
Applications
Colleges and universities, scientific research, environmental protection, chemical industry, biology, pharmaceuticals
Steps
1. Connect the 100-240V power supply
2. Set the desired Rotation speed (200-2200rpm) and time (0-9999min) through double knobs
3. Place the mixing vessel and stirrer
4. Start the equipment and start stirring
5. Rotation speed and time parameters are monitored in real time via LCD display
Notice
• Application range of stirrer ≤ 20mm
• Permissible Ambient Temperature 5~ 40 ℃
• Allowable relative humidity 80%
• Max. stirring Capacity 1000ml
• Pay attention to keep the equipment clean and avoid liquid infiltration
