Overview

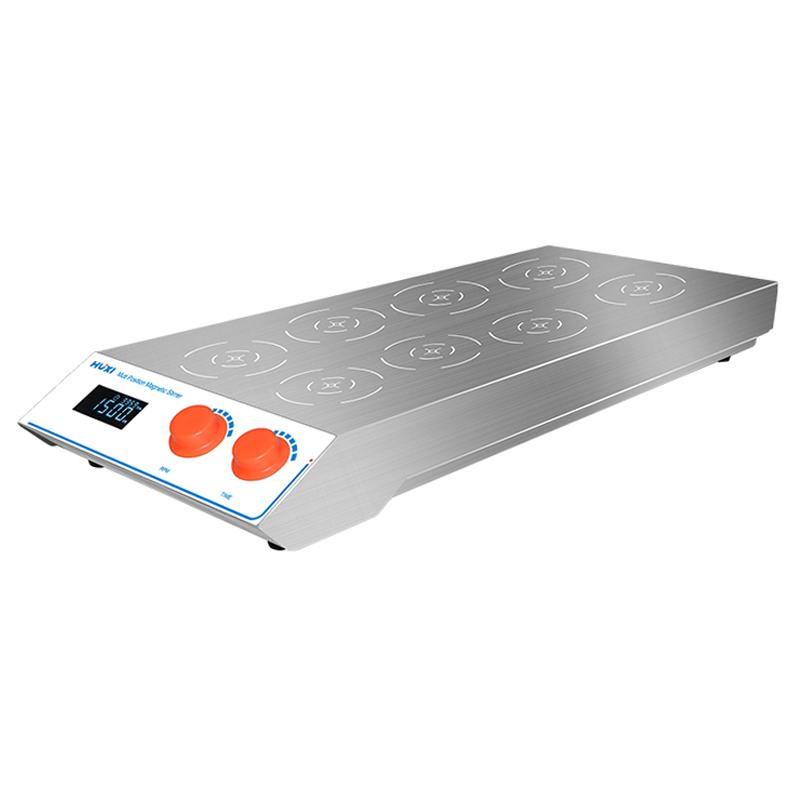

HMS-8MD synchronous control 8-station Magnetic Stirrer is commonly used to stir low-viscosity liquids or solid-liquid mixtures, and is specially designed for research and development in institutions, scientific research, environmental protection, chemical, biological, pharmaceutical and other industries.
Features
1.100~ 240V wide voltage design, wide application range
2. With time setting function, adjustable within 0~ 9999min Timer Range, high-quality anti-skid foot pads close to the test table, no gap, smooth operation
3. IP64 protection level, providing multi-directional and angular splash and waterproof protection
4. Each station 100% synchronous operation to ensure the conformity of the sample operating environment, double knob design, time Rotation speed adjustable, good start-up performance, wide speed range
5. Made of 316 stainless steel, strong and firm, excellent corrosion resistance and high temperature resistance
6. DC brushless motor drive, low noise, low maintenance, maintenance-free, long service life
7. LCD display real-time display Rotation speed and time, data intuitive, more accurate reading
8. The standard stirrer has strong magnetic force and remarkable stirring effect, and the stirring amount of a single station can reach 1000ml.
9. Rotation speed can be set to 200~ 2200rpm, even at low speed can run smoothly
Principle
The device is driven by a brushless DC motor and realizes the stirring function through the principle of magnetic coupling. Each station is equipped with a magnetic stirrer, which operates synchronously under the action of the swirl/spin magnetic field generated by the motor to ensure the conformity of the sample operating environment.
Applications
Colleges and universities, scientific research, environmental protection, chemical industry, biology, pharmaceuticals
Steps
1. Connect the 100-240V power supply
2. Rotation speed and time parameters set by double knob
3. Put the stirrer into the container to be stirred.
4. Start the equipment and start stirring
5. LCD display real-time monitoring Rotation speed and time
6. The device automatically stops after the timing ends
Notice
• Ambient Temperature should be kept within 5~ 40 ℃
• The relative humidity should not exceed 80%
• The size of the stirrer should be ≤ 20mm
• Max. stirring Capacity of 1000ml
• Noise ≤ 27dB during equipment operation
• Pay attention to keep the countertop flat and ensure that the non-slip foot pads are close to the countertop
