Overview

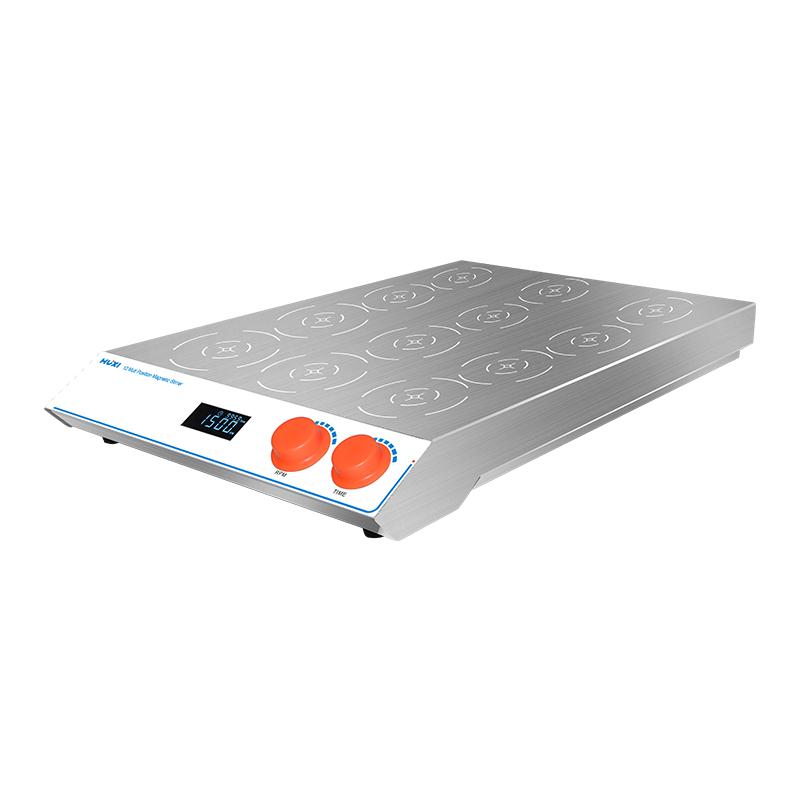

HUXI HMS-12MD synchronous control multi-station Magnetic Stirrer is an experimental equipment specially designed for universities, scientific research, environmental protection, chemical, biological, pharmaceutical and other industries. The product is rich in models to meet different experimental needs, often used to stir low viscosity liquids or solid-liquid mixtures, with 12 stations synchronous operation function.
Features
1.100~ 240V wide voltage design, wide application range
2.0-9999Min timing function is adjustable, high-quality non-slip foot pads ensure smooth operation
3. IP64 protection level, providing multi-directional splash and waterproof protection
4. 100% synchronous operation of each station to ensure sample operating environment conformity
5. Made of 316 stainless steel, excellent corrosion resistance and high temperature resistance
6. DC brushless motor drive, low noise, low maintenance, maintenance-free, long service life
7. LCD display real-time display Rotation speed and time, data intuitive and accurate
8. The standard stirrer has strong magnetic force, and the single-station stirring capacity can reach 1000ml.
9. Rotation speed 200~ 2200rpm adjustable, low speed can also run smoothly
Principle
The device adopts the principle of magnetic stirring, and generates a swirl/spin magnetic field driven by a DC brushless motor, which drives the stirrer to swirl/spin in the container to achieve liquid mixing. 12 stations use synchronous control technology to ensure that all samples run synchronously under the same Rotation speed and time conditions to ensure the conformity of the experimental conditions.
Applications
Colleges and universities, scientific research, environmental protection, chemical industry, biology, pharmaceuticals
Steps
1. Connect the 100-240V power supply
2. Place the container that needs to be stirred on the working plate
3. Put in the stirrer (applicable range ≤ 20mm)
4. Rotation speed (200-2200rpm) set by double knob
5. Set the timing time (0-9999min)
6. Start the equipment and start stirring
7. Rotation speed and time parameters monitored via LCD display
8. The device automatically stops after the timing ends
Notice
• Ambient Temperature should be kept within 5~ 40 ℃
• The relative humidity should not exceed 80%
• Make sure to use the appropriate stirrer size (≤ 20mm)
• Max. stirring Capacity of 1000ml
• Do not block the ventilating port when the equipment is running
• Pay attention to waterproof when cleaning, keep IP64 Protection Rating
• Device weight (Net weight 10kg)
