Overview

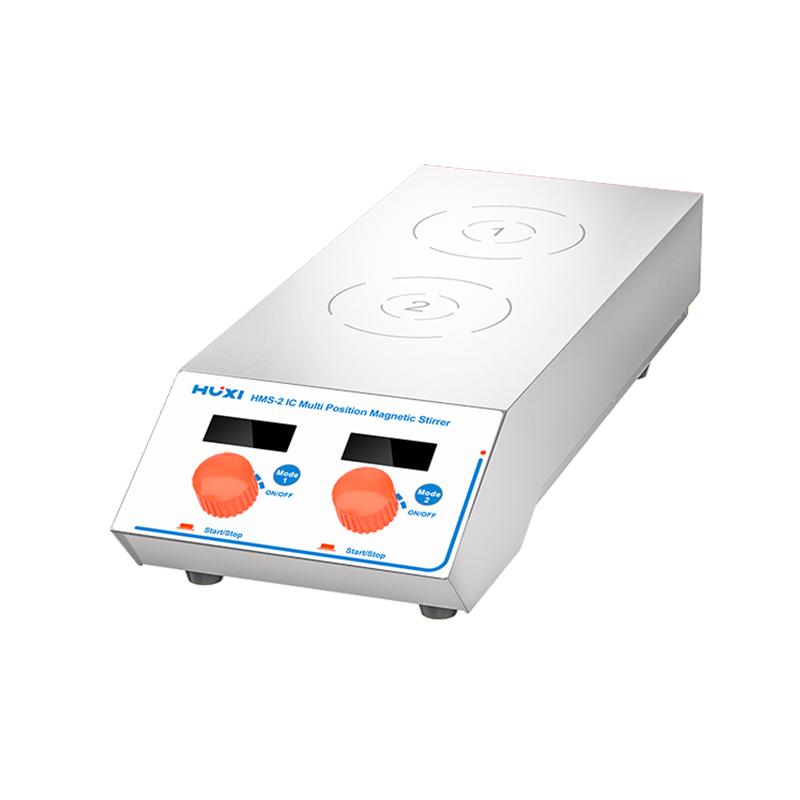

HMS-2 IC multi-station Magnetic Stirrer is a single-controlled multi-station Magnetic Stirrer of HUXI brand, with a wide range of models to meet different experimental needs. It is often used to stir low-viscosity liquids or solid-liquid mixtures, and is specially designed for institutions, scientific research, environmental protection, chemical, biological, pharmaceutical and other industries.
Features
1.100~ 240V wide voltage design, wide application range;
2. With time setting function, adjustable within 0-9999min Timer Range, high-quality anti-skid foot pads close to the test table, no gap, smooth operation;
3. IP64 protection level, providing multi-directional and angular splash and waterproof protection;
4. Each station is individually controlled, the time Rotation speed is adjustable, the starting performance is good, and the speed range is wide;
5. Made of 316 stainless steel, strong and firm, excellent corrosion resistance and high temperature resistance;
6. DC brushless motor drive, low noise, low maintenance, maintenance-free, long service life;
7. LCD display real-time display Rotation speed and time, data intuitive, more accurate reading;
8. The standard stirrer has strong magnetic force and significant stirring effect, and the single-station stirring amount can reach 1000ml;
9. Rotation speed can be set to 200~ 2200rpm, even at low speed can run smoothly.
Principle
The Magnetic Stirrer is driven by a brushless DC motor to generate a swirl/spin magnetic field, which drives the stirrer to swirl/spin in the container to achieve uniform stirring of liquid or solid-liquid mixtures. Rotation speed and time can be individually controlled at each station to ensure flexible and reliable experimental procedures.
Applications
Colleges and universities, scientific research, environmental protection, chemical industry, biology, pharmaceuticals
Steps
1. Place the equipment on a stable test table and connect it to the power supply.
2. Rotation speed and time parameters of each station are set as needed;
3. Put the stirrer into the container and place it on the working plate;
4. Start the device and monitor the running status through the LCD display.
5. After the timing ends, the device will automatically stop, or the power will be turned off manually.
Notice
• Please ensure that the Ambient Temperature is within the range of 5~ 40 ° C, and the relative humidity does not exceed 80%;
• Check that the size of the stirrer does not exceed 20mm before use to avoid affecting the stirring effect;
• Keep the countertop stable and prevent sliding when the equipment is running;
• Regularly clean the work plate and shell to keep the equipment drying;
• Avoid prolonged use in humid or splashing environments, despite IP64 Protection Rating;
• Non-professional personnel should not disassemble or repair the equipment.
