Overview

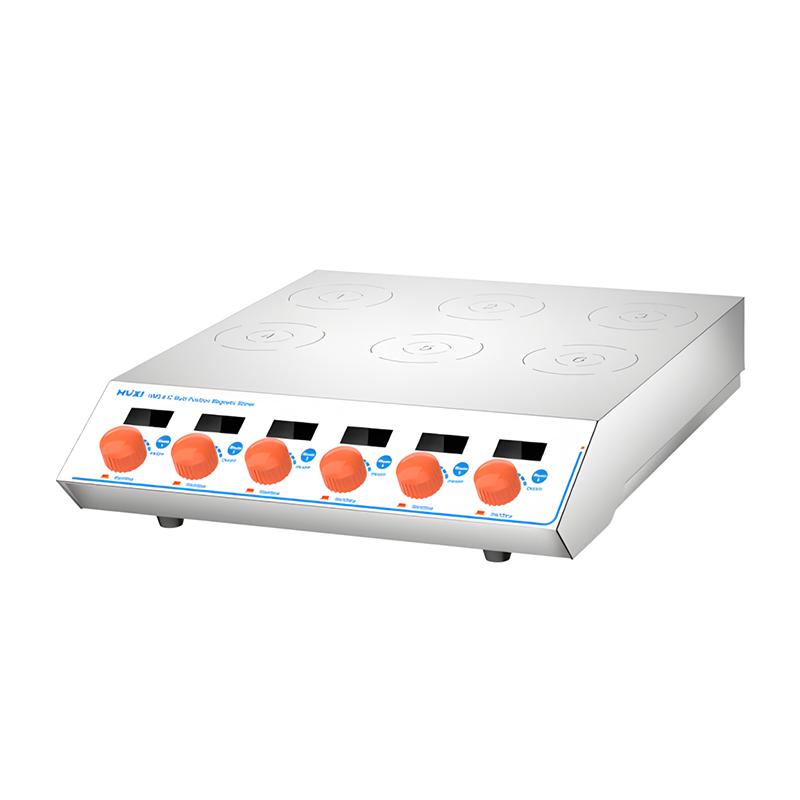

HUXI HMS-6 IC single-control multi-station Magnetic Stirrer is an experimental equipment specially designed for universities, scientific research, environmental protection, chemical, biological, pharmaceutical and other industries. It is often used to stir low-viscosity liquids or solid-liquid mixtures, and there are many product models to meet different experimental needs.
Features
1.100~ 240V wide voltage design, wide application range
2. With time setting function, adjustable within 0-9999min Timer Range, high-quality anti-skid foot pads close to the test table, no gap, smooth operation
3. IP64 protection level, providing multi-directional and angular splash and waterproof protection
4. Each station is individually controlled, the time Rotation speed is adjustable, the starting performance is good, and the speed range is wide
5. Made of 316 stainless steel, strong and firm, excellent corrosion resistance and high temperature resistance
6. DC brushless motor drive, low noise, low maintenance, maintenance-free, long service life
7. LCD display real-time display Rotation speed and time, data intuitive, more accurate reading
8. The standard stirrer has strong magnetic force and remarkable stirring effect, and the stirring amount of a single station can reach 1000ml.
9. Rotation speed can be set to 200~ 2200rpm, even at low speed can run smoothly
Principle
The device adopts the principle of magnetic stirring, and generates a swirl/spin magnetic field driven by a DC brushless motor, which drives the swirl/spin stirrer in the container to realize the stirring and mixing of the liquid. Rotation speed and time parameters can be individually controlled at each station to ensure the accurate and controllable stirring process.
Applications
Colleges and universities, scientific research, environmental protection, chemical industry, biology, pharmaceuticals
Steps
1. Place the equipment on a stable experimental surface
2. Connect the power supply (100-240V)
3. Put the stirrer in the container and add the liquid to be stirred
4. Rotation speed of each station is set by knob (200-2200rpm)
5. Set the timing time (0-9999min)
6. Start the equipment and start stirring
7. Rotation speed and time parameters monitored via LCD display
Notice
• Equipment Ambient Temperature should be within the range of 5~ 40 ℃
• relative humidity should not exceed 80%
• The size of the stirrer should be ≤ 20mm
• Max. stirring Capacity of 1000ml
• Make sure that the equipment is placed on a smooth countertop, and the non-slip foot pads are close to the countertop without gaps
• Pay attention to IP64 Protection Rating to avoid use beyond the scope of splash and waterproof protection
