Overview

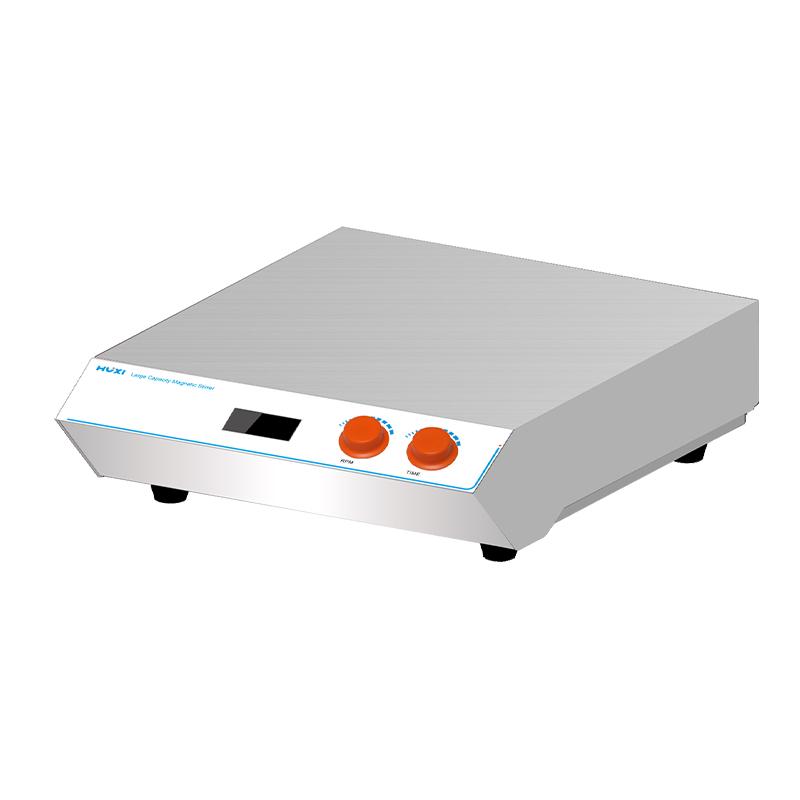

HMS-120 large capacity Magnetic Stirrer adopts the design of driving and stirring, small footprint, easy and simple operation, suitable for chemical analysis, biological Reagent mixing, liquid treatment and other fields.
Features
1. Humanized waterproof design, improving the safety of experimental operation, large countertop, easy to carry larger sample containers;
2. LCD digital display real-time display Rotation speed and time, real-time observation of experimental data, brushless motor, long life, maintenance-free, long-term operation;
3. Multiple stirring capacities are available to meet the processing requirements of samples in different experiments.
4. Simple knob design, can control Rotation speed, turn to the left end is closed, stepless speed adjustment mode, running without setbacks, saving time and effort, easy to get;
5. Fully enclosed stainless steel shell, the structure is strong and not easy to deform, enough to withstand the weight of the maximum mixing capacity.
Principle
The Magnetic Stirrer drives the magnetic stirrer swirl/spin through a brushless motor to realize the function of liquid mixing and stirring. The stirring speed is controlled by the stepless speed regulation of the knob, and the LCD display monitors the Rotation speed and time parameters in real time.
Applications
Chemical Analysis, Reagent Mixing, Liquid Treatment
Steps
1. Place the Stirrer on a stable work surface.
2. Place the sample container that needs to be stirred on the work surface.
3. Place the magnetic stirrer into the sample container.
4. Rotation speed of swirl/spin knob;
5. Rotation speed and time data are observed in real time through the LCD display;
6. After use, turn the knob to the left to turn off the device.
Notice
• Before use, make sure that the Ambient Temperature is within the range of 5~ 35 ℃
• Operating Environment relative humidity should not exceed 80%
• Do not exceed the maximum mixing capacity of 120L
• Power supply voltage within 110~ 220V range
Equipment should be placed on a stable work surface for use
• Regularly clean stainless steel enclosures and worktops
