Overview

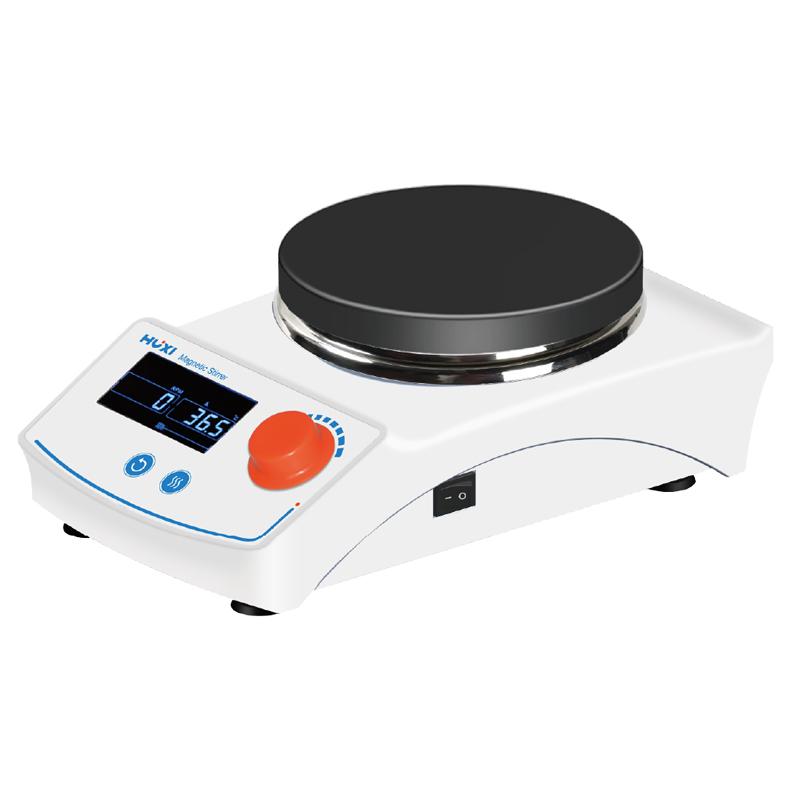

Heating Magnetic Stirrer 206 and 208 series are specially designed for Applications with higher requirements for Processing capacity, temperature, and Power. The upgraded heating Magnetic Stirrer has better performance, stronger functions, and a wider range of applications. It is suitable for stirring or heating at the same time, and the viscosity is not very large. Liquid or solid-liquid mixture.
Features
1. Aluminum die casting ceramic coating work plate abrasion resistance, corrosion resistance, high temperature oxidation resistance
2. Wide Temperature range, HMS-206 series maximum temperature can reach 350 ℃, heating function is controlled separately, and the button is highlighted after heating is turned on
3. Internal and external temperature sensor PT1000, can precisely control the temperature accuracy to +/- 0.2 ℃
4. The LCD LCD display is equipped with a backlight design, which is convenient for setting and monitoring data during operation
5. LCD display real-time display of temperature, Rotation speed and running time
6. With time setting function, can be set to 0~ 99h59min
7. DC brushless motor, low noise, low maintenance, smooth operation, long service life
8. Dual heating control circuit, when a heating circuit fails, it can continue to maintain temperature stability
9. The knob has the function of running lock and anti-misoperation to prevent accidental change of running state
10. Pressed aluminum sealing insulation shell effectively prevents liquid and gas from entering the inside of the instrument and protects circuit components from corrosion
Principle
The heating type Magnetic Stirrer realizes the stirring function by magnetically driving the stirrer to swirl/spin in the container, and at the same time heats the working plate through the heating tube, and cooperates with the internal and external temperature sensor PT1000 to precisely control the temperature to realize the synchronous or independent operation of stirring and heating.
Applications
Laboratory, Chemical experiment, Biological experiment, Pharmaceutical, Food processing, Material science
Standards
220V Power supply voltage, 50~ 60Hz Rated Frequency
Steps
Step 1 Power on
2. Set the required temperature
3. Set stirring speed
4. Set the running time (optional)
5. Start heating and stirring function
6. Monitor the temperature, Rotation speed and running time on the LCD display
7. Turn off the device after the experiment is completed
Notice
• Only for liquids or solid-liquid mixtures with low viscosity consistency
• Ensure that the Working Ambient Temperature is within the range of 5~ 40 ℃ before use
• Ensure that the relative humidity of the environment does not exceed 80% before use
• Note that the overtemperature protection temperature is ≤ 420 ° C
• The applicable range of the stirrer is 20-80mm
• Max. Capacity of stirring 20L
• Pay attention to the knob locking function when operating to prevent misoperation
