Overview

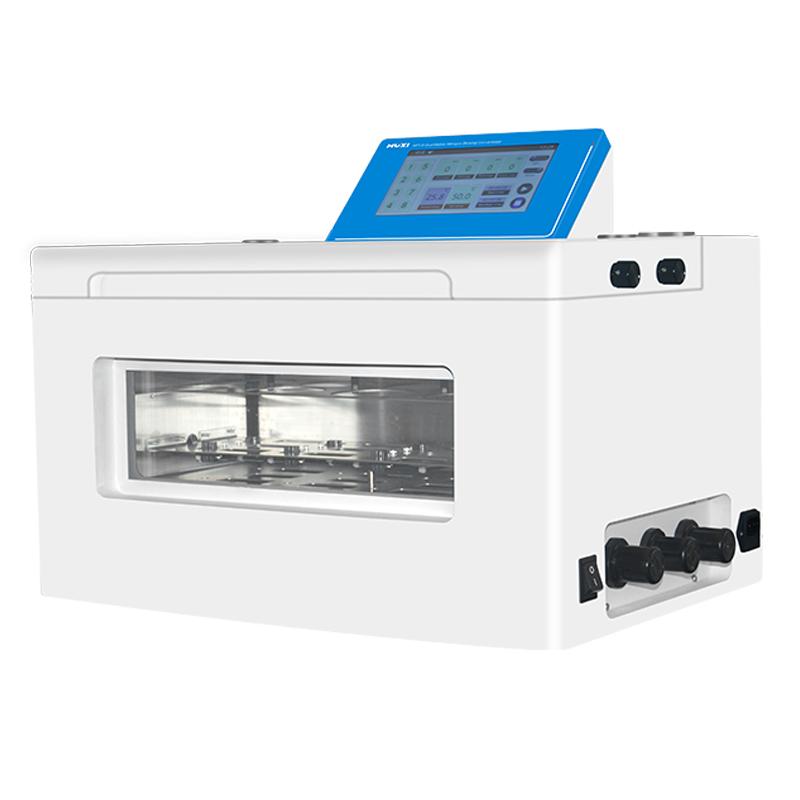

The fully automatic Basis Weight nitrogen blow condenser HPT-8 is a professional equipment of the HUXI brand. It is mainly used to condense the extracted pesticide residue solution to increase the concentration for subsequent purification or detection. The instrument realizes efficient condensation through nitrogen purge and Heating mode to avoid pesticide loss that may be caused by the use of distillation method. It is especially suitable for Sample Handling that cannot be evaporated.
Features
1. The nitrogen purge channel is independently controlled to ensure accurate operation.
2. Double blowing needle mode, can automatically switch the blowing angle according to the liquid level to improve the condensing efficiency.
3. Automatic Basis Weight mode, automatically stop after reaching the preset condensed volume.
4. 1-8 samples can be processed at the same time, and the nitrogen blowing and water bath Heating mode are used to quickly condense.
5.7-Inch LCD Touchscreen intelligent graphical interface, real-time display of temperature, pressure, time and other parameters.
6. Unique double blowing needle design, first oblique blowing vortex blowing, and then automatically switch the direct blowing mode to speed up.

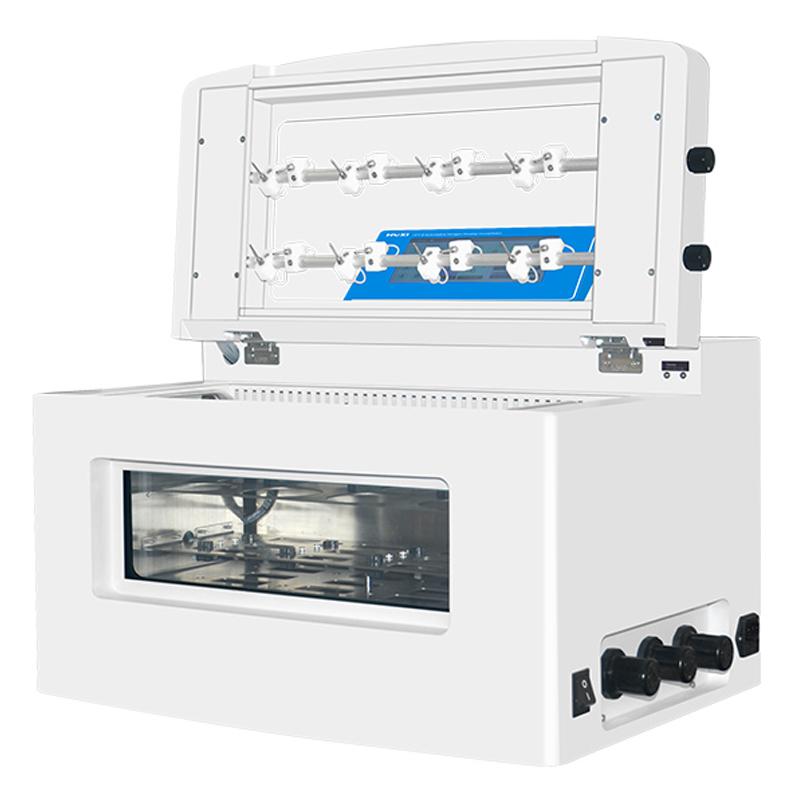

7. Open the lid and hover design to facilitate safe sampling.
8. Built-in exhaust system, no need to occupy the fume cupboard space.
9. Support corrosion resistant coating customization, such as Teflon coating, adapt to special Reagent environment.
Principle
The automatic Basis Weight nitrogen blow condenser uses the rapid flow of nitrogen to break the gas-liquid equilibrate over the liquid and accelerate the evaporation of the liquid; at the same time, it increases the temperature through water bath heating to promote the condensing process. As an inactive gas, nitrogen can also isolate oxygen, prevent sample oxidation, and ensure the accuracy of pesticide residue analysis.
Applications
Pesticide residue analysis, environment analysis, food and beverage, biological analysis, pharmaceutical drug testing
Steps
1. Select the operation mode: Timing mode, Basis Weight mode or Steam dry mode.
2. Set parameters: Adjust temperature, pressure and time through 7-inch Touchscreen.
3. Place samples: Place samples in a water bath, up to 8.
4. Start condensing: The instrument automatically performs nitrogen blowing and heating condensing.
5. Monitoring process: real-time observation of screen display parameters.
6. Automatic stop: After reaching the preset volume or time, the instrument automatically stops and sounds an alarm.
7. Sampling: Use the open lid hover function for safe sampling.
Notice
• Do not steam dry the solvent to prevent pesticide loss.
• Ensure that the external supply nitrogen pressure does not exceed 80Psi.
• When operating, pay attention to the temperature control range from room temperature to 90 ° C.
• Regularly check whether the air nozzle can be removed and replaced.
• Confirm that the overheat protection device is normal before use.
• Avoid operating in a non-ventilated environment, the instrument has a built-in exhaust system but still needs to pay attention to safety.
• When customizing corrosion resistant coatings, ensure compliance with laboratory requirements.
