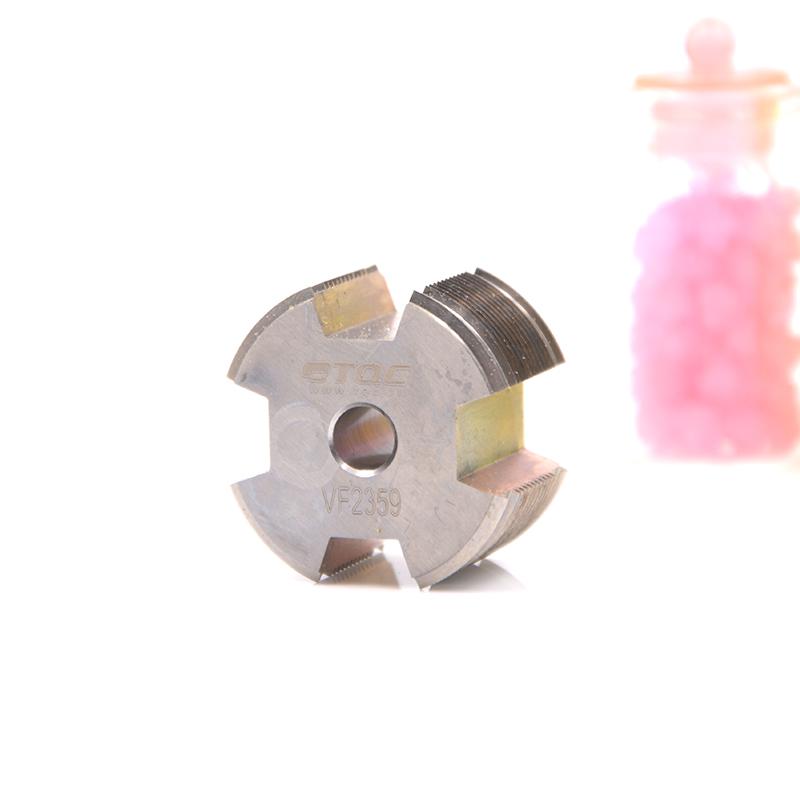

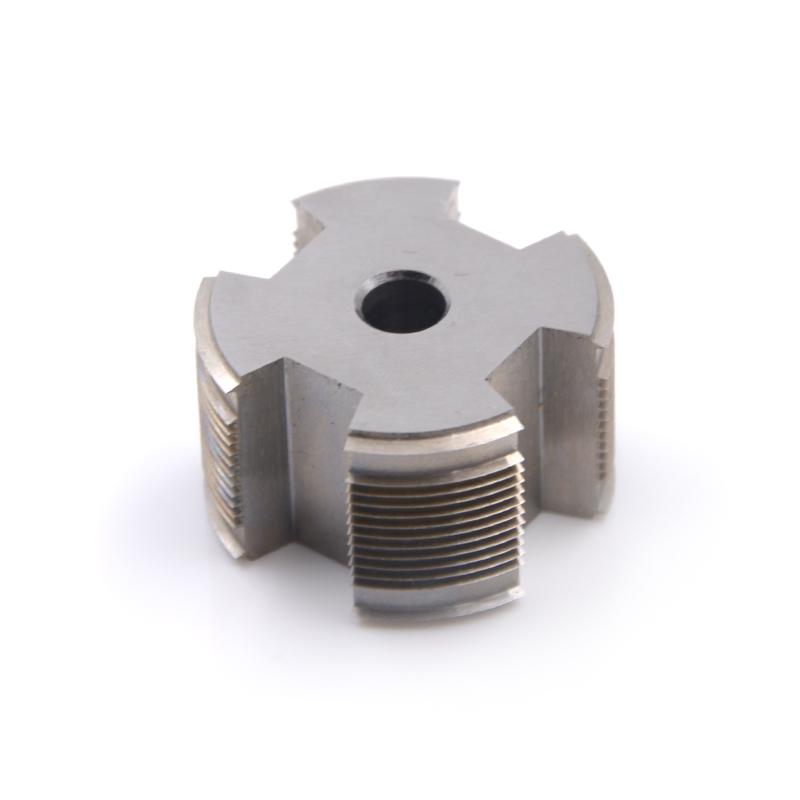

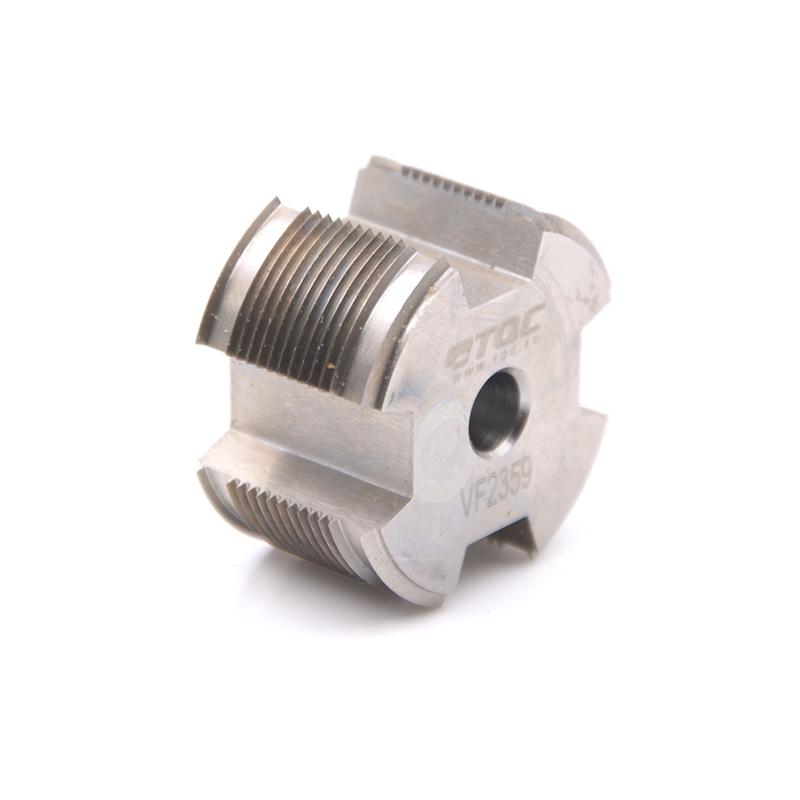

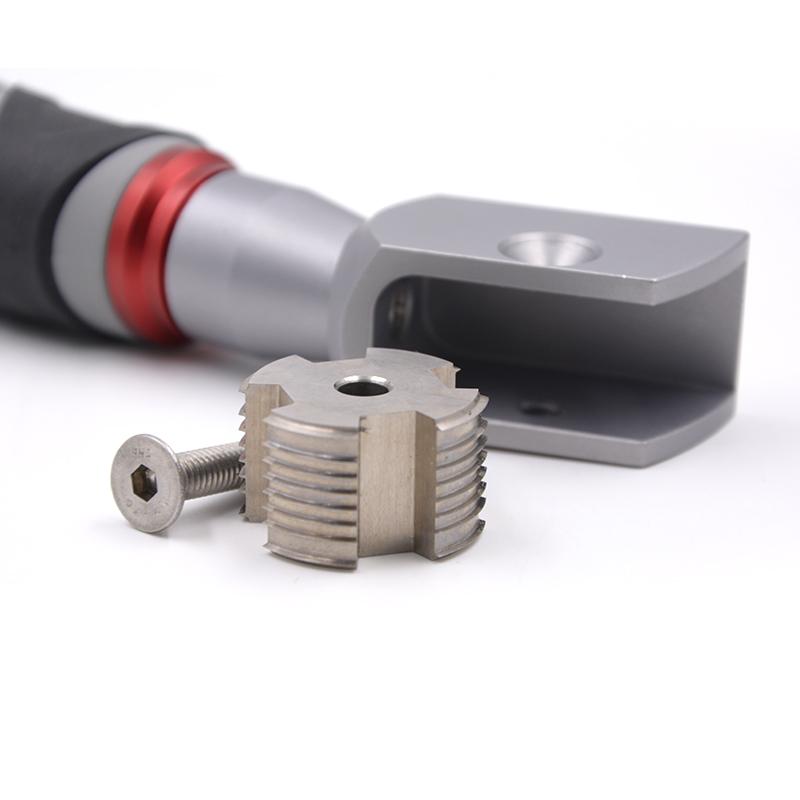

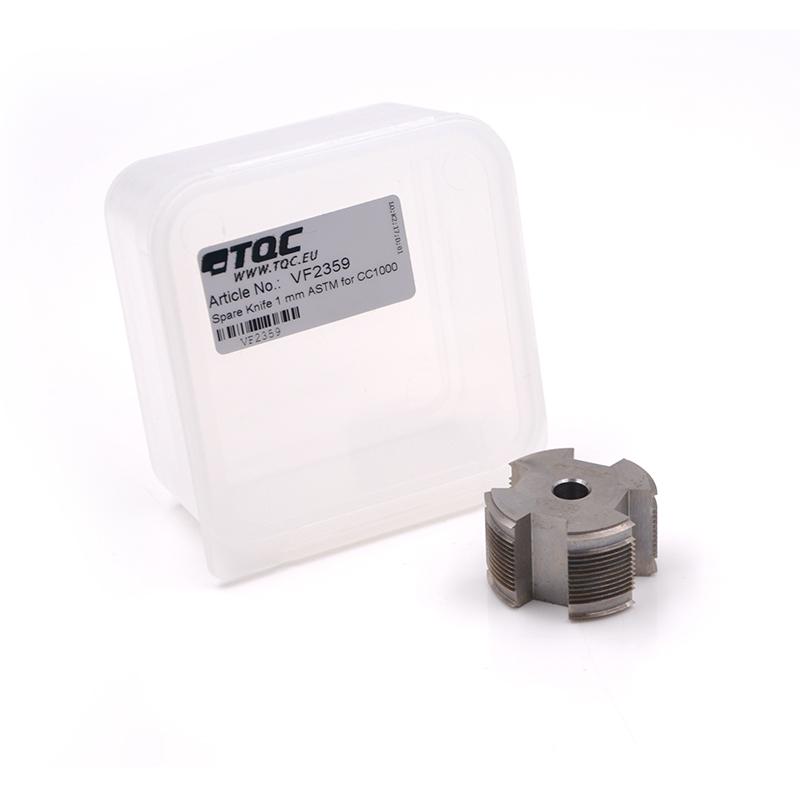

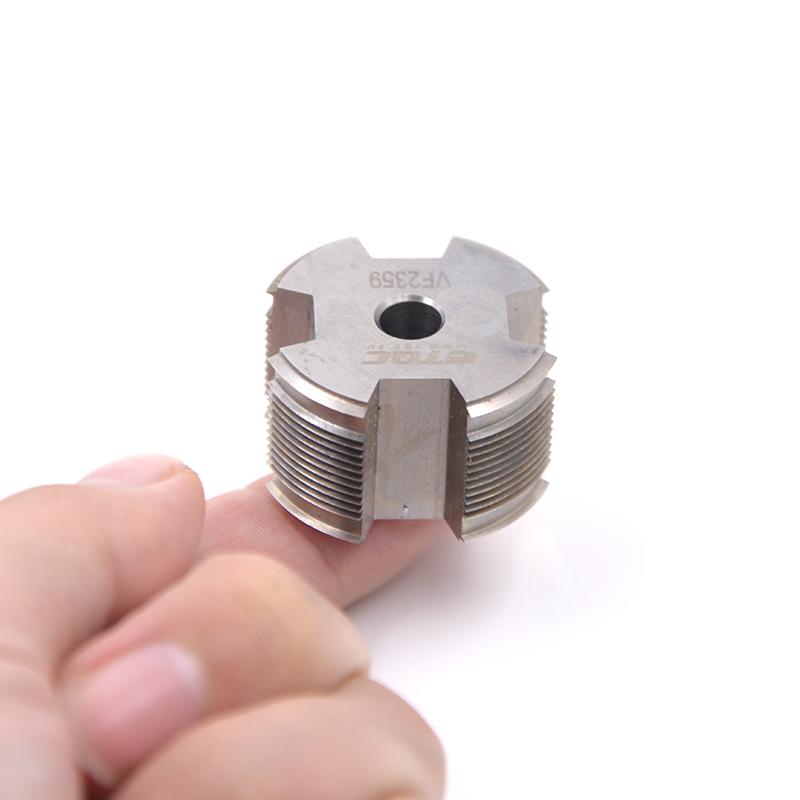

TQC sheen VF2359 cross-cutting blade 11 teeth 1mm pitch round face cutter

Name: TQC sheen VF2359 cross-cutting blade 11 teeth 1mm pitch round face cutter
Brand: TQC sheen
SKU: NB004662
Price: 855.0 USD
Availability: InStock

$ 855.00Ex works

Round cutter design with eight incisions, longer service life; 11 teeth 1mm spacing configuration, suitable for 0-60 micron Coating thickness of soft substrate adhesion testing.

Model

VF2359

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : TQC sheen

SKU : NB004662

Service :The delivery and service By NBCLab.Com

Overview

The TQC sheen VF2359 cross-cut blade is a precision tool designed for coating adhesion testing. It is designed with a round cutter with eight cuts for extended service life. The blade is suitable for soft substrates with a Coating thickness of less than 60 microns and meets ASTM D3359 standards.

Features

1. The round cutter is designed with eight incisions for a longer service life 2. The knife tooth spacing is 1mm, and the number of knife teeth is 11 teeth 3. Coating thickness of less than 60 microns soft substrate design 4. Compliant with ASTM D3359 standard requirements

Principle

The cross-cut blade cuts a standardized grid pattern on the coating surface with precise tooth spacing to evaluate the adhesion performance between the coating and the substrate. The circular design of the blade and multiple cuts ensure a stable and durable cutting process.

Applications

Coating adhesion testing, mass testing, laboratory analysis

Standards

ASTM D3359

Notice

• The 100-grid blade is sharp, so pay attention to safety when using it. • Please use Encasement box storage knife

Number of teeth
11 teeth
Tooth spacing
1mm
application standard
ASTM D3359
Applicable film thickness environment
0~ 60µm (soft substrate)
Dimension
The round face cutter has eight incisions for a longer service life
