Overview

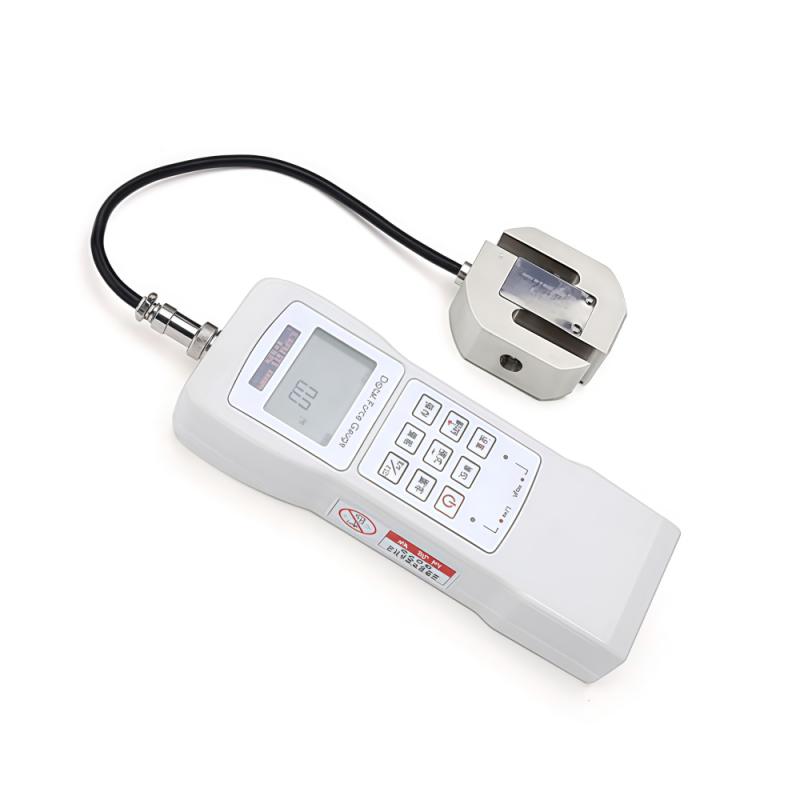

HBO HG-10K Digital Display Force Gauge is a Portable Digital Display Force Gauge with a Maximum Measured value of 10KN and a Load Graduation of 0.005KN. It features High Accuracy, High Resolution and High Stability. It uses a segmented LCD display with a green backlight screen and supports multiple unit interchangeability and test direction display.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ

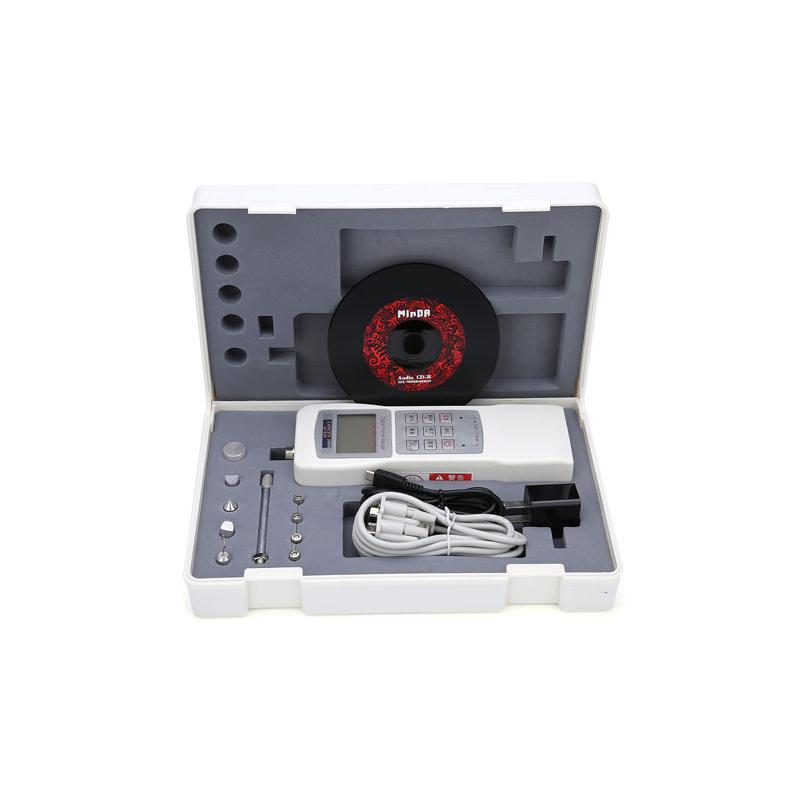

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle

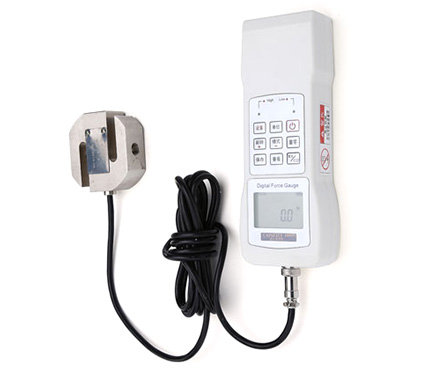

HG-10K Digital Display Force Gauge performs force value measurement through external Sensor structure, adopts ADC conversion technology, conversion speed range is 15Hz~ 480Hz, and realizes High Accuracy data collection. It supports real-time force value tracking, peak holding and first peak mode, and performs qualified judgment by setting upper and lower limit comparison values, and outputs sound alarm and level signals.
Applications
Industrial Testing, quality control, Materials Testing, Product Research & Development
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps

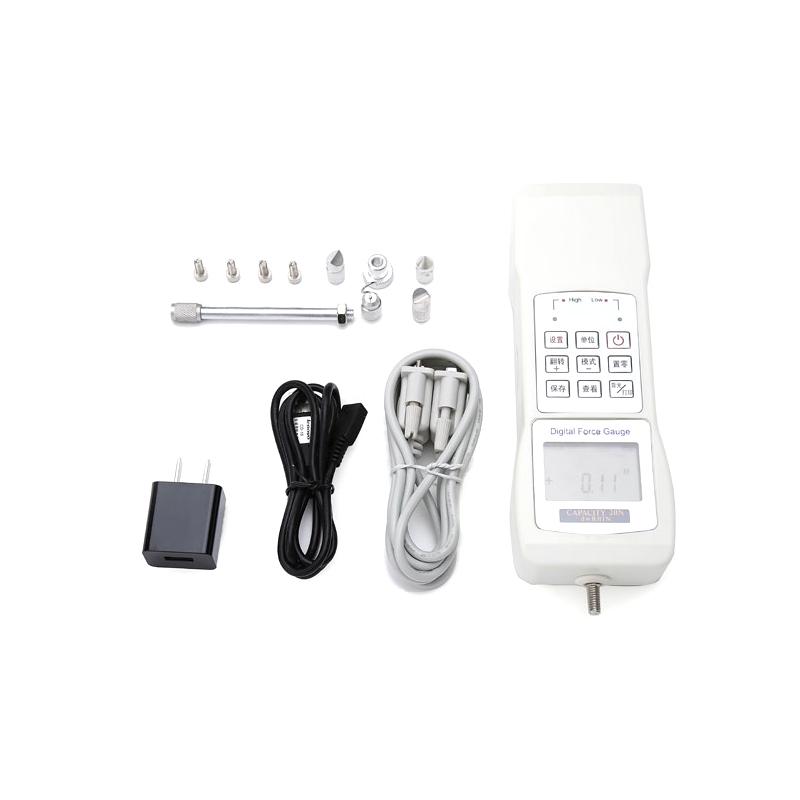

1. Connecting Contact Rod and Power Adapter
2. Turn it on and set parameters such as unit, test mode, upper and lower limits, etc
3. Perform a force test and observe the display data
4. Judge the test results according to the indicator light (upper or lower limit alarm)
5. Store or export test data
6. Shut down after use or set automatic shutdown
Notice
• Operating temperature in the range of 0~ 40 ℃
• Storage temperature should be kept at -20~ 70 ° C
• relative humidity control at 15%~ 80% RH
• The surrounding environment should be free of vibration and corrosion medium
• Use a special charger to charge to avoid overcharging
• Pay attention to the status of the upper and lower limit indicators and deal with the alarm in time
• Use EVA Shockproof Encasement for Transportation and Storage
