Overview

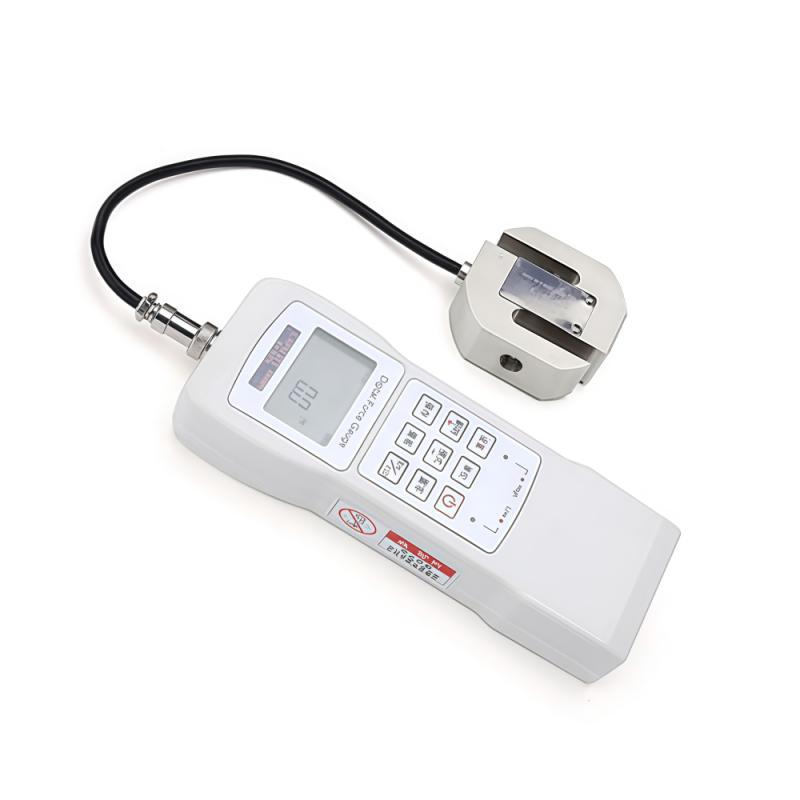

HG-20K Digital Display Force Gauge is a Hypertherm HG series product with a maximum Measured value of 20KN and a load Graduation of 0.01KN. The device adopts an external Sensor structure, which is suitable for application scenarios such as push-pull load test, plug-in force test and failure test of various products.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ

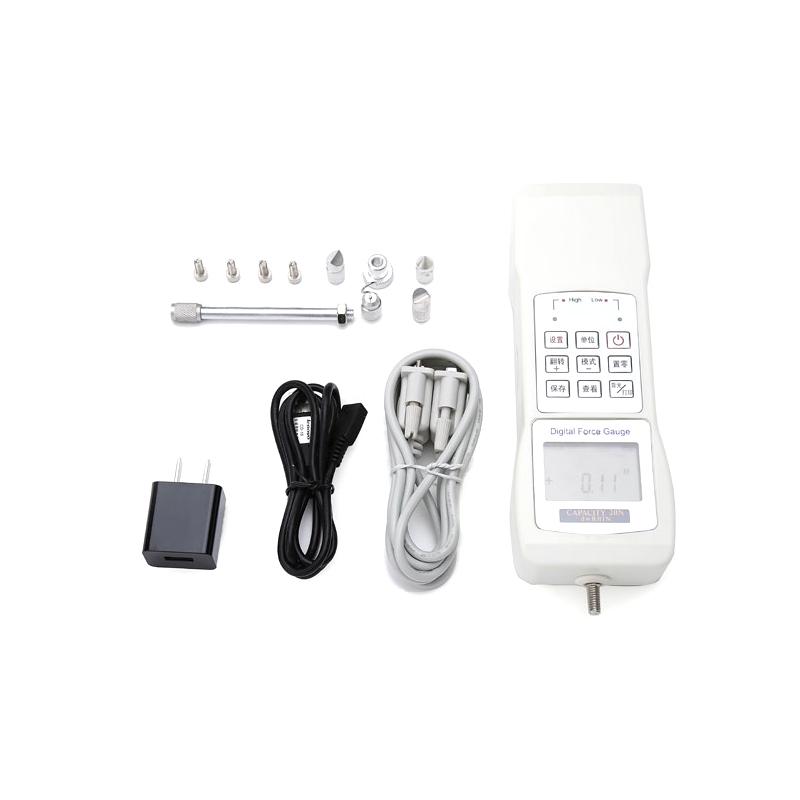

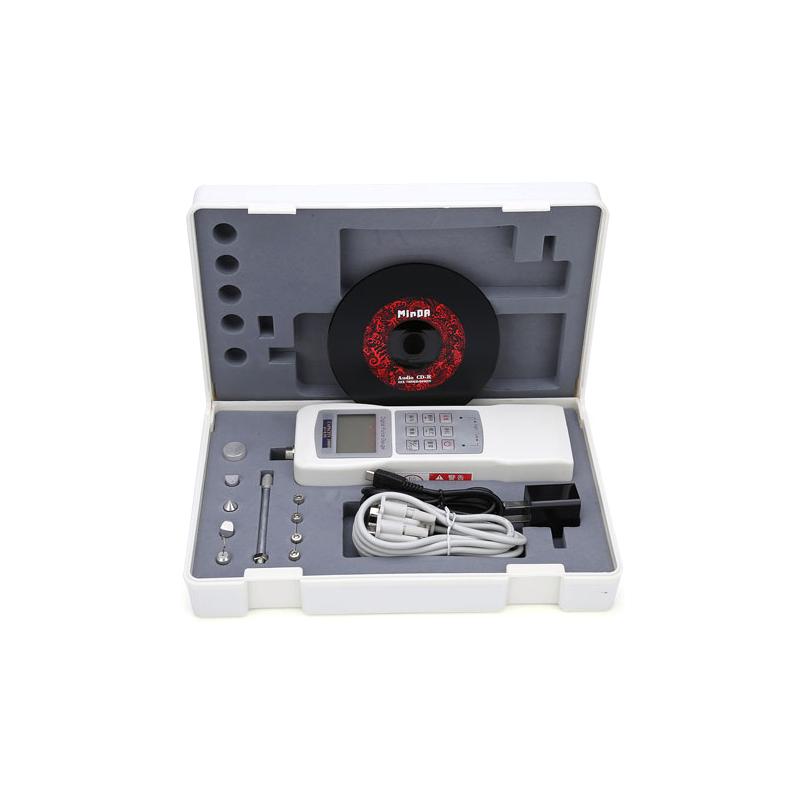

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to transport and store
3. Segment LCD display with green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display function (pull +, thrust -)
6. Three test modes: real-time force tracking, peak holding, and first peak mode
7. Can set the upper and lower limit comparison value for qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. The automatic shutdown time without operation can be set (0~ 99 minutes)
12. With range sound alarm and mechanical limit protection
13. Adopt smart charging technology to charge safely and extend Battery life
14. With the electric testing device, it can realize the functions of stop after destruction, stop the preset force value, fatigue test and so on

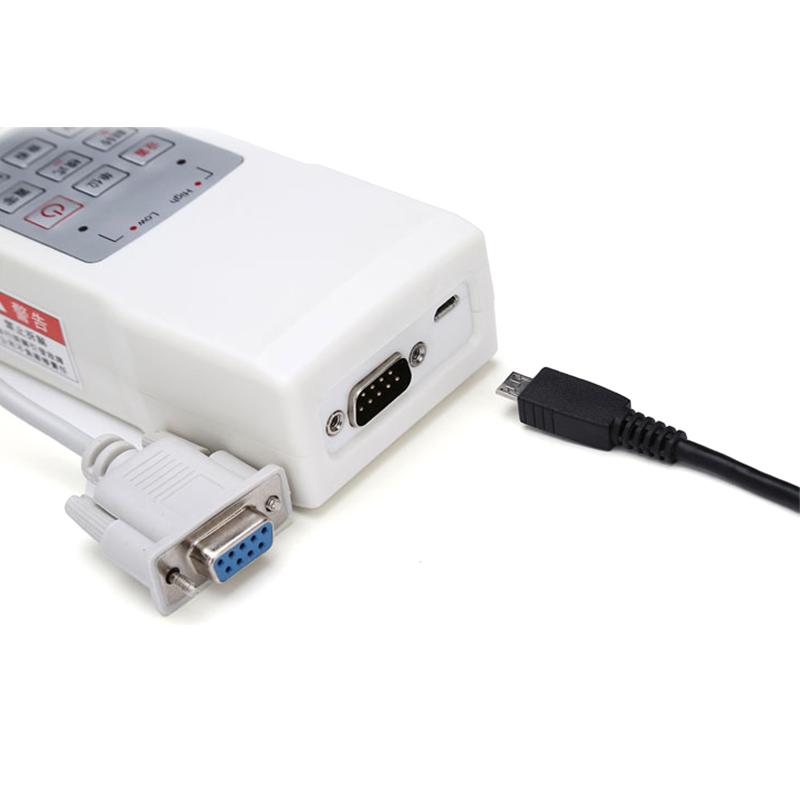

15. The host computer software is Chinese WINDOWS interface
16. Test results support multiple coordinate Linear dispersion display
17. Qualification judgment function can perform batch inspection qualification rate analysis according to the preset Standard value
18. Test data and Linear dispersion are automatically stored to the computer in unlimited quantities
19. Test data can be queried and exported in excel format
20. Test reports can be prepared and printed according to user requirements
Principle
The digital display Force Gauge collects the force signal through the external Sensor, converts it by ADC and performs data processing by the microprocessor. The device has three test modes: real-time force tracking, peak holding and first peak. It can automatically pass the judgment by setting the upper and lower limits, and is equipped with sound alarm and level signal output functions.
Applications
Push-pull load test, insertion force test, failure test
Standards
Precision grade 0.5
Steps
1. Connect the Power Adapter or use the built-in lithium battery for power supply
2. Select the test mode and unit by pressing the button
3. Set the upper and lower limit comparison value and peak hold time
4. Perform push-pull load test operation
5. Observe the display window data and indicator light status
6. Store test data and export analysis reports
Notice
• Operating temperature range should be maintained at 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• relative humidity should be controlled at 15%~ 80% RH
• Should be used in non-vibration and corrosion medium environment
• Pay attention to the status of the upper and lower limit alarm indicators
• Regularly charge and maintain the equipment
• Charge with the matching charger (AC input 220V/50HZ, DC output 5V/1A)
