Overview

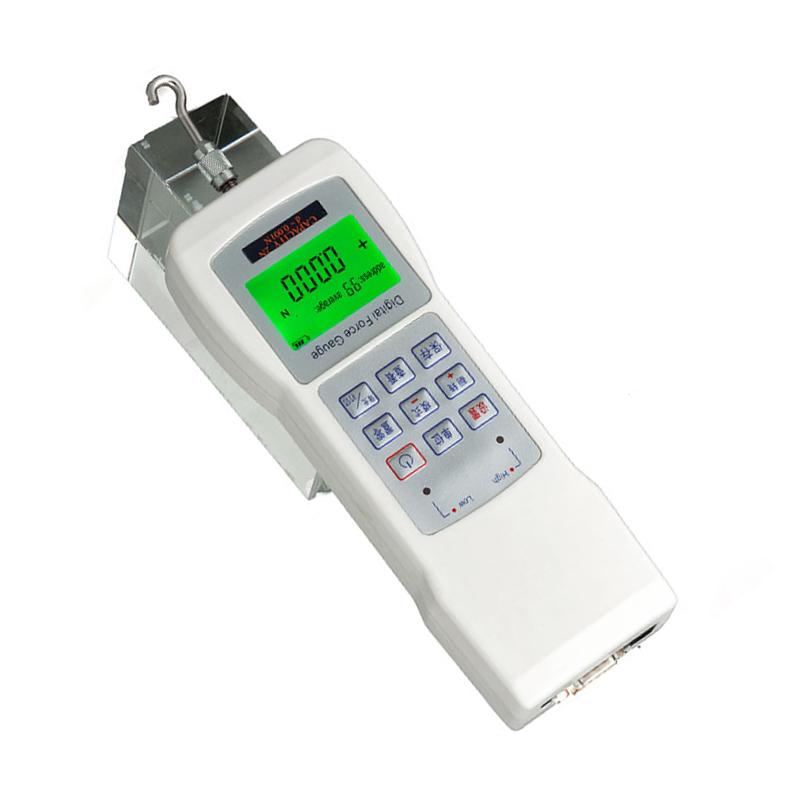

Hypertherm HG-2 digital tension meter is a Portable digital tension meter with a maximum load value of 2N and a load Graduation of 0.001N. It uses a segment LCD screen with green backlight function and supports free interchangeability of N, kgf and lbf units.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry

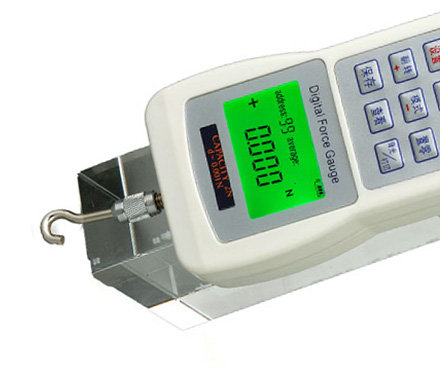

3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
Hypertherm HG-2 digital tension meter detects the force value through the built-in Sensor structure, uses ADC conversion technology to convert analog signals into digital signals, and the sampling speed can reach 15Hz~ 480Hz. The test value is displayed in real time through the segment LCD screen, supports a variety of test modes and unit conversion, and combines intelligent algorithms to realize Data storage, analysis and alarm functions.
Applications
Material testing, product mass testing, fatigue testing, force value measurement
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connection contact connecting rod
2. Select the test unit (N, kgf, lbf, etc.)
3. Set the test mode (real-time force tracking, peak holding, first peak)
4. Set the upper and lower limit comparison value and peak hold time
5. Start the test and observe the display readings
6. Store test data or export to a computer
7. Charge in time after use
Notice
• When the battery level shows very small, charge it in time.
• When the battery is empty, the device will automatically shut down.
• Operating temperature range 0~ 40 ℃
• Storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15%~ 80% RH
• The surrounding environment should be free of vibration and corrosion medium
• Charge with a special charger, input AC 220V/50HZ, output DC 5V/1A
