Overview

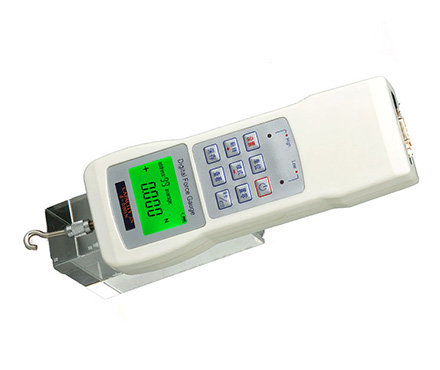

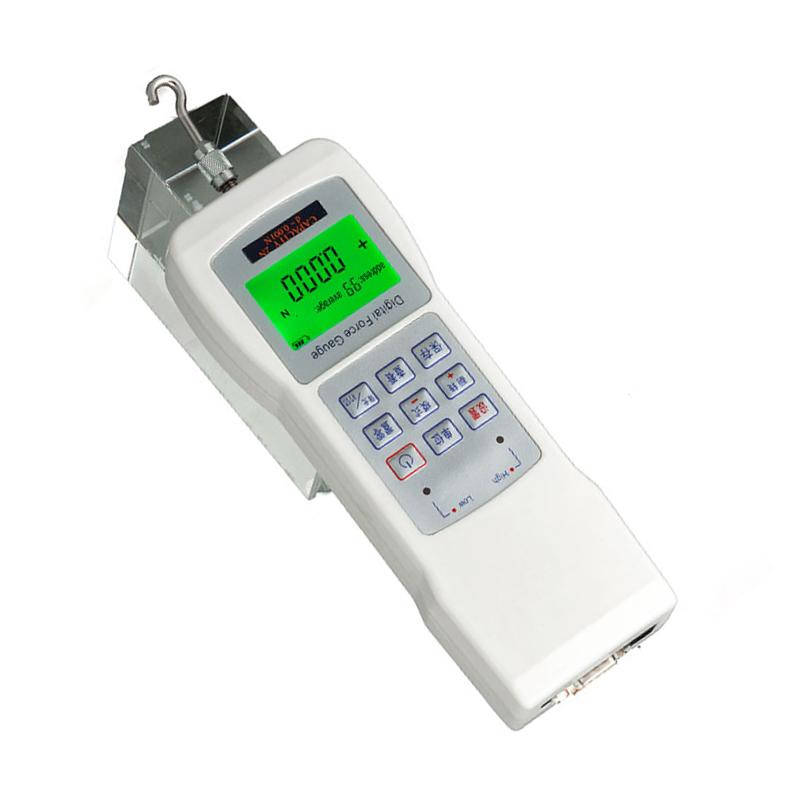

Hypertherm HG-5 Force Gauge is a Portable small digital display Force Gauge with a maximum load value of 5N and a load Graduation of 0.001N. Designed with a built-in Sensor, it has peak hold, automatic peak release, and can set gravity acceleration. It is an intelligent High Accuracy measurement tool.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, easy to transport, store and carry
3. Segment LCD with green backlight
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (0~ 99 minutes)
12. Limit protection: range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging Extends Battery life
14. Cooperate with the electric testing device to realize the functions of stop after destruction, stop the preset force value, fatigue test and so on
15. Host computer software: Chinese WINDOWS interface
16. Linear dispersion display of test results: real-time force value-time, peak force value-number, first peak-number
17. Qualification judgment: Automatically judge the qualification rate according to the preset Standard value
18. Automatic storage: Linear dispersion of test data and unlimited storage to the computer
19. Test data can be queried and exported in excel format
20. Test reports can be prepared and printed according to user requirements
Principle
The HG-5 Force Gauge detects the push-pull force in real time through the built-in Sensor, converts the force value into an electrical signal, and displays it on the digital display screen after conversion by the ADC. It supports a variety of Operating Modes, such as real-time tracking, peak holding and first peak mode, and can compare data and alarm output by setting upper and lower limits.
Applications
Industrial testing, quality control, material testing, Product Research & Development, fatigue testing
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connect the contact rod and the object under test
2. Turn on the power, select the desired unit and Operating Mode
3. Perform a push-pull test and observe the display window reading
4. Use the button to set the peak holding time, upper and lower limits and other parameters

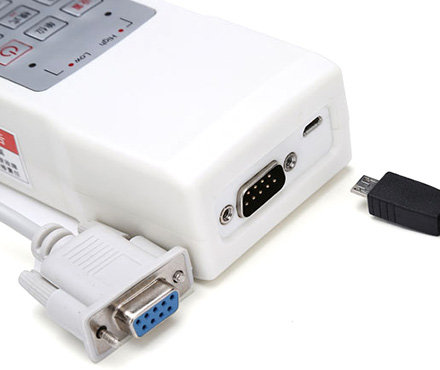

5. Data is automatically stored or exported via Communication interface
6. Turn off the power or set the automatic shutdown after the test is completed
Notice
• Charge in time when the battery is low, and automatically shut down when the battery is exhausted
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15%~ 80% RH
• Ensure that there is no vibration and corrosion medium around
• Use the original charger, input AC 220V/50HZ, output DC 5V/1A
• Avoid over-range use and pay attention to the limit protection function
