Overview

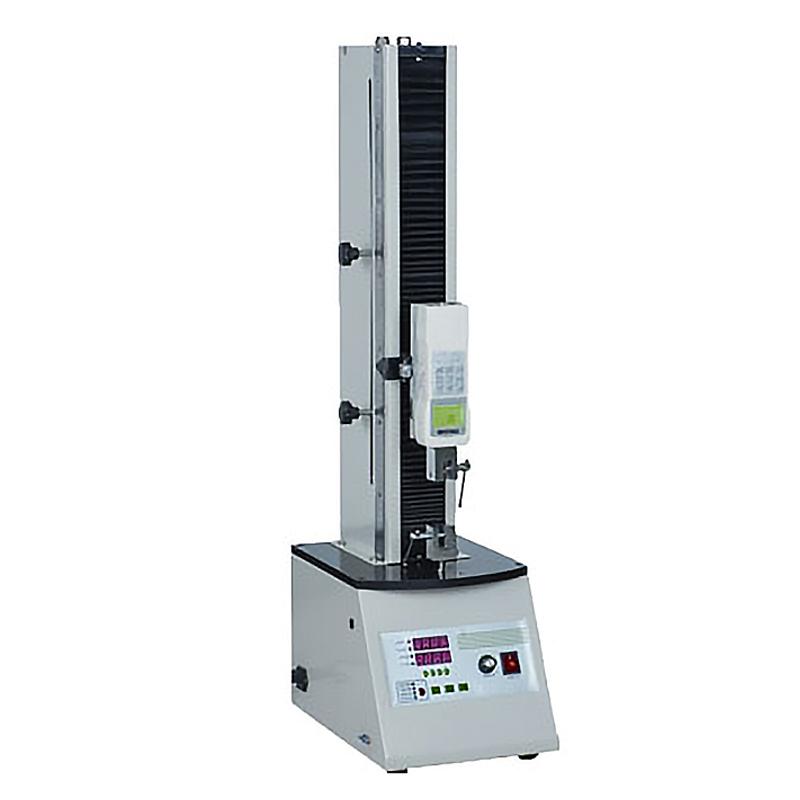

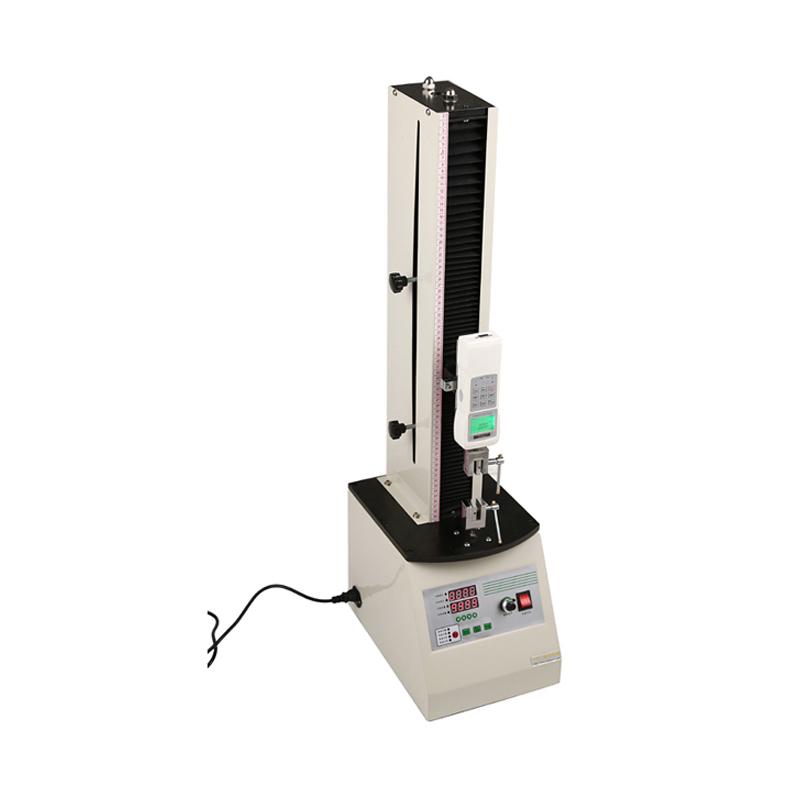

Hypertherm HDE-1K electric single-column vertical machine is a test equipment suitable for HF/HG/NK series Force Gauge under 1KN load. The machine adopts a low-noise stepless speed regulating motor with a force holding mode, which can be freely set to the specified position or set the force value holding time. Adopts a built-in double-column structure, which has the characteristics of good Stability and wide application range.
Features
1. Digital tube screen display
2. Four test modes: automatic counting mode, automatic timing mode, manual counting mode, manual timing mode
3. Test speed adjustable (stepless speed regulation)
4. Timing and counting round-trip test
5. It can be pointed and operated automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test
6. The pause time during the sample batch test can be set, and the sample clamping time can be customized
7. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
8. Force holding function: Loading force holding time can be freely set
9. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
10. Pull and break and stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
11. Equipped with limit protection device, leakage protection device
12. Optional micro printer, matching the company's corresponding digital display Force Gauge, can print test data
Principle
The HDE-1K electric single-column vertical machine is driven by a low-noise stepless speed regulation motor and adopts a built-in double-column structure to achieve stable operation. The equipment can push and pull load test the sample by electric loading according to the set force value, time, frequency and other parameters, and has the functions of force holding and round-trip motion.
Applications
Building doors and windows, power machinery, auto parts, composites, rubber plastics, light industry Spinning & weaving, Wires and cables, scientific research institutions
Steps
1. Equipped with the required model Force Gauge

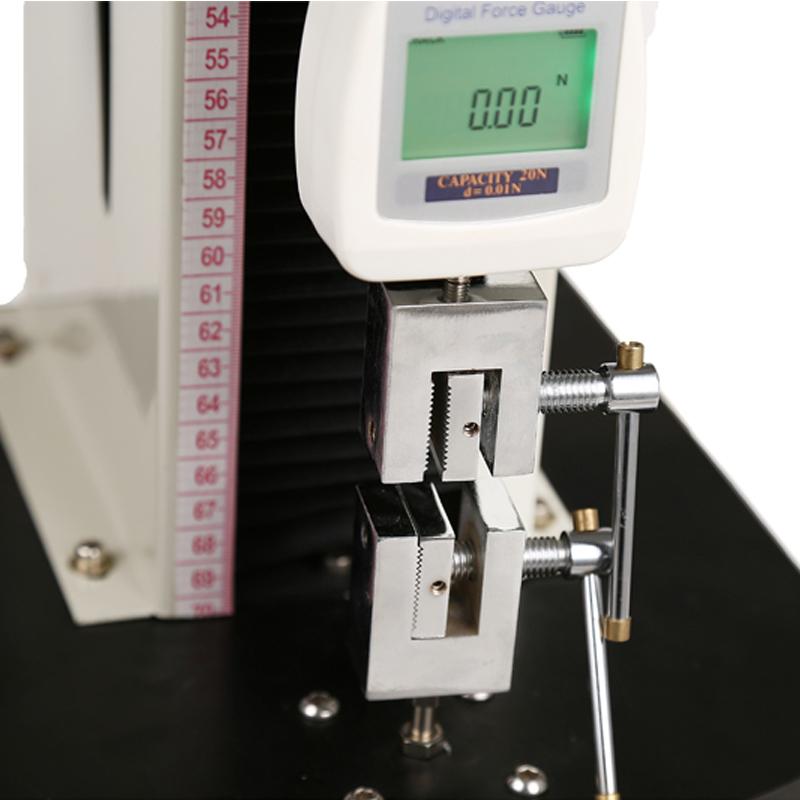

2. Install the tension gauge and HDE-1K electric single column vertical machine fixture
3. Fix both ends of the specimen and fixture
4. Travel limit protection switch
5. Turn on the total power supply of the machine and the power supply of the tension meter, and set the functional parameters of the whole set of tension equipment
6. Press the forward or backward button, and the work has officially started at this point
7. After the work is completed, press the forward or backward button to return the machine to its original initial state
Notice
• HDE series electric single-column vertical machine can be customized heightening type, please consult customer service for specific price and delivery time.
• Travel limit protection switch should be adjusted before use
• Press the stop button in any state to stop the motor movement, and often press more than 3 seconds to return the current number of movements to zero
• After the work is completed, the machine needs to be returned to its original initial state
