Overview

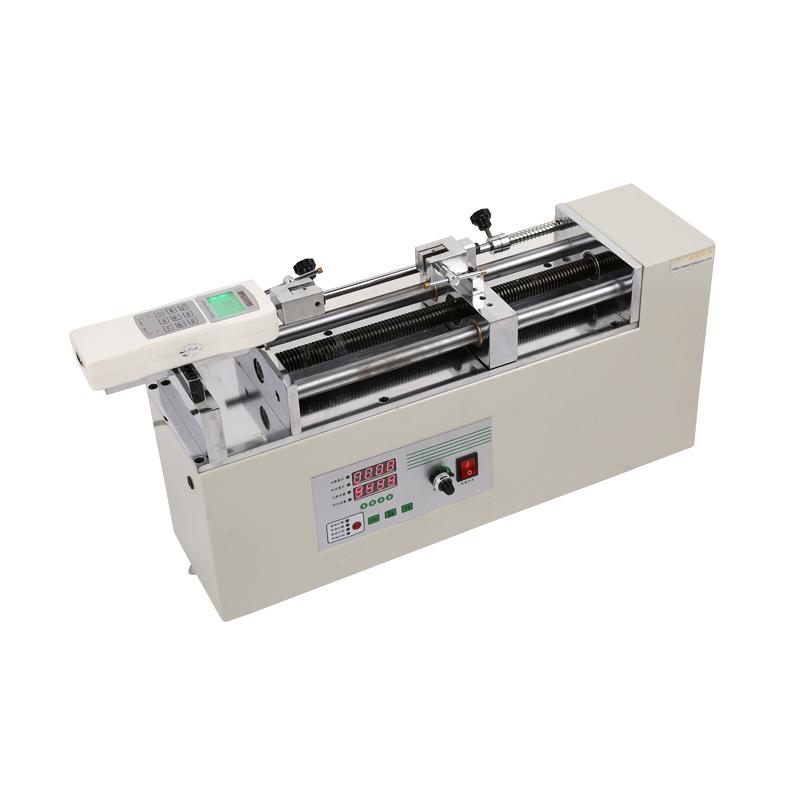

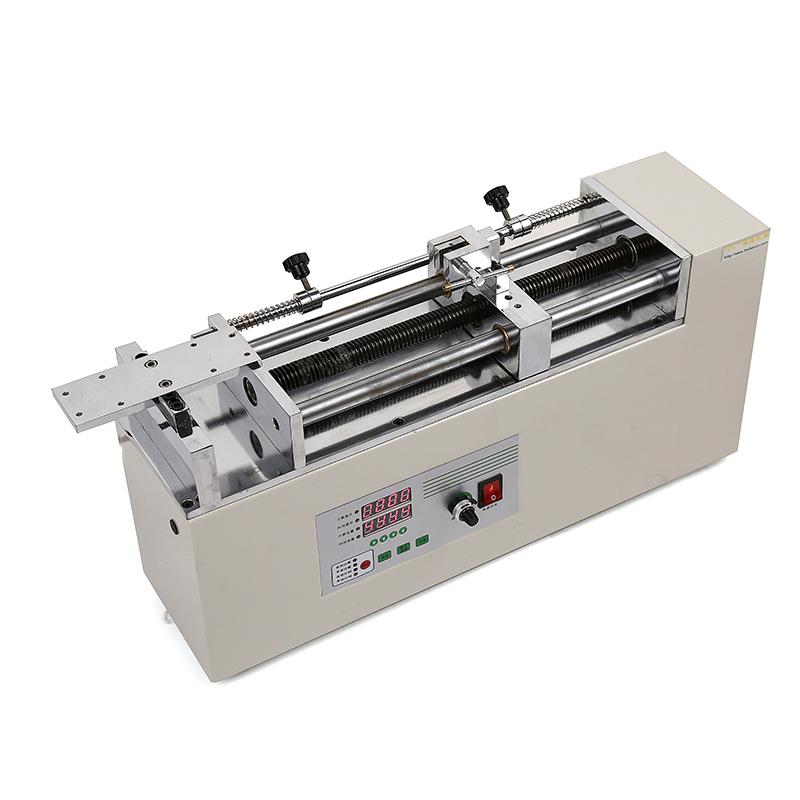

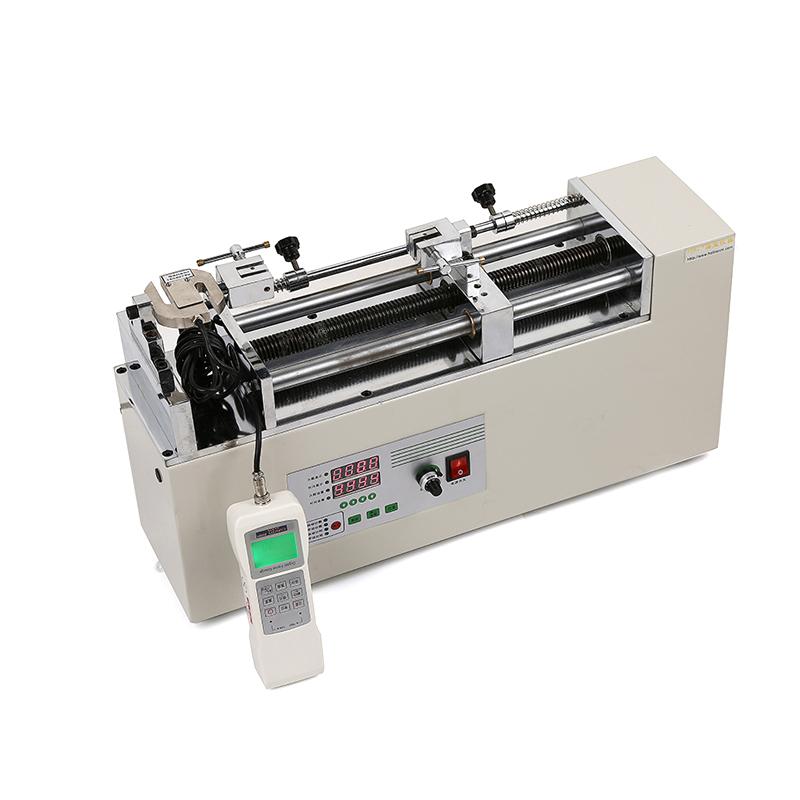

HBO HDT-500 electric horizontal machine adopts digital tube screen display, with timing and counting round-trip test function, can withstand the maximum load of 500N, effective space ≤ 300mm. The machine adopts double guide rod structure, Stability is good, can be used with HF, HG, NK series Force Gauge, as a load test bench.
Features
1. Digital tube screen display
2. Four test modes: automatic counting mode, automatic timing mode, manual counting mode, manual timing mode
3. Test speed adjustable (stepless speed regulation)
4. Timing and counting round-trip test
5. It can be pointed and operated automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test
6. The pause time during the sample batch test can be set, and the sample clamping time can be customized
7. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
8. Force holding function: Loading force holding time can be freely set
9. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
10. Pull and break and stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
11. Equipped with limit protection device, leakage protection device
12. Optional micro printer, matching the company's corresponding digital display Force Gauge, can print test data
Principle
HDT-500 electric horizontal machine realizes push-pull load test by electric loading mode, and adopts double guide rod structure to ensure running Stability. The equipment can automatically perform round-trip motion test according to the set force value, time, number of times and other parameters. When the preset force value is reached, it can maintain or return to the origin, and has the function of pulling and breaking and stopping.
Applications
Light industry Spinning & weaving, auto parts, rubber plastics, power machinery, building doors and windows, composites, Wires and cables, scientific research institutions
Steps
1. Connect the power supply (AC 220V 50/60HZ)
2. Select the test mode as required (automatic counting, automatic timing, manual counting, manual timing)
3. Test speed (0-500mm/min stepless speed regulation)
4. Set time (0-9999s) or number of times (0-9999 times) parameters
5. Set the loading force value and hold time
6. Install the specimen and adjust the fixture position
7. Start the test, and the device automatically runs to completion
8. Optional micro printer to print test data
Notice
• Power supply voltage check before use (AC 220V)
• Make sure the sample is firmly installed to avoid loosening during the test
• When setting parameters, be careful not to exceed the maximum load of the equipment 500N
• Regularly check whether the function of the limit protection device and the leakage protection device is normal
• Keep the equipment clean to avoid dust affecting the operation accuracy
• Non-professionals should not disassemble or repair the equipment
