Overview

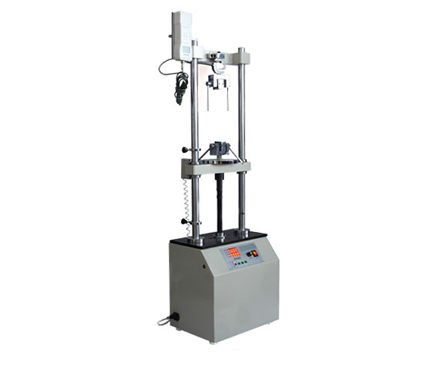

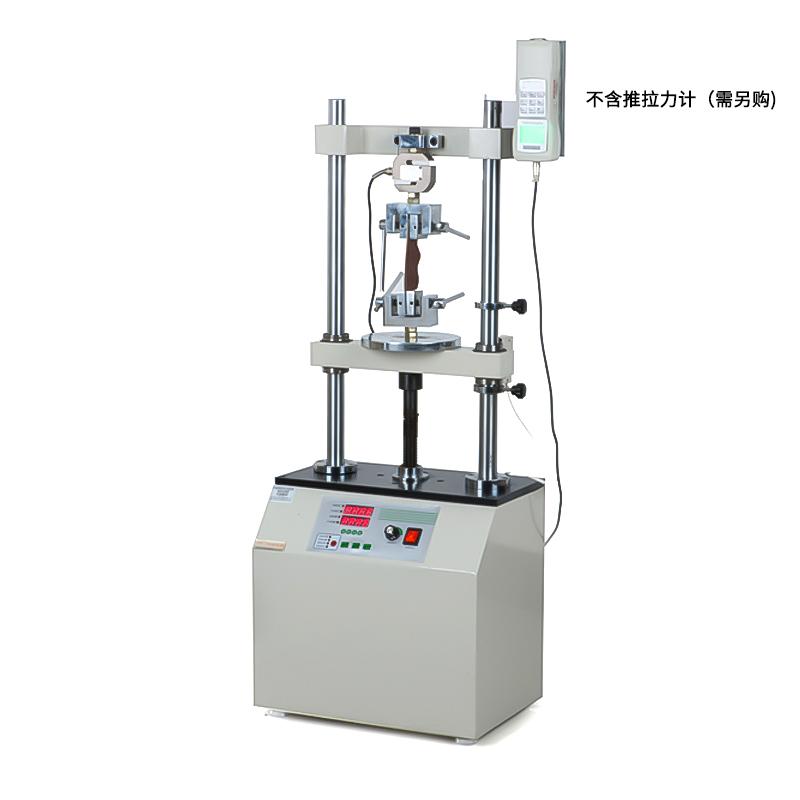

Hypertherm HDD-1K electric double column vertical machine is a liquid crystal display tensile testing device with a maximum load of 1000N, suitable for HF/HG/NK series tensile gauge. It is automatically loaded with a low-noise stepless speed regulating motor and has the function of pulling and breaking and stopping to ensure measurement accuracy and safety. Specially used for Force Gauge, it is used in tensile, pressure, destructive force and other tests of the tested object. It adopts a double guide rod structure, which has the advantages of good Stability, wide application range and convenient use.
Features

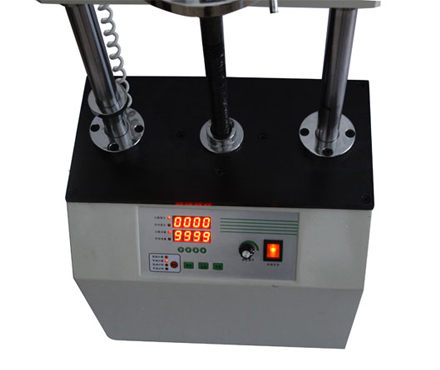

1. Digital tube screen display
2. Four test modes: automatic counting mode, automatic timing mode, manual counting mode, manual timing mode
3. Test speed adjustable (stepless speed regulation)
4. Timing and counting round-trip test
5. It can be pointed and operated automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test
6. The pause time during the sample batch test can be set, and the sample clamping time can be customized
7. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
8. Force holding function: Loading force holding time can be freely set
9. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
10. Pull and break and stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
11. Equipped with limit protection device, leakage protection device
12. Optional micro printer, matching the company's corresponding digital display Force Gauge, can print test data
Principle

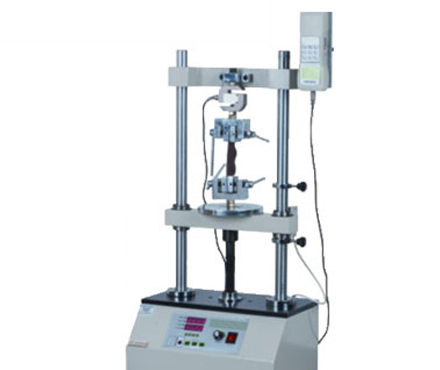

The HDD-1K electric double-column vertical machine adopts low-noise stepless speed regulation motor to automatically load, and realizes stable operation through double guide rod structure. When the tensile force, pressure or destructive force test is carried out, the motor drives the beam to move, applies force to the tested object, and automatically stops or returns to the origin when the force is discharged through the function of pulling and breaking.
Steps
1. Equipped with the required model Hypertherm Force Gauge
2. Install the tensile gauge and machine fixture
3. Fix both ends of the specimen and fixture
4. Travel limit protection switch
5. Turn on the total power supply of the machine and the power supply of the tension meter, and set the functional parameters of the electric double-column vertical machine HDD-1K
6. Press the forward or backward button to start the test test
7. After the electric double-column vertical machine HDD-1K is completed, press the forward or backward button to return the machine to its original initial state
Notice
• Make sure you have the correct Hypertherm Force Gauge model
• Fix firmly when installing the tension gauge and fixture
• Both ends of the test piece and the fixture must be fixed
• Adjust Travel Limit Protection Switch to Ensure Safety
• Check the power connection before operation and set the function parameters
Return the machine to its initial state after the test is completed
