Overview

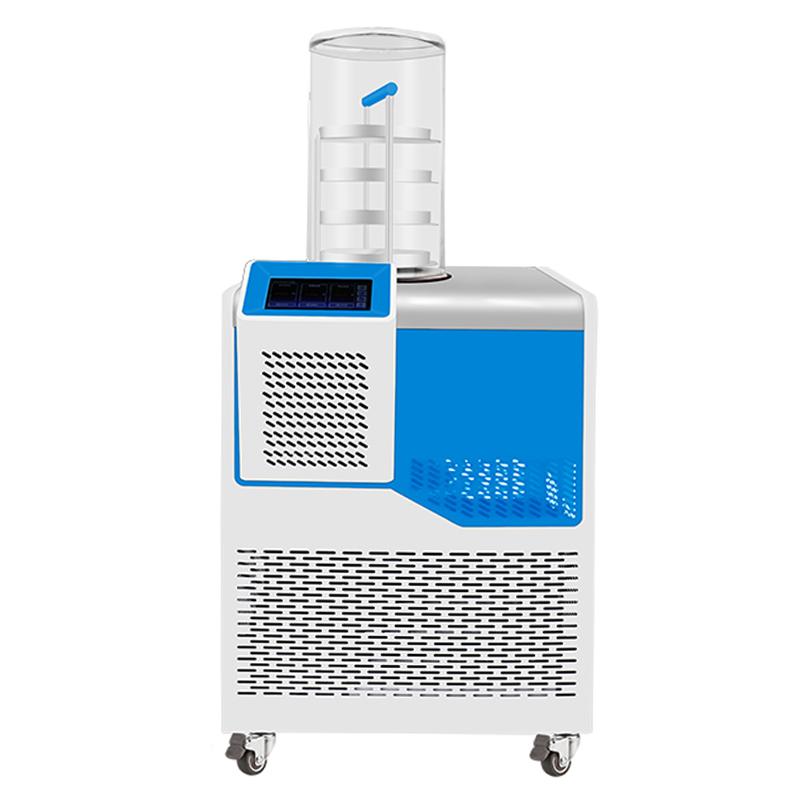

HXLG-12-80B standard vertical lyophilizer is suitable for freeze drying and species preservation in biological research, medical pharmacy, chemical industry, Food processing, Universities & colleges and other fields. The equipment is suitable for vacuum freeze drying preservation of most bacteria, actinomycetes, viruses, bacteriophages, rickettsiella, molds and yeasts, but not for mycelium, mushrooms, algae and protozoa of molds.
Features
1. Rapid cooling, uniform temperature on the inner wall of the cold trap, professional gas diversion technology, good water capture effect
2. Brand Danfoss Compressor, stand-alone mixed environmentally friendly refrigeration technology
3. Equipped with cold trap sample pre-freezing function, no need to equip ultra-low temperature freezer or liquidnitrogen treatment
4. Color LCD 7-inch Touchscreen, friendly human-machine interaction interface, equipped with lock screen function, optional mobile phone, computer remote control
5. The main interface of the display screen is simple and clear, showing parameters such as cold trap temperature, Vacuum Level, sample temperature, running time, etc., and setting misoperation permission management
6. The data has the functions of viewing, exporting, and deleting, lyophilized data is automatically saved, and USB data export is supported
7. Support lyophilization of ampoules, vials, Glass flasks, plasma bottles or discs
8. The cold trap has the function of independent pre-freezing of the early sample
9. Configure one-click defrosting function
10. Built-in maintenance reminder function
11. One-click automatic air intake function
12. Equipped with vacuum alarm function
13. Equipped with stainless steel anti-corrosion vacuum connection pipe, with standard KF25 vacuum quick connection clamp
14. Optional stainless steel cover with standard KF25 vacuum quick coupling clamp
Principle
The freeze dryer reduces the cold trap temperature to -80 ° C through the refrigeration system, and directly sublimates the moisture in the material from the solid state to the gaseous state in the vacuum environment to realize the freeze drying process. The equipment adopts professional gas diversion technology to ensure the water capture effect, and maintains the working Vacuum Level through the vacuum system.
Applications
Biological Research, Medical Pharmaceuticals, Chemicals, Food processing, Universities & colleges
Steps
1. Prepare the sample and place it in a suitable container
2. Turn on the power of the device
3. Set relevant parameters through Touchscreen
4. Start the freeze drying procedure
5. Monitor operating parameters
6. Data export after the program is completed
7. Use the one-click defrost function to clean the equipment
Notice
• Not suitable for mould mycelium, mushrooms, algae and protozoa, etc
• Operating Environment Temperature ≤ 25 ℃
• Pay attention to the Vacuum Level alarm prompt
• Regular equipment maintenance
• Pay attention to misoperation permission management during operation
