Overview

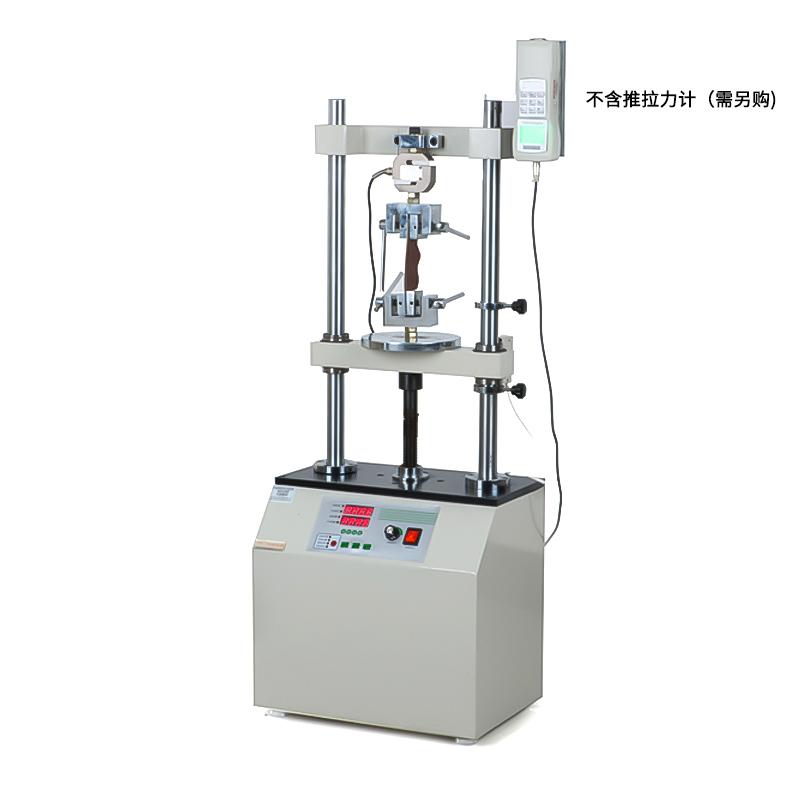

Hypertherm HDD-2K electric double-column vertical machine is a digital display electric double-column vertical machine specially used for HF, HG, NK series Force Gauge, which can bear the maximum load value of 2KN and effectively Travel up to 400mm. The machine can be equipped with digital display Force Gauge to realize various functions such as pull-off and stop, force value maintenance, force limit, fatigue test, etc. The double guide rod structure has the advantages of good Stability, wide application range and convenient use.
Features
1. Adopt digital tube screen display, clear display
2. There are four Operating Modes: manual counting mode, automatic counting mode, pull and break stop mode, and automatic timing mode.
3. Suitable for pulling force test, fatigue test, breaking force measurement, force holding measurement and other tests
4. Can freely set the force value for round-trip movement, set the force value and the number of movements
5. Test speed adjustable (stepless speed regulation)
6. It can be pointed and operated automatically, which is convenient for adjusting the upper and lower positions of the fixture before the test
7. The pause time during the sample batch test can be set, and the sample clamping time can be customized
8. The loading force can be set (the force value can be controlled), and the beam remains stationary when the preset force is reached (the holding time can be set) or returns to the origin
9. Force holding function: loading force holding time can be set freely
10. Set the force value round-trip function: when the equipment runs to the specified force value, the force value, holding time, and the number of movements can be freely set
11. Pull and break and stop function: after the measured object is discharged, the beam remains stationary or returns to the origin
12. Equipped with limit protection device, leakage protection device
13. Optional micro printer, with corresponding digital display Force Gauge, can print test data
Principle
The HDD-2K electric double-column vertical machine is tested by electric loading mode and digital display Force Gauge, and adopts double guide rod structure to ensure Stability. The equipment can automatically control the movement of the beam according to the setting mode, and realize the functions of force measurement, maintenance and round-trip motion.
Applications
Tensile testing, stress testing, destructive force testing of the tested object
Steps
1. Select the test mode: automatic counting mode, automatic timing mode, manual counting mode, manual timing mode
2. Test speed (stepless speed regulation)
3. Set the timing count round-trip test parameters
4. Use pointing or automatic operation to adjust the fixture position
5. Set the pause time and sample clamping time for sample batch testing
6. Set the loading force value and hold time
7. Set the force value, holding time and number of movements for round-trip motion
8. Start the test, and the device executes the corresponding functions according to the settings
9. Optional micro printer to print test data
Notice
Equipment is equipped with a limit protection device, and attention should be paid to the safety range when using it
• Equipped with leakage protection device to ensure electricity safety
• Measured value is 2000N/200Kg, do not overload
• Test space is 560mm high * 230mm wide (excluding fixture), pay attention to the sample size
• Travel is 220mm to ensure effective travel
• The power supply is AC 220V 50/60HZ, which needs to match the power supply specifications
