Overview

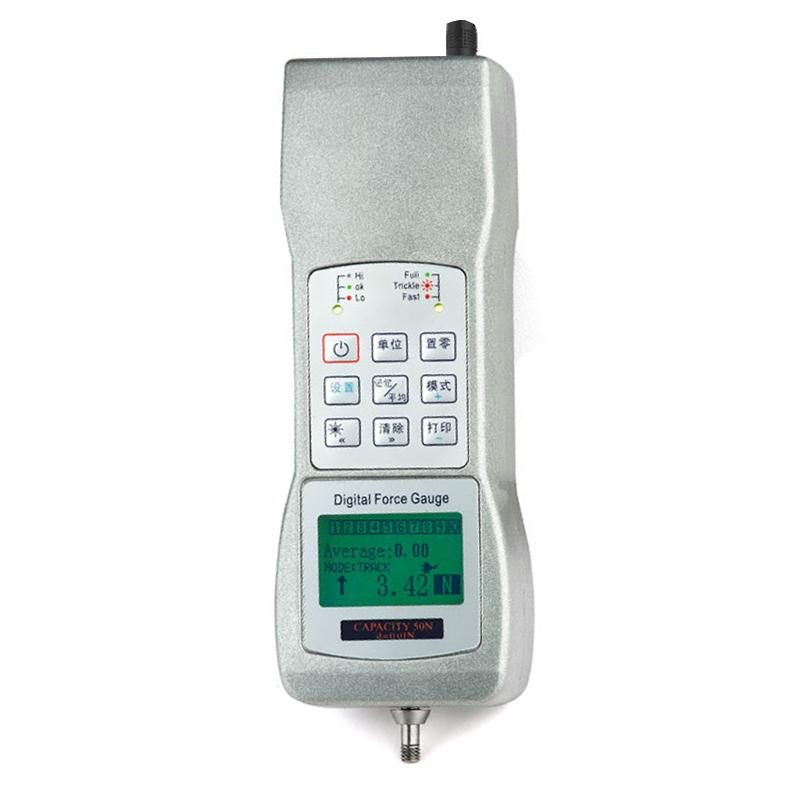

Hypertherm Electronic Force Gauge HF-10K is a Portable digital display Force Gauge with a maximum load value of 10KN and a load Graduation of 0.005KN. The product adopts a digital display LCD screen with green backlight function, which has the characteristics of small size, light weight, easy to carry, multi-function and high accuracy.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees, which is convenient for multi-angle observation
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

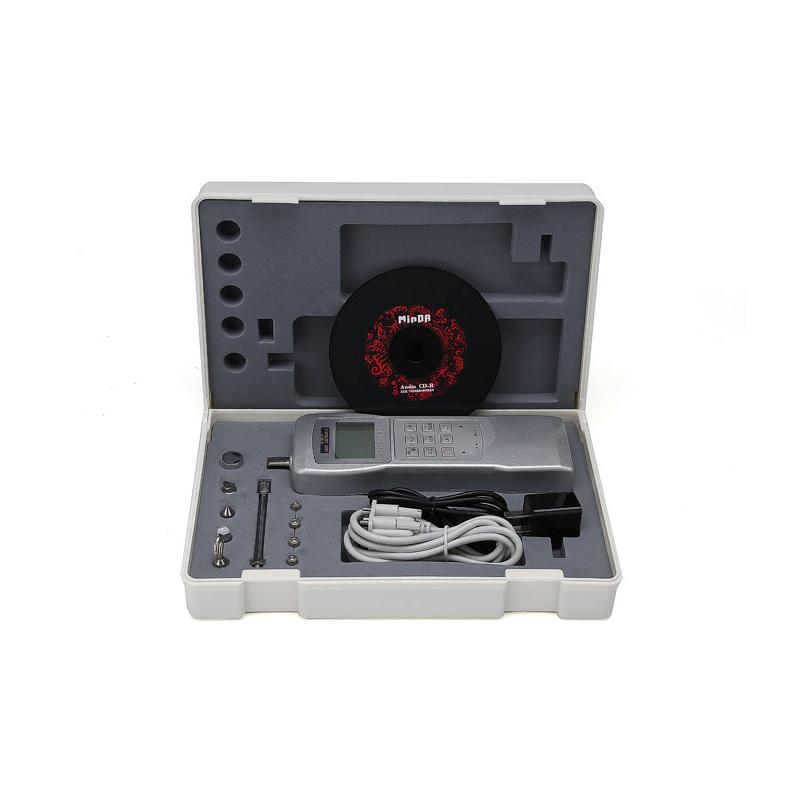

14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging, Safe Charging, Extend Battery life
16. With the electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: In addition to automatically obtaining test results, qualified judgment and batch testing pass rate can be made according to the qualified range of the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
海宝电子推拉力计HF-10K通过外置传感器结构检测力值，准确度达0.5级，示值误差≤±0.5%。采用锂电池供电，支持多种工作模式包括实时力值跟踪、峰值保持、第一峰值和按键专用模式，通过点阵式液晶显示器实时显示测试数据和方向。
Applications
Chemical, Machinery, Construction, Electronics, Hardware, Auto Parts, Fire Protection Devices, Scientific Research Institutions
Steps
1. Select the test unit (N, KN, Kgf, gf, lbf, tf)
2. Select the test mode (real-time force tracking, peak hold, first peak, button pressure-rebound)
3. Set the upper and lower limit comparison values (optional)
Step 4 Perform a pull or thrust test
5. Observe Display Readings and Operating Mode Indications
6. Store test data (up to 200 sets)
7. Export data or generate test reports
Notice
• When the battery level shows very small, charge it in time.
• The device will automatically shut down when the battery is empty
• The working environment should be free of vibration and corrosion medium
• Operating temperature range is 0~ 40 ℃
• Storage Temperature range -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Pay attention to the display of the test direction symbol (tension shows "down", thrust shows "up")
