Overview

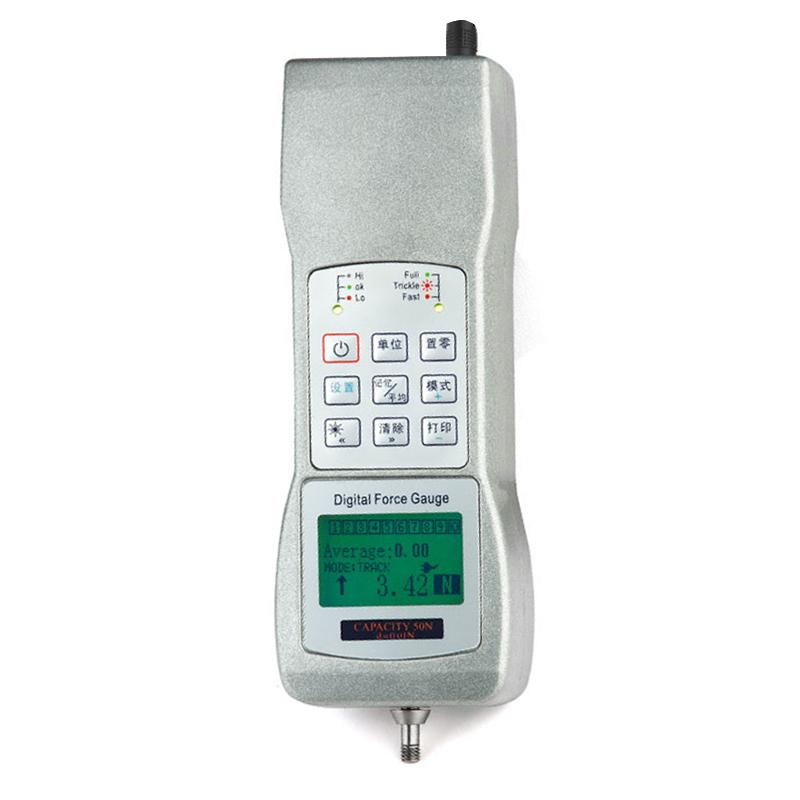

Hypertherm HF-20K Digital Display Force Gauge is a Portable Digital Display Force Gauge with a load Measured value of 20KN and a Graduation of 0.01KN. As a general-purpose Portable push-pull load testing instrument, it is suitable for push-pull load testing, insertion force testing, failure testing, etc. of various products, and can be combined with various machines and fixtures to form small experimental machines for different purposes.
Features
1. High Accuracy High resolution, Stability, sampling speed up to 960HZ
2. With button pressure and resilience test function
3. Operating interface Chinese and English display can be selected, and the display test content can be flipped 180 degrees, which is convenient for multi-angle observation
4. point array LCD, green backlight screen
5. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
6. Test direction display (pull, thrust)
7. Four test modes: real-time force tracking mode, peak hold mode, first peak mode, button pressure-rebound mode
8. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
9. Store 200 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
10. Peak hold time can be set (0 to 99 seconds)
11. Gravity acceleration value can be set
12. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
13. Limit protection: with over-range sound alarm and mechanical two-level limit protection

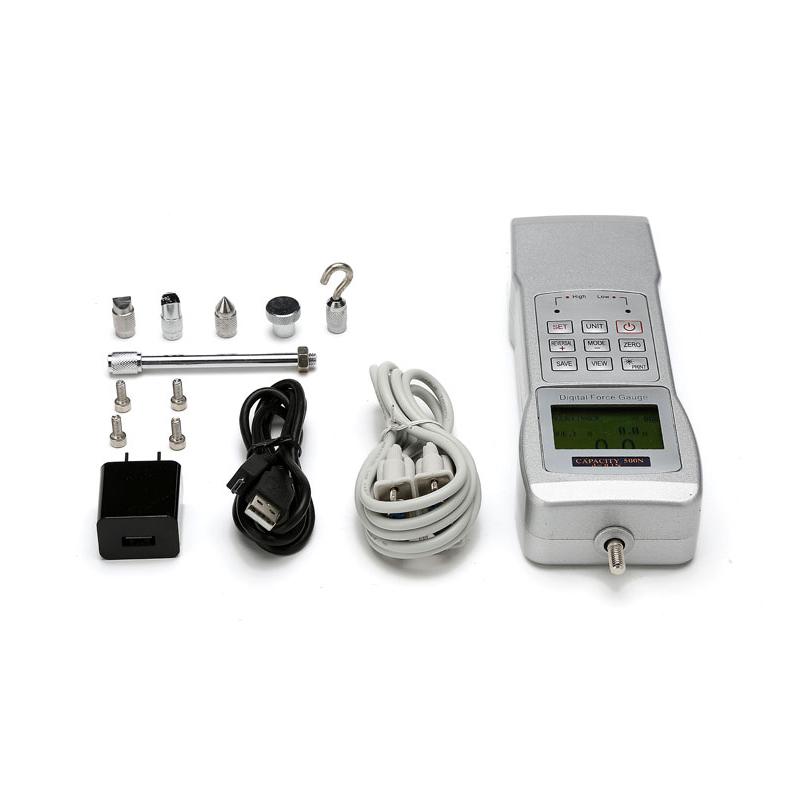

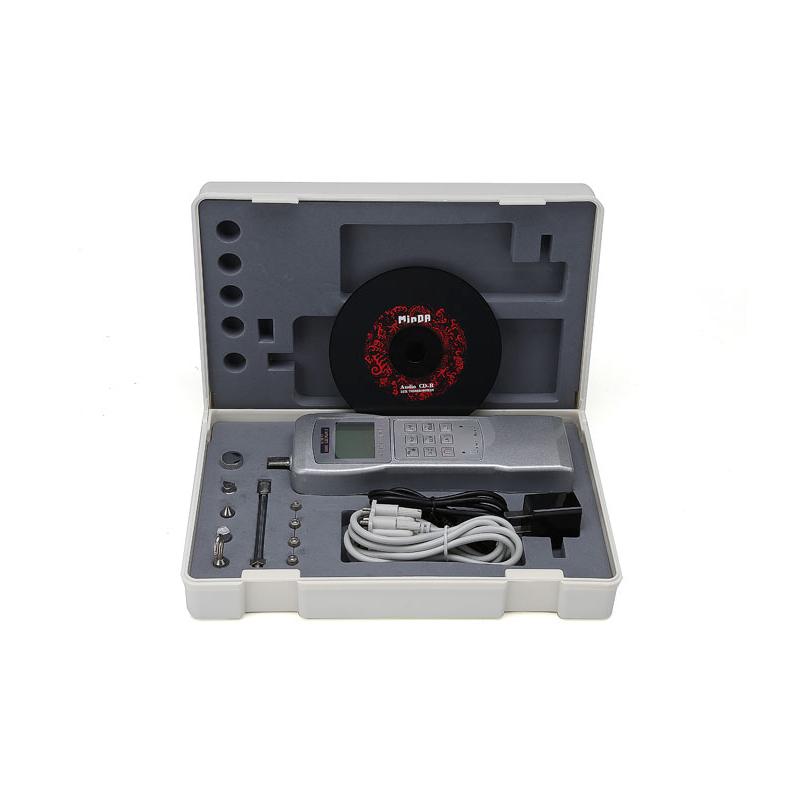

14. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
15. Smart Charging, Safe Charging, Extend Battery life
16. With the electric testing device, the tested product can be stopped or reset when it is damaged, stop or reset when it reaches the preset force value, fatigue test and other functions
17. Host computer software: Chinese WINDOWS interface
18. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
19. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
20. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
21. Test data: The data obtained from the test can be queried and exported in excel format
22. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The HF-20K digital display Force Gauge performs load measurement externally through the Sensor structure. The Precision is 0.5, and the Indication Error ≤ +/- 0.5%. It uses a point array LCD display and supports a variety of test modes, including real-time force tracking, peak holding, first peak, and key pressure-rebound mode. It can display the direction of push-pull force in real time (down when pulling, up when pushing), and automatically calculate and store the data through intelligent algorithms.
Applications
Chemical, Machinery, Construction, Electronics, Hardware, Auto Parts, Fire Protection Devices
Steps
1. Select the test mode: real-time force tracking mode, peak hold mode, first peak mode or button pressure-rebound mode
2. Set the unit: select the desired unit in N, KN, Kgf, gf, lbf, tf
3. Perform a push-pull load test and observe the test value reading area and direction symbol in the display window
4. Set the upper and lower limit comparison value, peak hold time or automatic shutdown time as needed
5. Store test data to view Average, MAX Maximum and MIN Minimum
6. Use the host computer software to export data or generate test reports
Notice
• Charge in time when the battery level indicator is low, and automatically shut down when the battery is empty
• The working environment should be free of vibration and corrosion medium
• Operating temperature is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• The relative humidity should be kept at 15% to 80%
• Use a dedicated charger (AC input 220V/50HZ, DC output 5V/1A) for smart charging
• Pay attention to the over-range sound alarm and mechanical limit protection function
