Overview
The Automatic Film Applicator TBJ-X3-DJ11C is designed to address artificial film inconsistencies due to factors such as Spreader speed and pressure, and is particularly suitable for laboratory environments. The device features a Vacuum chuck, heating, bar, and drawdown blade design. It is equipped with a removable drawdown blade for easy cleaning and replacement. The heating Temperature range is RT + to 180 ° C, which significantly improves the reproducibility of the film.
Features

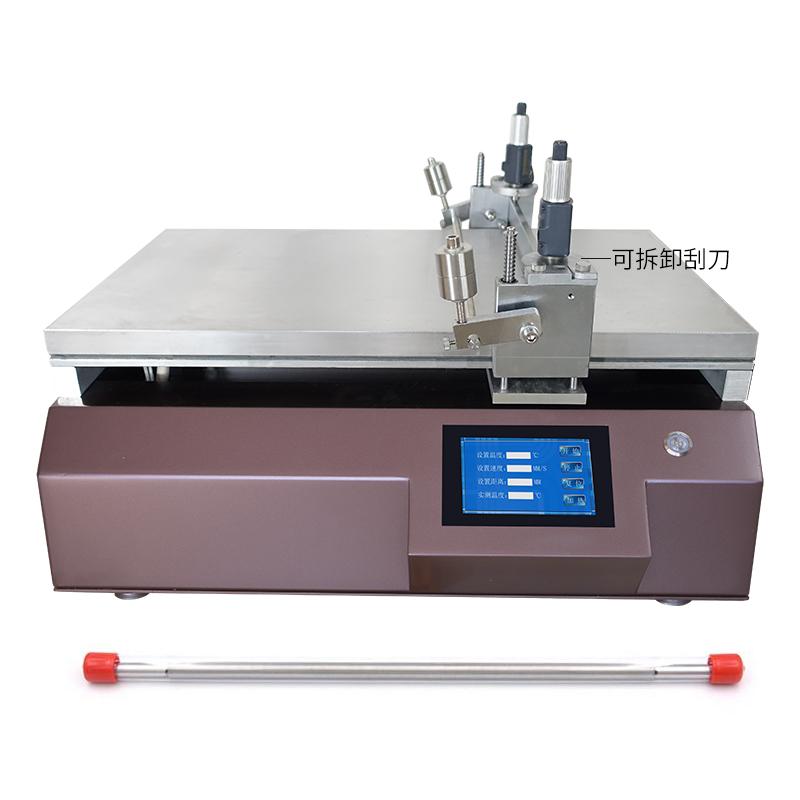

1. The coating method is bar + drawdown blade, the drawdown blade is removable, easy to clean and replace
2. Blade Coating thickness range 0.001~ 10mm adjustable, accuracy +/- 0.003mm
3. meyer rod coating thickness range 6-200μm optional, accuracy +/- 0.001mm
4. coating speed 5~ 200mm/s variable speed, Spreader Travel 1~ 400mm digital arbitrary setting
5. Vacuum chuck clamping method, Vacuum Area 400 * 280mm
6. Control mode is Touchscreen, easy to operate
7. heating Temperature range RT +~ 180 ℃, suitable for a variety of experimental needs
8. effective coating area 400 * 300mm, can be customized
9. The equipment structure is strong, the shell material is 3mm galvanized sheet metal + electrostatic spraying, and the baseplate is aluminum alloy
Principle
The Automatic Film Applicator uses a bar or drawdown blade for precise Spreader with Vacuum chuck fixation of the substrate combined with adjustable Spreader speed and pressure. The heating system controls temperature to ensure consistent wet-film formation on different materials, improving Reliability and reproducibility of experimental results.
Applications
Paper, plastic, metal, PVC, PET, fabric, aluminum alloy plate and other flat materials
Steps
1. Prepare substrate and place on Vacuum chuck platform
2. Select bar or drawdown blade as needed and set Spreader thickness and speed
3. Spreader Travel and heating temperature setting via Touchscreen
4. Start the Device for Auto Spreader
5. After the Spreader is completed, remove the drawdown blade for cleaning and replacement
Notice
• Make sure the power supply of the device is 220V/50Hz before use to avoid voltage mismatch
• Vacuum chuck is firm during Spreader to prevent the substrate from moving
• Regular cleaning and inspection of drawdown blades to ensure Spreader accuracy
• Do not touch the heating parts during heating to prevent burns
• Device weight 65KG, need to be careful when handling
