Overview

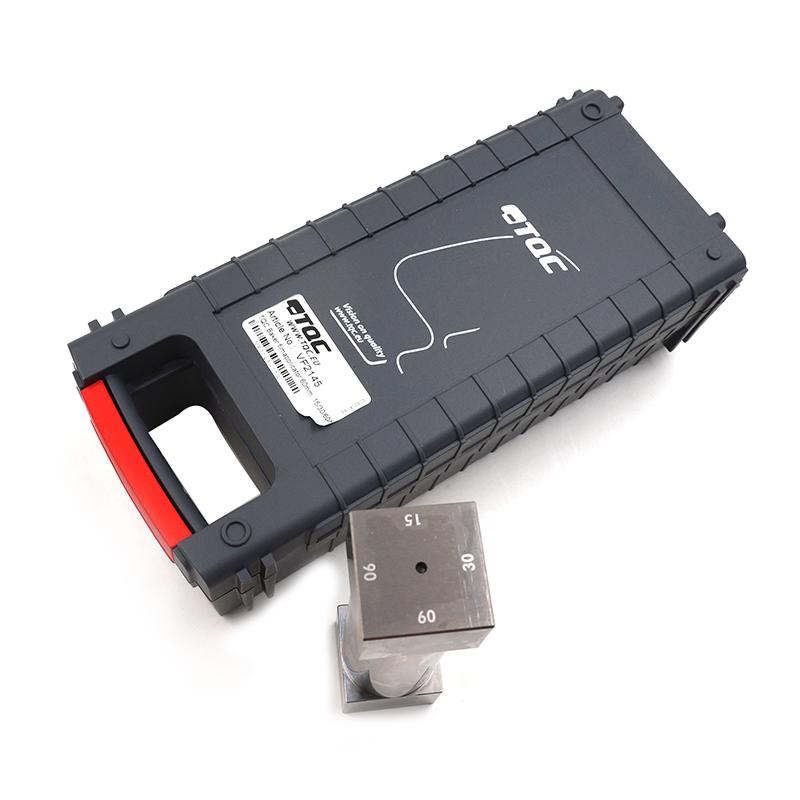

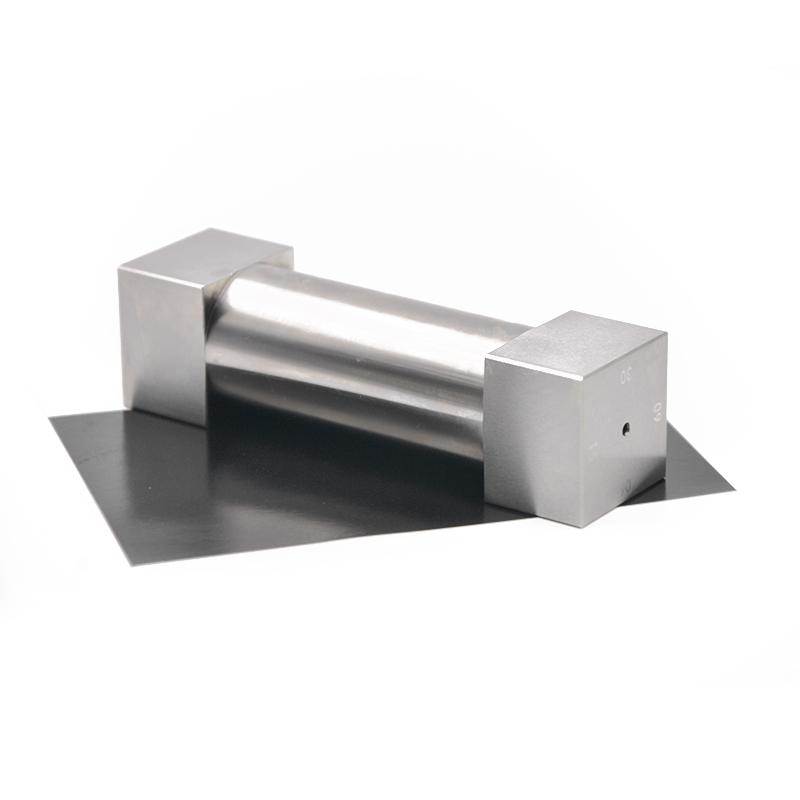

The TQC Baker coating applicator VF2146 is a cylindrical coating applicator with 4 paint surfaces for 4 preset thicknesses. With an application width of 60mm, it is suitable for Spreaders of various products on flat or smooth solid substrates. The product is made of stainless steel to resist the erosion of acidic and alkaline substances in Coatings or cleaning agents.
Features
1. Compliant with ASTM D 3022 and ASTM D 823 standards
2. Cylinder Design, 4 Spreaders 4 Different Thicknesses
3. Application width 60mm, suitable for most products and solid substrates
4. Stainless steel material, resistant to acid and alkali and chemical elements
5. wet film thickness 30/60/90/120µm, accuracy +/- 3μm
Principle
Baker coating applicator uses 4 coating surfaces of different heights to scrape coating on the substrate through a cylindrical design to form a wet-film with a preset thickness. During operation, select the appropriate coating surface to move evenly on the flat substrate to obtain accurate Coating thickness.
Applications
Plate Spreader, Solid Substrate Spreader, Coating test, quality control
Standards
ASTM D 3022、ASTM D 823
Steps
1. Select the appropriate coating surface corresponding to the required thickness
2. Place the coating applicator on one end of the flat substrate
3. Push the coating applicator evenly along the substrate
4. Clean coating applicator after Spreader
Notice
• Make sure the substrate surface is flat and clean before use
• Spreader to maintain a uniform push force
• Clean the coating applicator after use to prevent Coating curing
• Avoid using hard objects to scratch the coating surface to affect the accuracy
Keep drying to prevent rusting
