Overview

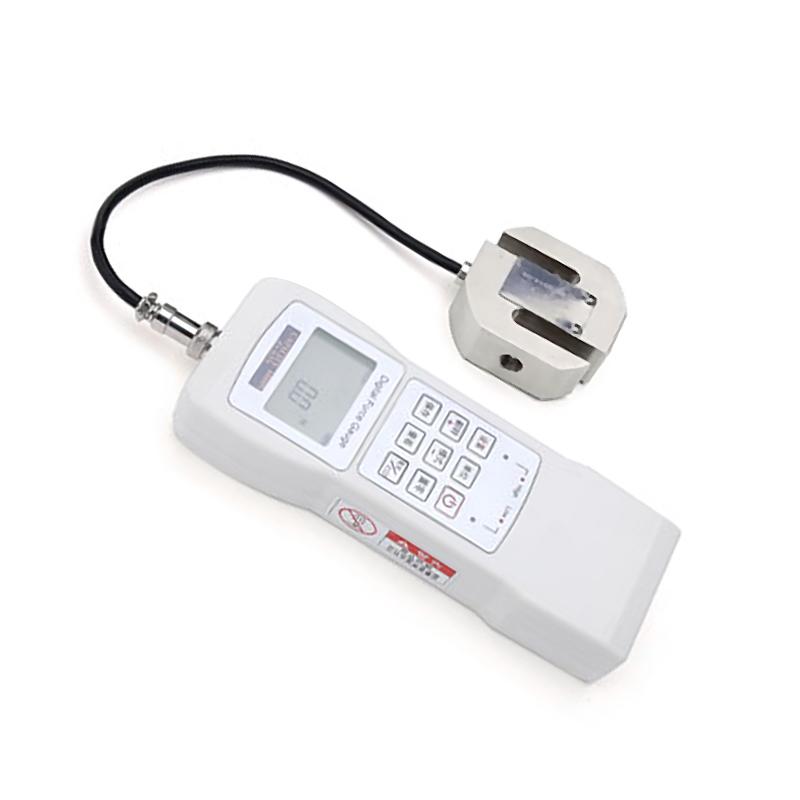

Hypertherm Precision Tensimeter HG-1000 is an external Sensor Force Gauge with LCD screen, with peak hold and release function, the maximum load value is 1000N, and the Graduation is 0.5N. The instrument is a general-purpose push-pull load testing equipment with the advantages of High Accuracy, High Resolution and High Stability. It is suitable for tensile testing, plug-in force testing, failure testing and other applications.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ

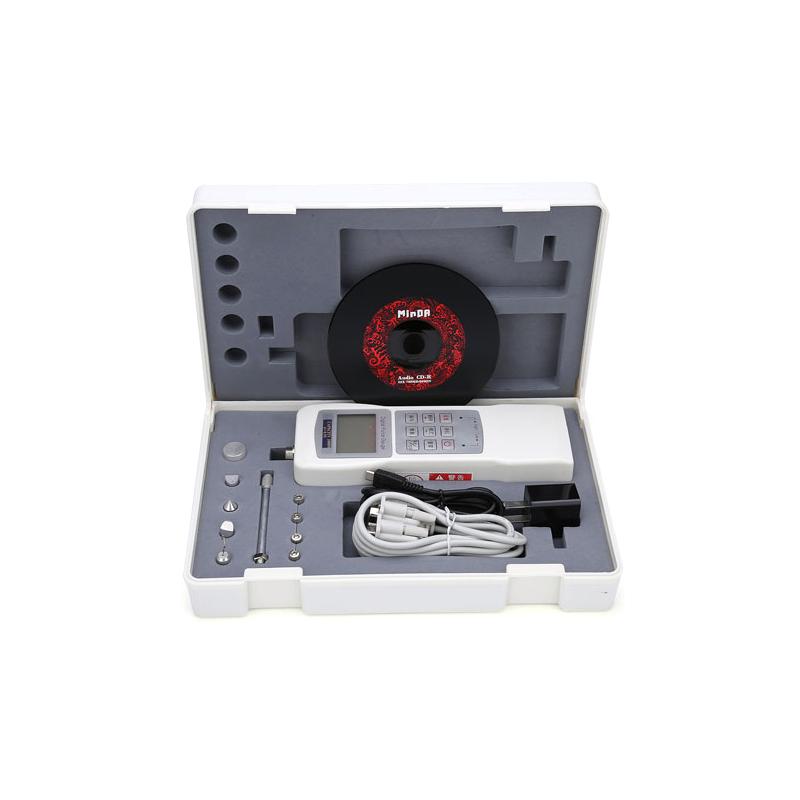

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry

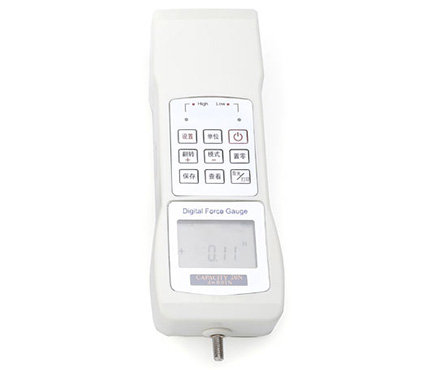

3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc

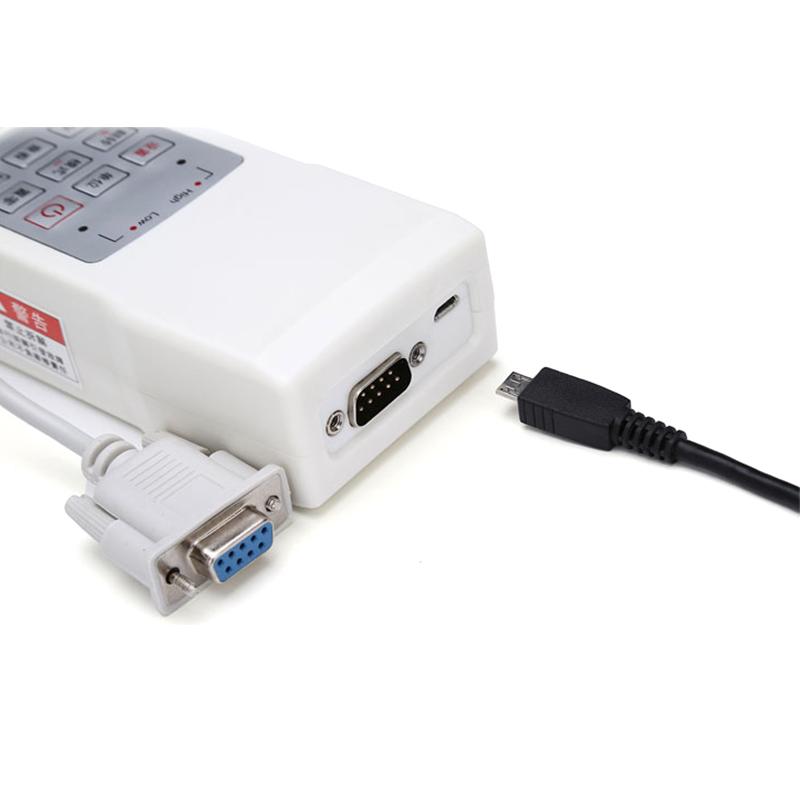

15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
Hypertherm precision tension meter HG-1000 collects push-pull force signals through an external Sensor, which are converted by ADC and displayed digitally on the LCD screen. It supports a variety of test modes, including real-time tracking, peak hold and first peak mode, and can automatically pass the judgment by setting the upper and lower limits. The instrument adopts an intelligent charging system to ensure the safe use of the battery.
Applications
Tension test, insertion force test, failure test
Standards
Precision: 0.5, Indication Error ：≤ +/- 0.5%
Steps
1. Connect Sensors and Meters
2. Turn on the power and select the test mode and unit
3. Set peak hold time, gravitational acceleration value or automatic shutdown time (optional)
4. Set the upper and lower limit comparison values (optional)
5. Conduct tests, and the instrument automatically displays and stores data
6. Use the host computer software to export data or generate reports (optional)
Notice
• Operating temperature: 0~ 40 ℃, Storage temperature: -20~ 70 ℃
• relative humidity: 15%~ 80% RH
• No vibration and corrosion medium around

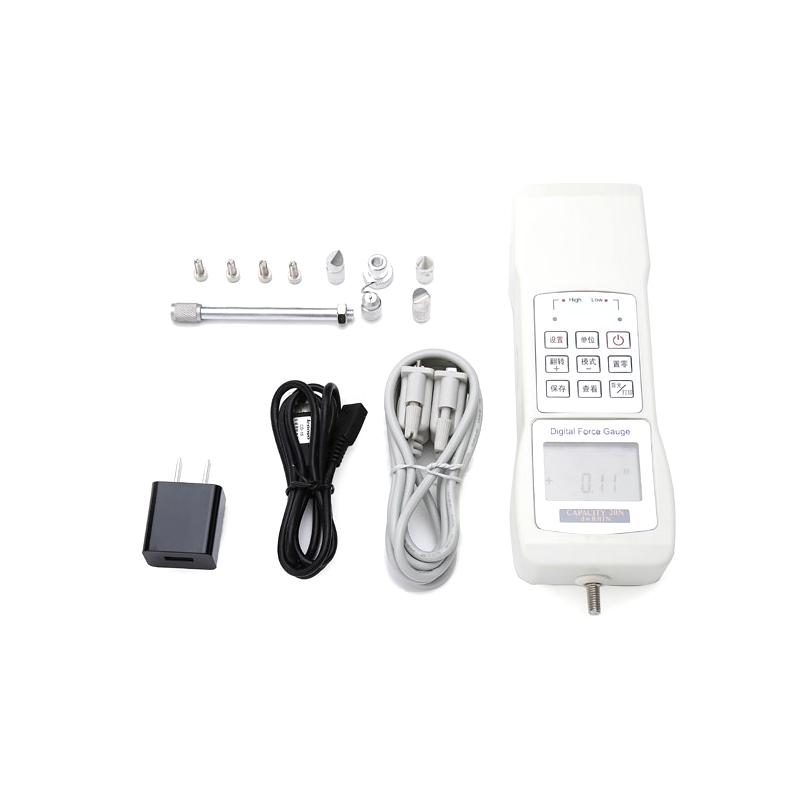

• Use special charger: AC Input: 220V/50HZ, DC Output: 5V/1A
• Pay attention to range limit protection to avoid overload use
