Overview

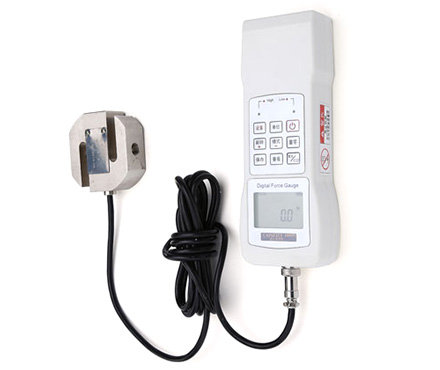

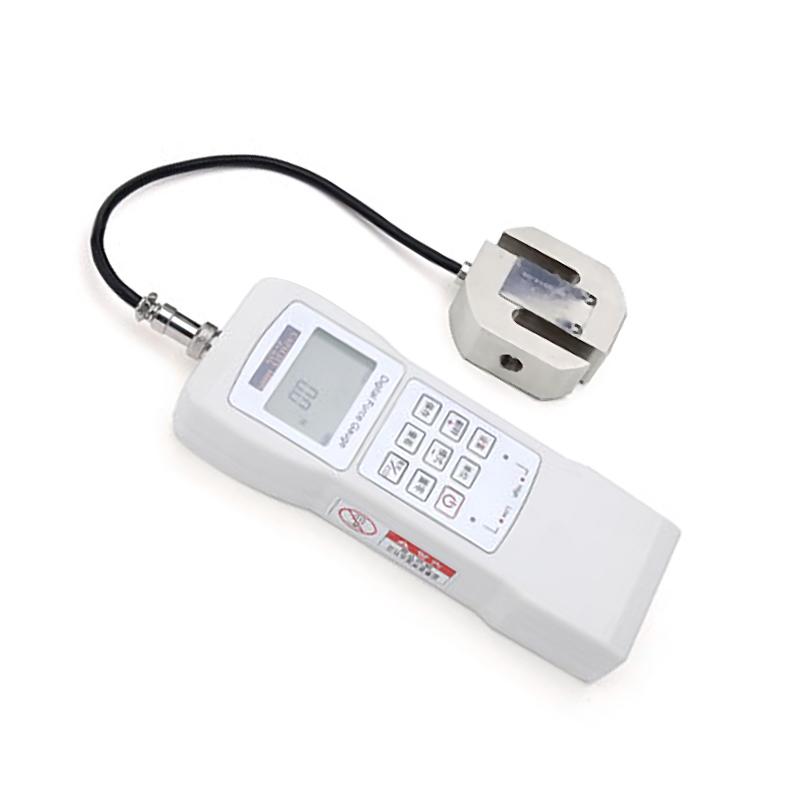

Hypertherm HG-2000 High Accuracy Force Gauge is a digital display Force Gauge with a maximum load of 2000N and an external Sensor design. The product is suitable for push-pull load testing, plug-and-pull force testing and failure testing scenarios. It has 99 test data storage memory sets, can freely set the upper and lower limits, and is equipped with a green backlight screen to support the testing needs in dark environments.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ

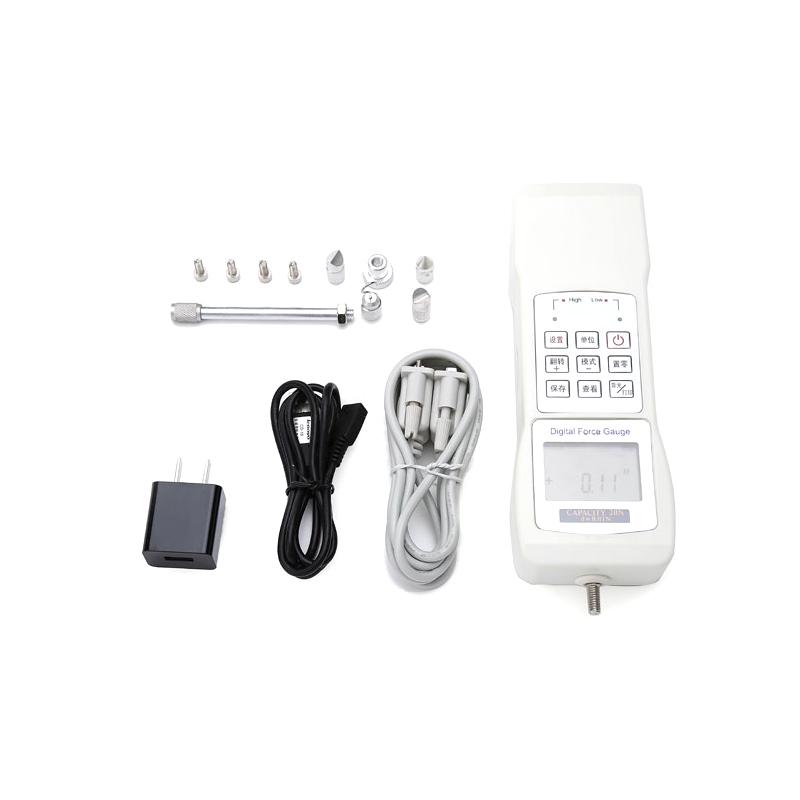

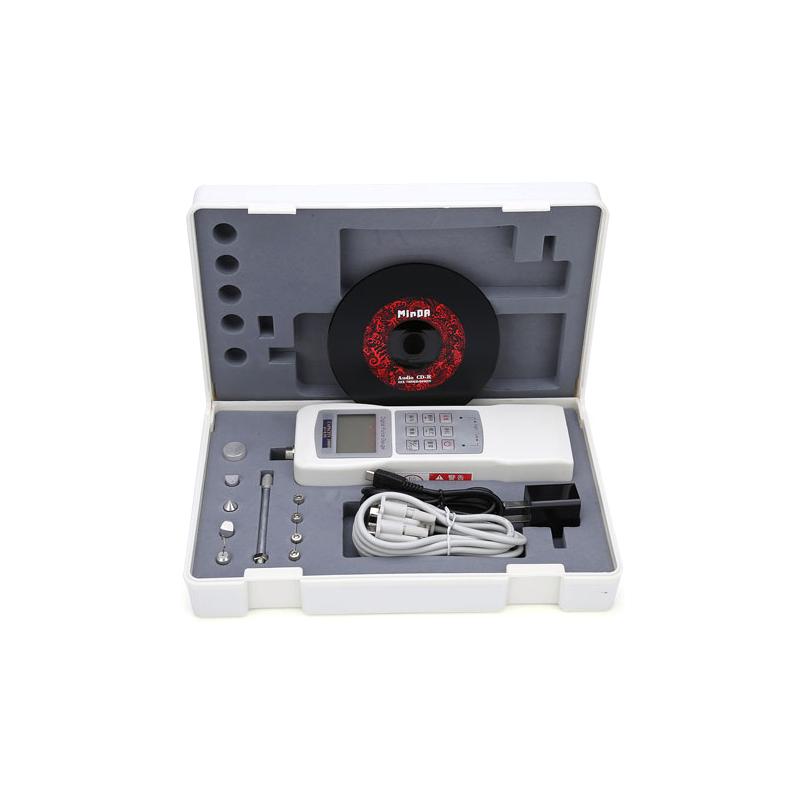

2. Special Instrument Toolbox with EVA Shockproof Encasement, easy to transport, store and carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to make data qualified judgment, with sound alarm and level signal output
8. Store 99 sets of test data, automatically calculate the average, MAX Maximum and MIN Minimum
9. Peak hold time can be set (0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (0~ 99 minutes)
12. Limit protection: range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging Extends Battery life
14. Cooperate with the electric testing device to realize the functions of stop, reset, preset force value stop, fatigue test and so on

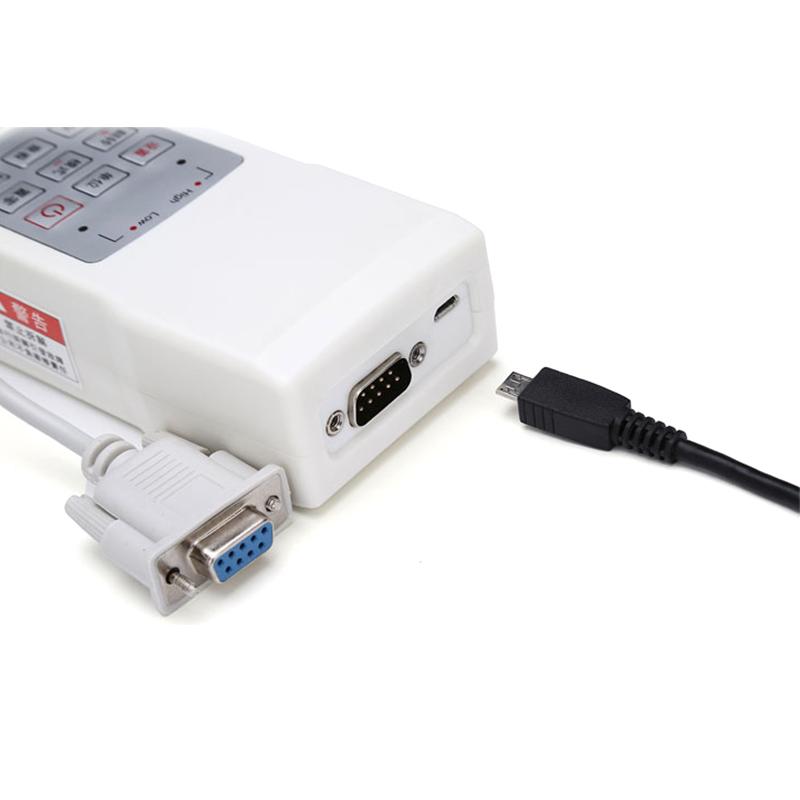

15. Host computer software: Chinese WINDOWS interface
16. Linear dispersion display of test results: real-time force value-time, peak force value-number, first peak-number
17. Qualification Judgment: According to the preset Standard value, the qualified and batch inspection pass rate is automatically judged
18. Automatic storage: Test data and Linear dispersion are automatically stored to the computer, and the number of storage is unlimited
19. Test data can be queried and exported in excel format
20. Test reports can be prepared and printed in user format
Principle
Hypertherm HG-2000 Force Gauge detects push-pull signals through external Sensors, uses High Accuracy ADC conversion technology to convert analog signals to digital signals, and the sampling speed is 120Hz. The device supports a variety of test modes, such as real-time force tracking and peak holding. Data judgment is performed by setting upper and lower limit comparison values, and cooperates with sound alarms and level signal output to achieve accurate load testing.
Applications
Push-pull load test, insertion force test, failure test
Standards
Precision 0.5, Indication Error ≤ +/- 0.5%
Steps
1. Connect the power supply and turn it on.
2. Set the test unit (N, KN, Kgf, etc.)
3. Select the test mode (real-time force tracking, peak holding, or first peak).
4. Set the upper and lower limit comparison value and peak hold time
5. Perform push-pull load testing
6. View test data and store it
7. Use the host computer software to export data or generate reports
Notice
* Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
* relative humidity should be kept at 15%~ 80% RH
* The surrounding environment should be free of vibration and corrosion medium
* Use a dedicated charger for smart charging to avoid battery damage
Regularly check the limit protection function to ensure safe operation
