Overview

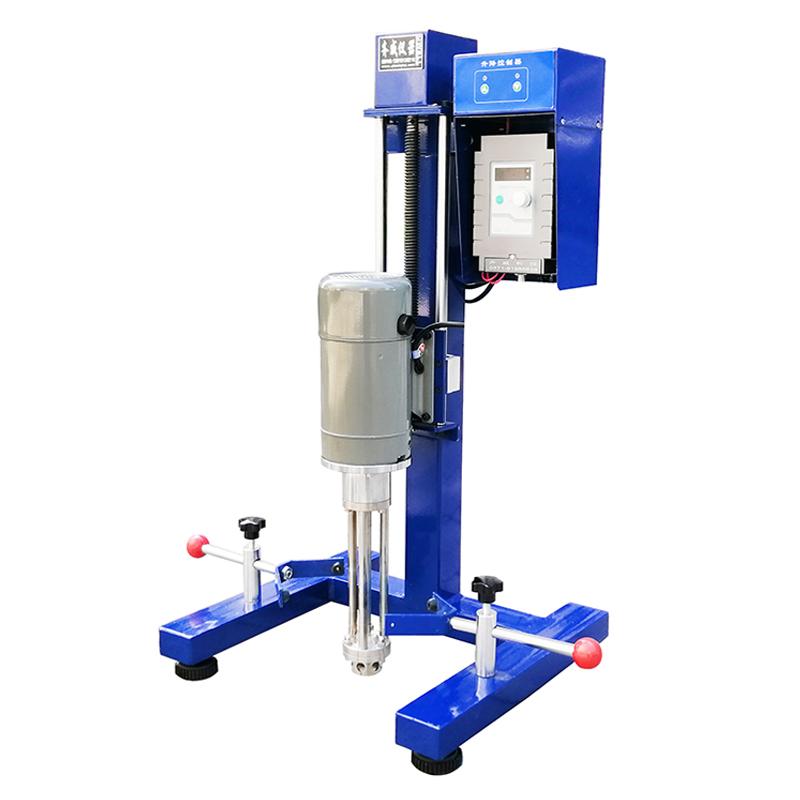

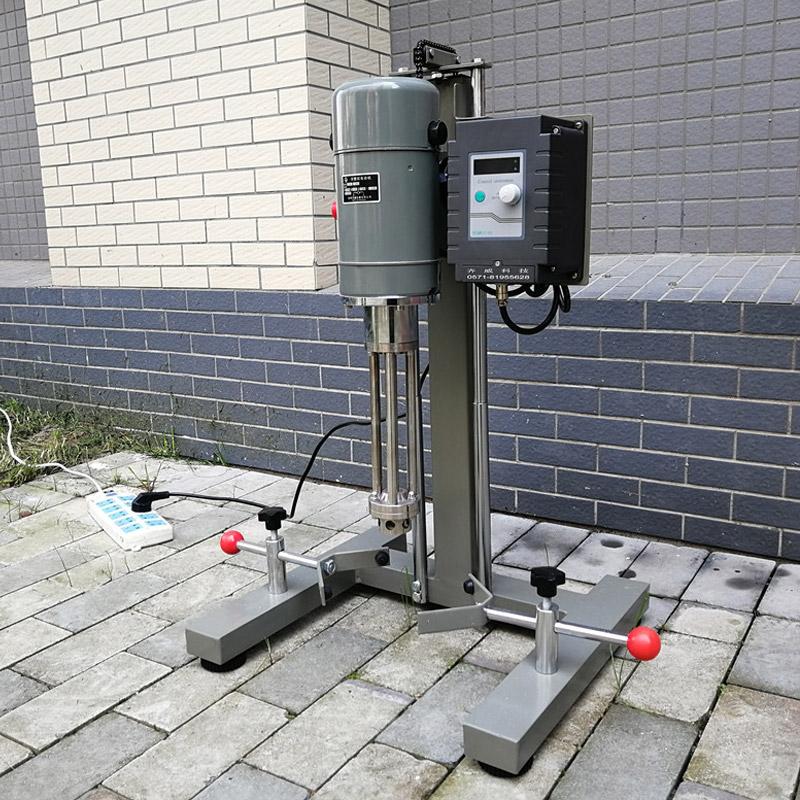

JRH-1000S laboratory Mulser adopts specially designed rotor and stator under the high-speed drive of the motor, through high-frequency mechanical effects, the material is subjected to strong shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap.
Features

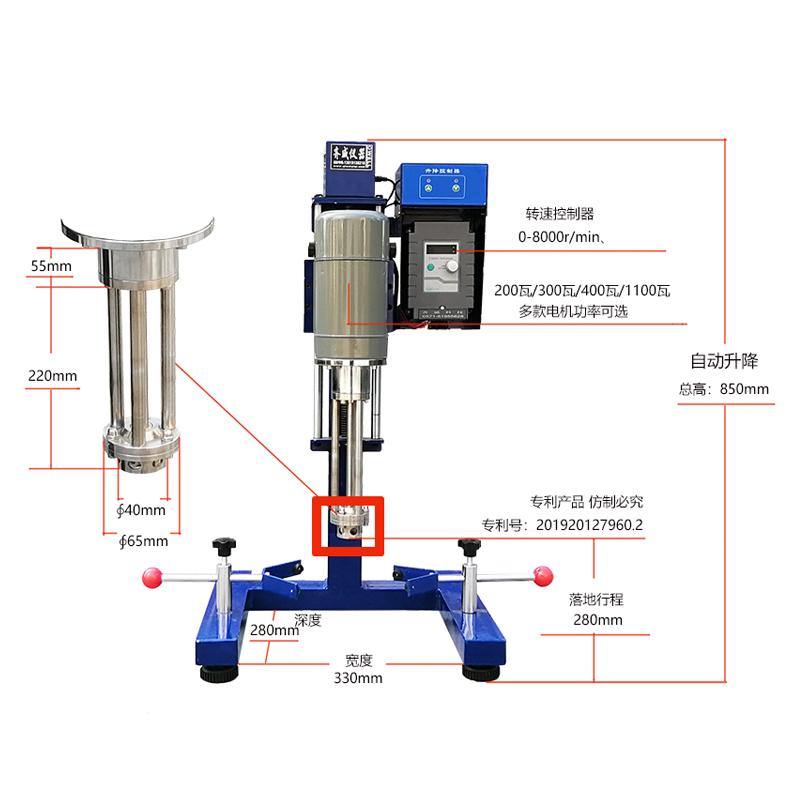

1. Adopt specially designed rotor and stator structures
2. Motor high speed drive, Speed range 100~ 8000rpm
3. Travel 270mm, flexible operation
4. Power 1100W, high processing efficiency
5. emulsification rod length 550mm, suitable for a variety of containers
Principle
After the material is sucked into the rotor, under the action of the high-frequency mechanical effect generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precise gap of the stator and rotor. The combined effects, such as hundreds of thousands of shears in a short time, make the insoluble material instantly achieve uniform and fine emulsification, crushing and dissolving effects.
Applications
Gluing agents, paints Coatings, Cosmetics, Food, Plastic Resins, Printing and dyeing, inks, asphalt
Steps
1. Connect the 220V/50HZ power supply
2. Rotation speed in the range of 100~ 8000rpm according to material characteristics
3. Use 270mm Lift Travel to adjust the emulsification rod position
4. Start the device for emulsification
5. Turn off the power after processing is completed
