Overview

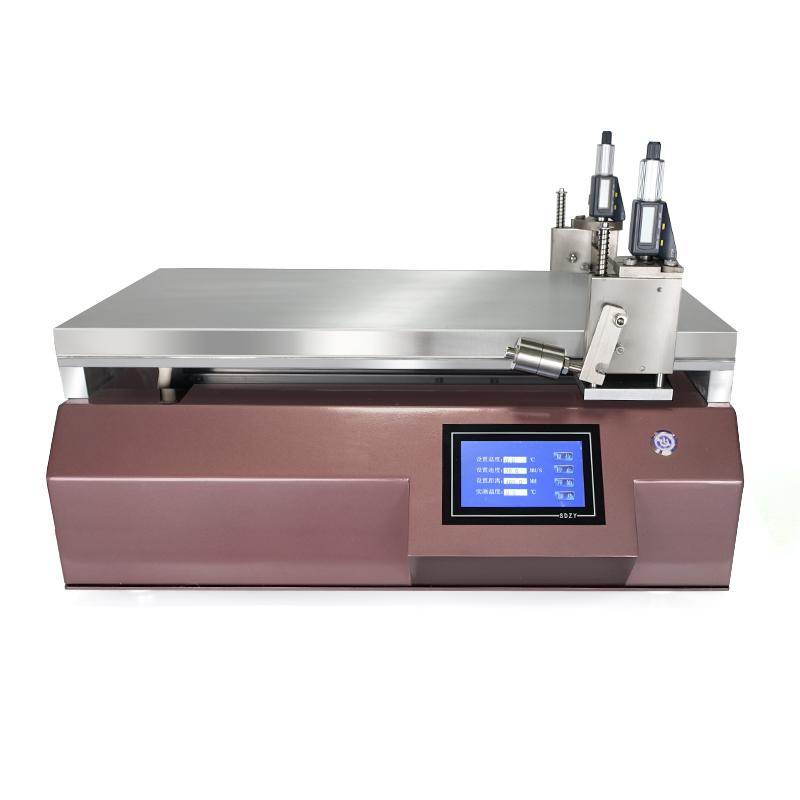

TBJ-X5-DJ6 Automatic Film Applicator is a small Lab Film Applicator for experiments. It adopts imported accessories and has a good price. It is favored by multinational R & D institutions, universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the gluing effect of the Spreader is guaranteed, the uniformity and smoothness are guaranteed, the problem of artificial film inconsistency is solved, and the film reproducibility is improved, which is convenient for Spreader to accurately wet-film on different substrates.
Features
1. Using imported accessories, the price is good and cheap; 2. Control speed and stable pressure to ensure the uniformity and smoothness of Spreader; 3. Improve film reproducibility and reduce manual differences; 4. Blade Coating method, drawdown blade removable, easy to clean, easy to replace; 5. Drawdown blade material is 316 stainless steel, wear-resistant and anti-corrosion; 6. Wide coating speed range, 5~ 200mm/s, support customization; 7. Large effective coating area, 400 * 300mm, can be customized; 8. Vacuum chuck is used for substrate fixing; 9. Control mode is Touchscreen control; 10. Optional Accessories and custom functions.
Principle
Automatic Film Applicator achieves accurate Spreader by controlling the speed of the Spreader and the pressure applied to the film applicator. Using Blade Coating, the drawdown blade is removable and made of 316 stainless steel, ensuring wear resistance and corrosion protection. The substrate is fixed by Vacuum chuck, and the Spreader process remains stable, thus ensuring the uniformity and smoothness of the Spreader coating and improving the film reproducibility.
Applications
Experimental research and development, university research, multinational enterprise R & D institutions
Steps
1. Prepare the substrate and place it on the Spreader stage; 2. Fix the substrate by Vacuum chuck; 3. Set the Spreader speed and pressure parameters; 4. Start the device for automatic Spreader; 5. Remove the sample for subsequent processing after completion.
Notice
• Check whether the power supply and connection of the equipment are normal before use; • Ensure that the substrate is firmly fixed to avoid displacement during the Spreader process; • Adjust the Spreader parameters according to the thickness of the substrate; • Regularly clean the drawdown blade and coating table to keep the equipment hygienic; • Pay attention to safety during operation and avoid touching the heating parts; • Optional accessories need to be configured according to actual needs.
