Overview

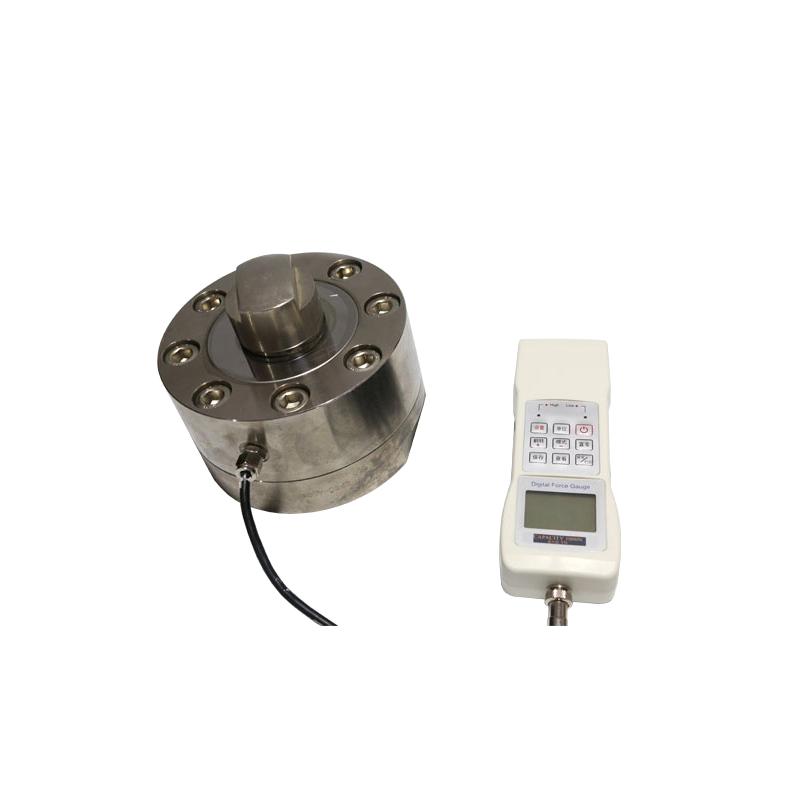

The Hypertherm HG-100K wheel amplitude tensometer is a digital display tensometer that can test large loads, with a maximum load value of 100K and a load Graduation of 0.05KN. The product uses an external spoke Sensor and a high-resolution LCD screen, which is suitable for a variety of push-pull load tests and failure tests.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ

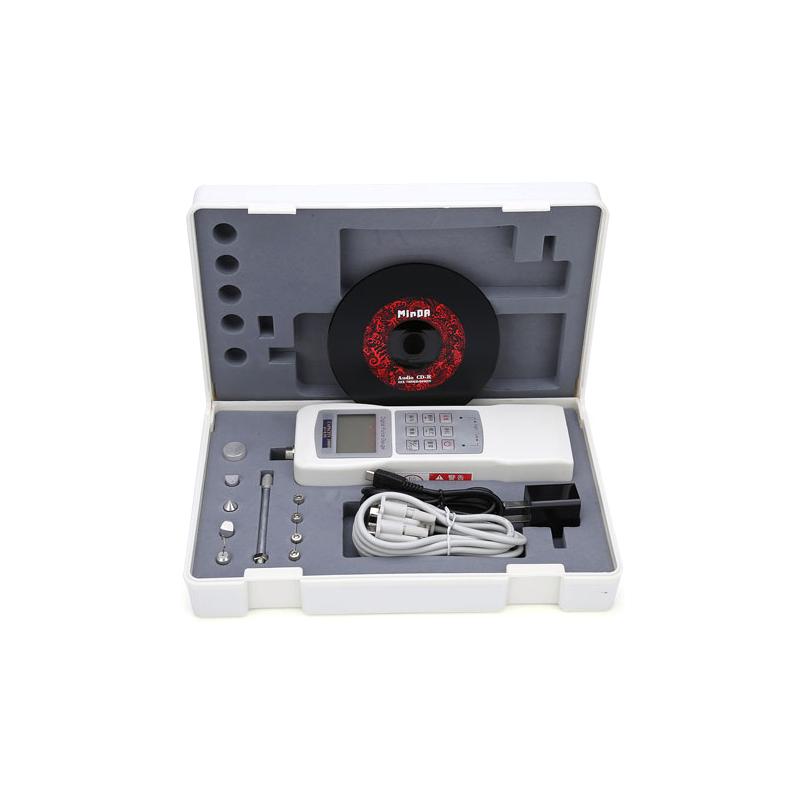

2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry

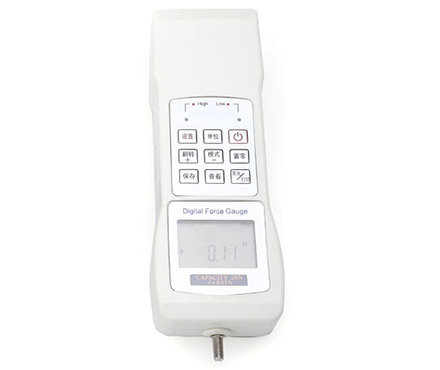

3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
The Hypertherm HG-100K wheel width tension meter detects the force value through an external spoke sensor and displays the data in real time using a high-resolution LCD screen. It supports a variety of test modes and unit conversions, and combines intelligent algorithms to realize Data storage, analysis and alarm functions to ensure test accuracy and Reliability.
Applications
Auto Parts, Fire Equipment, Chemicals, Machinery, Construction, Electronics
Steps
1. Connect the power supply and make sure the battery is charged.
2. Turn on the power switch of the device
3. Select the desired test mode and unit
4. Set the upper and lower limit comparison value, peak holding time and other parameters
5. Start the test and observe the force value in real time
6. After the test is completed, view and store the data
7. Use the host computer software to export data or generate reports
8. Power off the device
Notice
• Operating temperature in the range of 0~ 40 ℃
• Storage temperature should be kept at -20~ 70 ° C
• relative humidity control at 15%~ 80% RH
• Avoid use in vibration and corrosion environments
• Charge with a dedicated charger to extend Battery life
• Regularly check whether the equipment limit protection function is normal
• Confirm Sensors and Connections are not damaged before testing
• Follow the Operation Manual to set up and test to avoid misoperation
