Overview

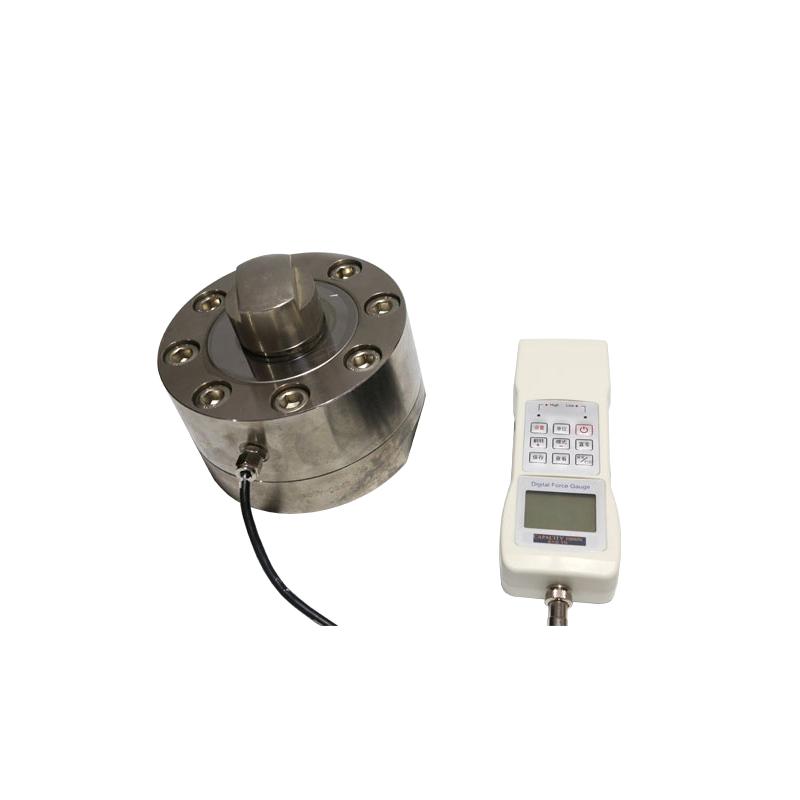

Hypertherm HG-200K Spoke Force Gauge is a digital display Force Gauge with a test load value of 200KN and a load Graduation of 0.1KN. It features a high-resolution LCD screen with a Sampling rate of 120HZ and 99 sets of test Data storage memory for easy data recording.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
HG-200K Spoke Force Gauge performs force value measurement through external Sensor structure, adopts ADC conversion technology, and the conversion speed range is 15Hz~ 480Hz. It collects force value data in real time, displays it through high-resolution LCD screen, and supports various test modes and data processing functions to ensure test accuracy and Stability.
Applications
Auto Parts, Fire Equipment, Chemicals, Machinery, Construction, Electronics
Steps
1. Connect Force Gauge to testing device or fixture
2. Turn on the power and select the desired unit (N, KN, Kgf, gf, lbf, tf)
3. Set the test mode (real-time force tracking, peak hold, or first peak mode)
4. Set the upper and lower limit comparison value, peak holding time, gravitational acceleration value or automatic shutdown time as needed
5. Start the test and observe the force data and direction indication on the display
6. Test data is automatically stored, and reports can be viewed, exported, or generated through the host computer software
7. After the test, turn off the power and store the device properly
Notice
- Ensure that the Ambient Temperature is in the range of 0~ 40 ℃ to avoid vibration and corrosion medium
- Storage temperature should be kept at -20~ 70 ℃, relative humidity 15%~ 80% RH
- Charge with a dedicated charger, input AC 220V/50HZ, output DC 5V/1A
- Avoid over-range use and pay attention to the limit protection function
- Regularly check the battery status and use smart charging to extend Battery life
- Use EVA Shockproof Encasement during transportation and storage to prevent equipment damage
