Overview

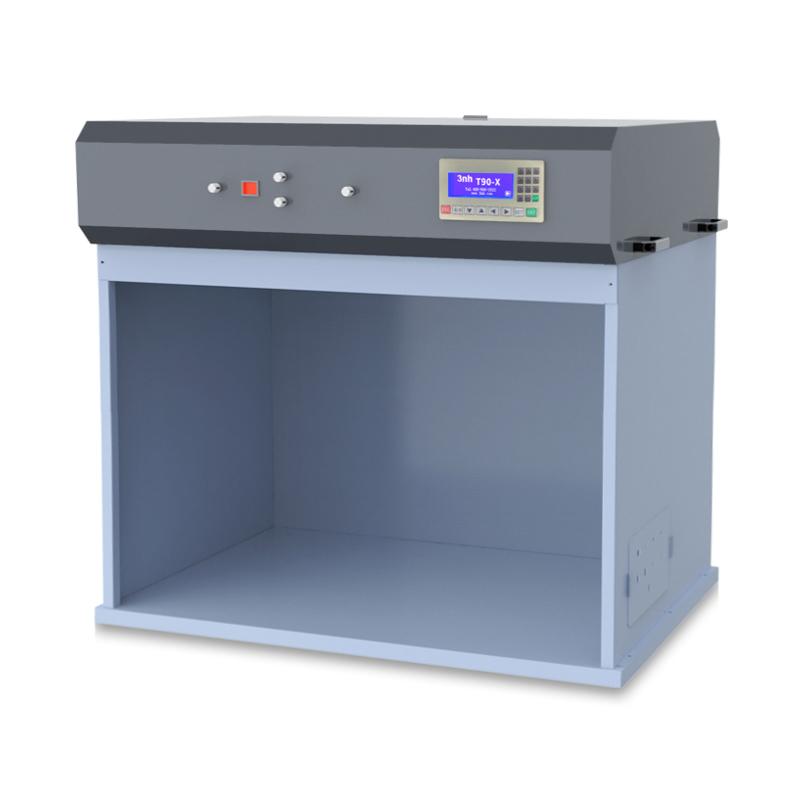

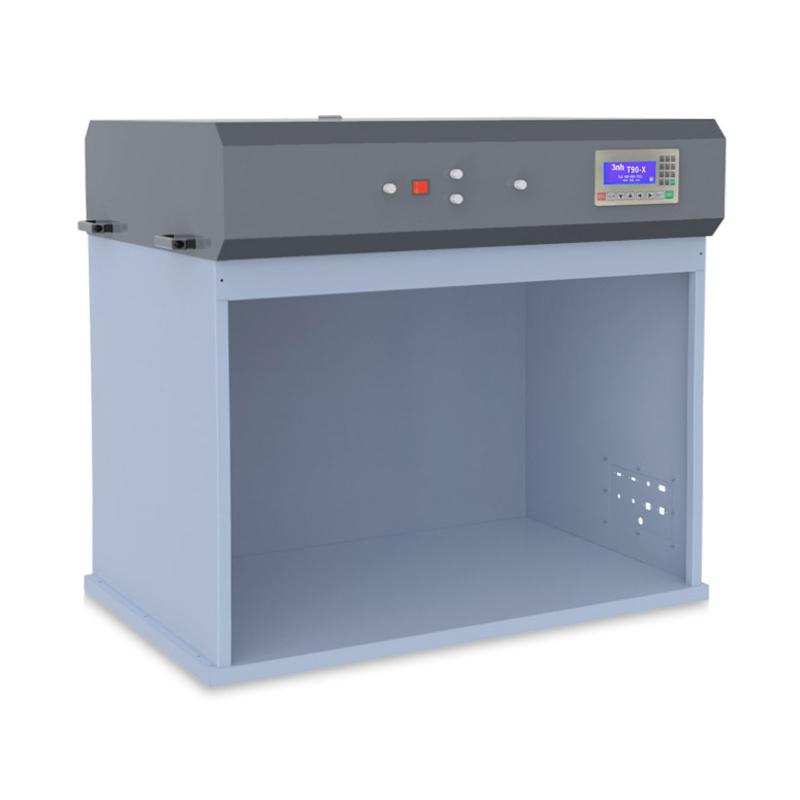

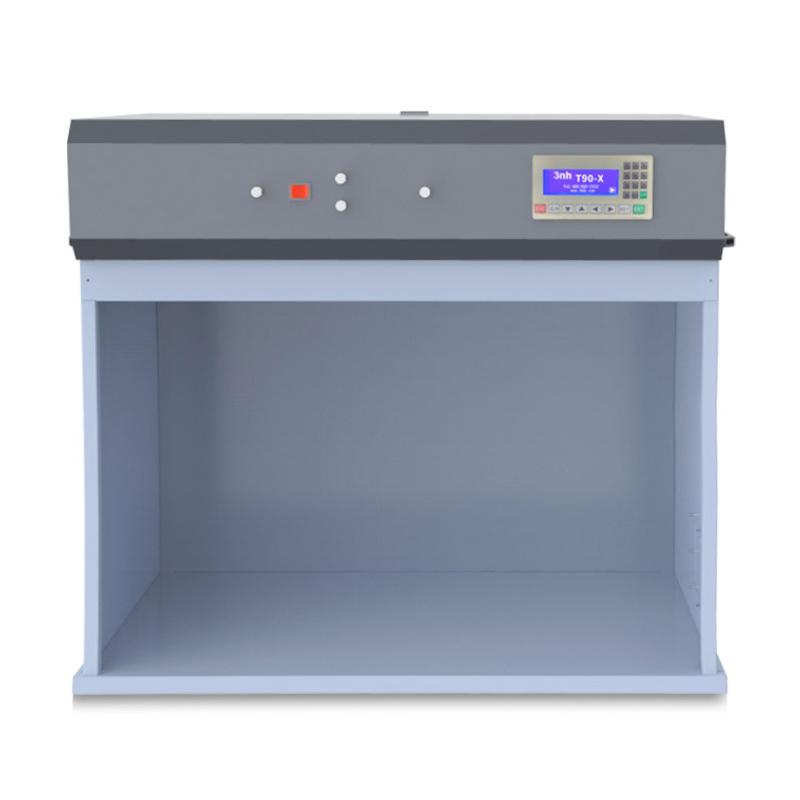

T90-X camera light box is an Illuminant box that provides lighting environment for graphic cards in image detection. Color temperature is adjustable, illuminance is adjustable, Frequency is adjustable, and almost all test conditions are met. By simulating different test environments, the objective indicators of imagery equipment under different conditions can be objectively evaluated.
Features
1. Color temperature adjustable, Color temperature adjustable range: 2300K-8000K.
2. Adjustable illumination, dimming range: 0-13,000 Lux.
3. Frequency adjustable, Frequency adjustment range: 1--100KHz.
4. It can be connected to the computer wirelessly through R485 to USB cable or through WIFI, and controlled by the host computer software (the host computer software is an optional accessory).
5. Lifespan of more than 10,000 hours.
Principle
Color temperature, Illuminance and Frequency parameters are adjusted to provide adjustable lighting environment for image cards in image detection, and different test conditions are simulated to evaluate the performance of imagery equipment.
Applications
image detection
Steps
1. Connect power supply: use AC220~ 240V, 50/60Hz power supply.
2. Connection control: Connect to the computer wirelessly through R485 to USB cable or WIFI.
3. Use the host computer software (optional accessories) for parameter control: adjust Color temperature, Illumination and Frequency.
4. Open the light box for image detection.
Notice
• The power requirements are AC220~ 240V, 50/60Hz.
• Power is 400W, make sure the power supply matches.
• The fuse specification is F3AL250V (5 * 20mm), and the correct specification must be used.
• The upper computer software is an optional accessory and requires additional configuration.
• The overall size of the light box is 1008 * 704 * 898mm, and the size of the observation box is 895 * 600 * 658mm to ensure sufficient installation space.
• With a lifespan of more than 10,000 hours, pay attention to regular maintenance.
