Overview

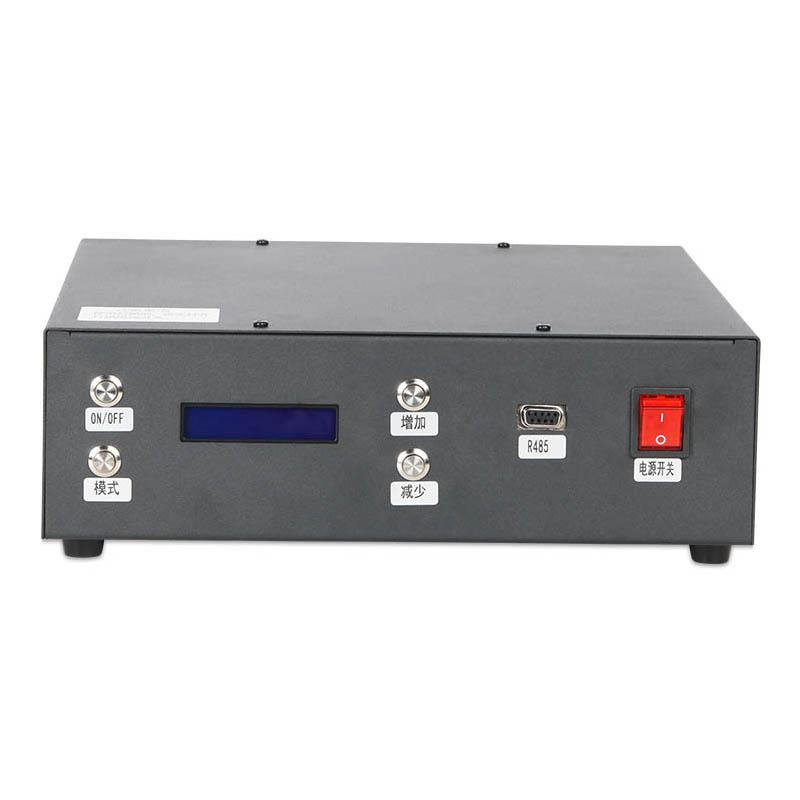

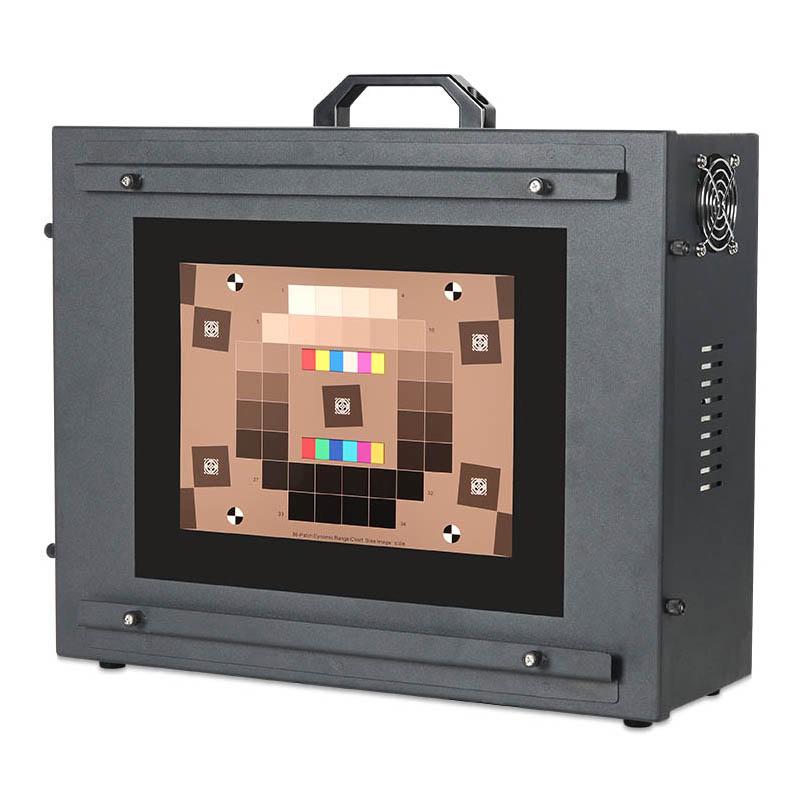

T25900 + transmission light box is a special light box for camera testing. It is mainly composed of box body, handle, test card slot, transmission panel, Illuminant switch, test card fixing screw, power socket, power switch, Illuminant control box and other components. LED Illuminant with high power, high illumination, no stroboscopic, long life and stable Color temperature provides a professional lighting environment for camera lens evaluation system.
Features
1. Transmission surface uniformity > 93%
2. Color temperature adjustable range: 2300K-8000K
3. Illumination adjustable range: 0-160,000 Lux
4. Frequency adjustable range: 1--100KHz
5. It can be connected to the computer wirelessly through R485 to USB cable or through WIFI, and controlled by the host computer software
6. Lifespan of more than 10,000 hours
Principle
The transmission light box provides a professional lighting environment for the camera lens evaluation system by using LED Illuminant with high power, high illumination, no stroboscopic, long life and stable Color temperature. It can be connected to the computer through R485 to USB cable or WIFI wireless, and controlled by the host computer software to achieve accurate adjustment of Color temperature, Illuminance and Frequency.
Notice
1. Operating Environment: 0-28 ℃, relative humidity below 85% (non-condensing)
2. Input voltage: AC210-240V 50/60Hz Maximum Power Consumption 250W
