Overview

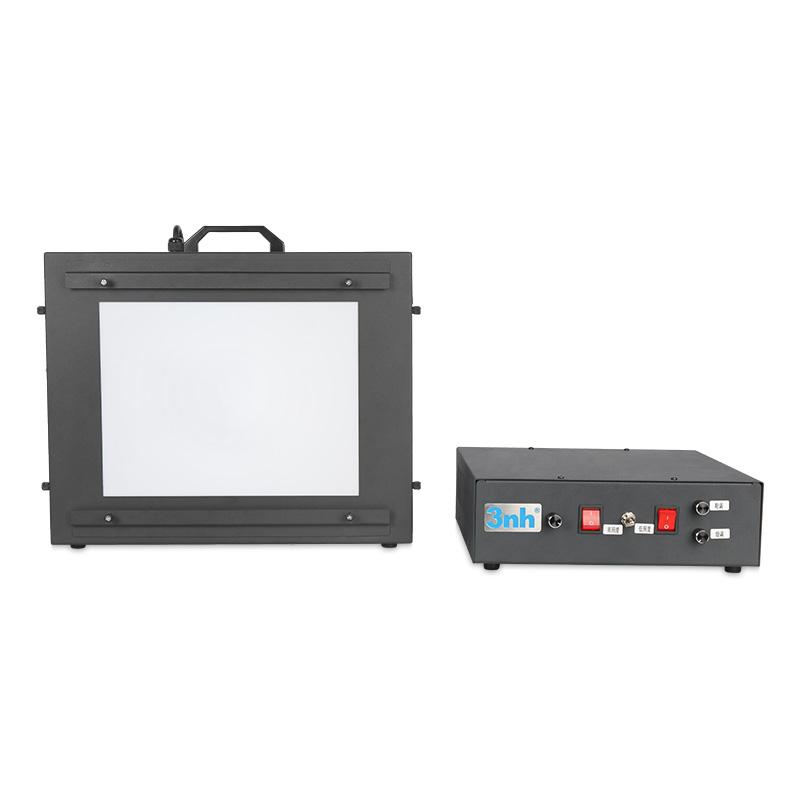

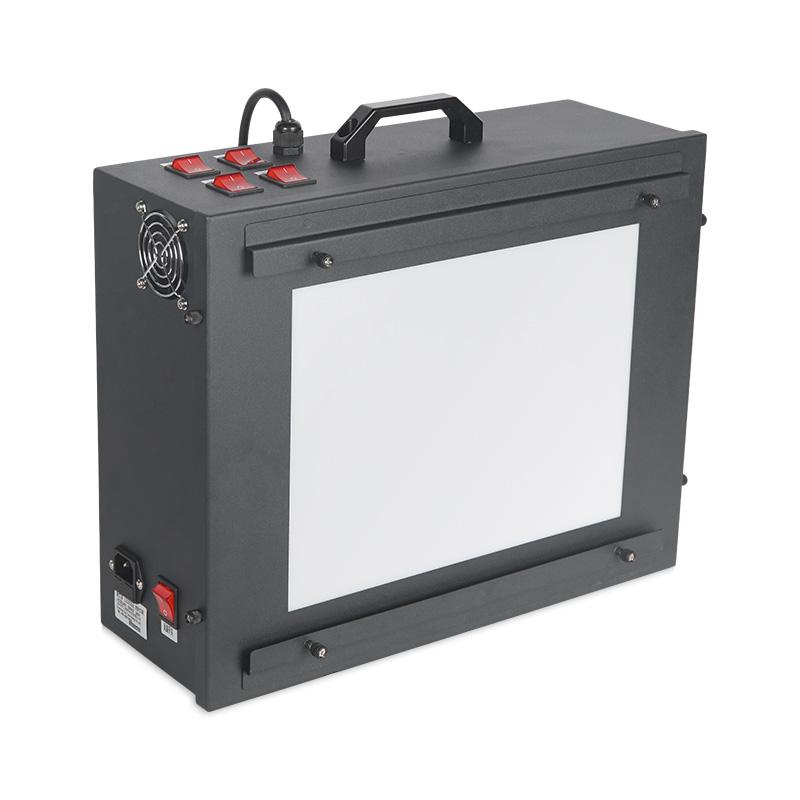

T259004 High Illumination/4 Color temperature transmission light box is a special light box for camera testing. It adopts LED Illuminant with high power, high illuminance, no stroboscopic, long life and stable Color temperature to provide a professional lighting environment for the camera lens evaluation system. The light box is mainly composed of box body, handle, test card slot, transmission panel, Illuminant switch, test card fixing screw, power socket, power switch, Illuminant control box and other components.
Features
1. Transmission surface uniformity > 90%
2. Standard 4-speed Color temperature 3100K +/- 200K, 6500K +/- 200K, 4150K +/- 200K, 5000K +/- 200K, Miscellaneous Color temperature needs to be customized
3. Adjustable illuminance, dimming range 0-120000Lux, divided into high illuminance dimming file and low illuminance dimming file
4. The low-light dimming file includes two dimming knobs, thick and thin, and the dimming is more accurate.
5. Stable light color, no stroboscopic, lifespan of more than 10,000 hours
Principle
The transmitted light box produces stable stroboscopic illumination through LED Illuminant, and the rays of light are evenly projected through the transmission panel to provide a standardized lighting environment for camera testing. The color temperature and illuminance parameters can be precisely adjusted through the Illuminant control box to meet the needs of different test conditions.
Steps
1. Connect the power socket to the AC110-240V power supply
2. Turn on the power switch

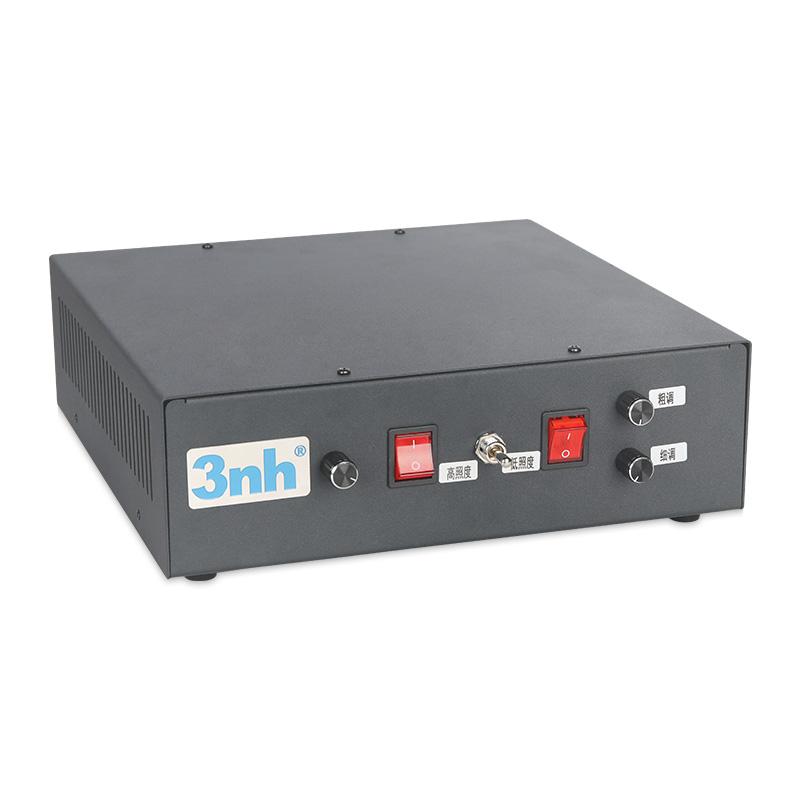

3. Select the desired Color temperature gear through the Illuminant control box
4. Use the dimming knob to adjust the illumination to the desired level

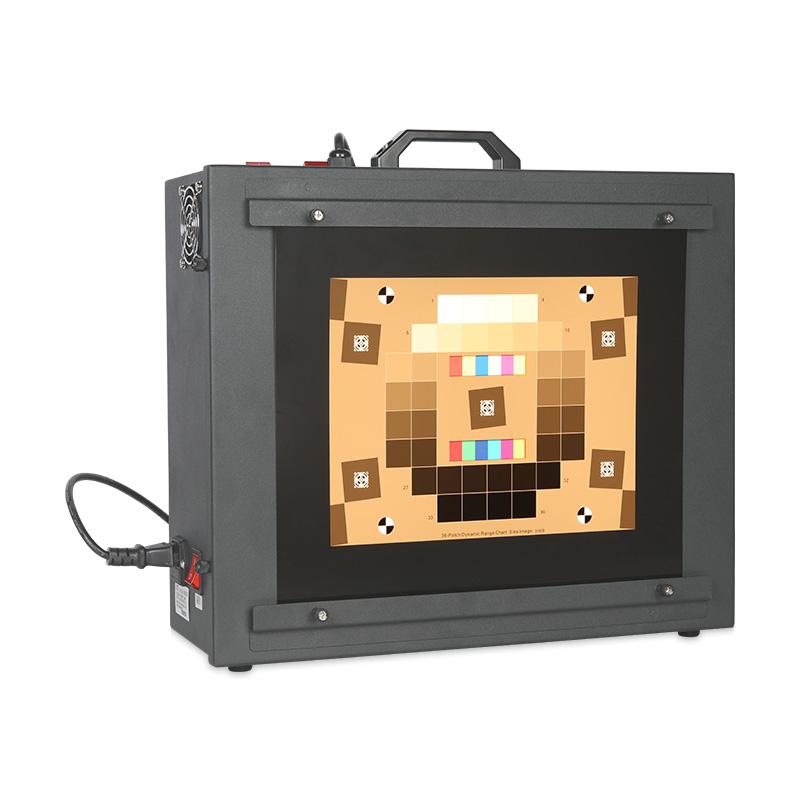

5. Put the test card into the test card slot and fix it with fixing screws
6. Turn on the Illuminant switch to start the test
Notice
• Operating Environment Temperature should be in the range of 0-28 ℃
• The relative humidity should be kept below 85% (non-condensing)
• Maximum Power Consumption is 250W, please do not overload
• Miscellaneous Color temperature requirements need to be customized in advance
• Please follow the operation steps to use the equipment correctly
