Overview

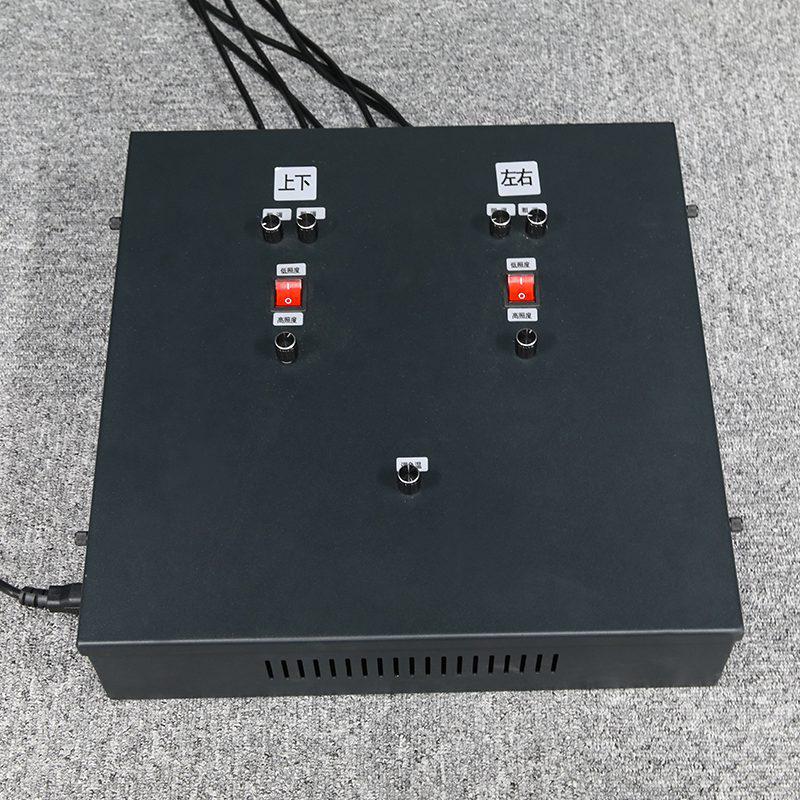

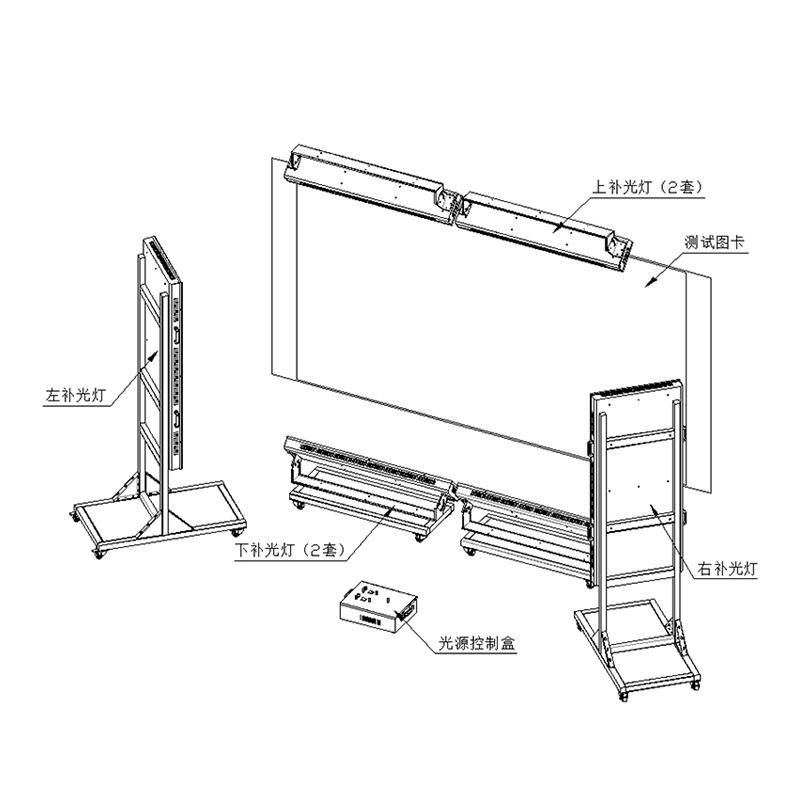

T8B-X adjustable illuminance/color matching temperature transparent fill light box is a special fill light box for camera testing. It is mainly composed of upper fill light (2 sets), lower fill light (2 sets), left fill light, right fill light and Illuminant control box. This product adopts high power, high illumination, no stroboscopic, long life, Color temperature stable LED Illuminant, which provides a professional lighting environment for the camera lens evaluation system and is suitable for the test of large size graphics cards.
Features
1. Uniform illumination surface, flexible movement according to different needs, adjust the position and angle of each light box to obtain suitable illumination uniformity
2. Color temperature adjustable, Color temperature adjustable range: 2300K-8500K
3. The illuminance is adjustable, and the dimming is divided into high-illuminance dimming files and low-illuminance dimming files. The low-illuminance dimming files include two dimming knobs, thick and thin, and the dimming is more accurate. The illuminance adjustment range is 0 to 3000LX.
4. Stable light color, no stroboscopic, lifespan of more than 10,000 hours
5. Easy to operate
6. Users can freely combine according to their needs, and can choose only two left and right filling lights or only four up and down filling lights
Principle
The product adopts high power, high illumination, no stroboscopic, long life, Color temperature stable LED Illuminant, and adjusts the illuminance and Color temperature through the Illuminant control box to provide a professional lighting environment for the camera lens evaluation system.
Notice
• The maximum illumination is related to the placement of the light box, subject to the actual test
• Users can freely combine left and right filling lights or up and down four filling lights according to their needs
