Overview

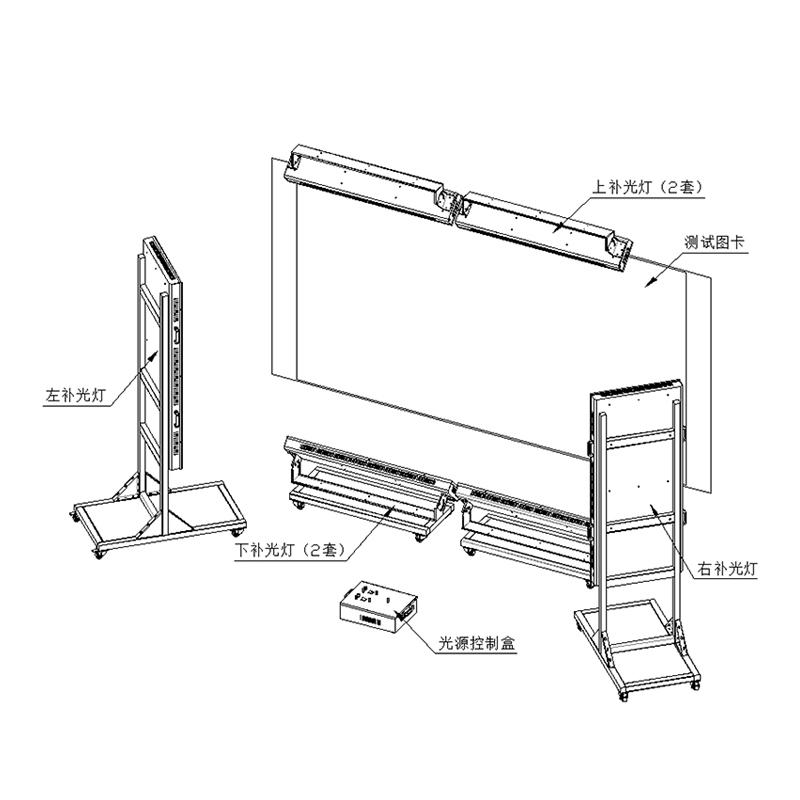

T8B-X (4) adjustable illuminance/color matching temperature transparent fill light box is a special fill light box for camera testing. It is mainly composed of upper fill light (2 sets), lower fill light (2 sets), left fill light, right fill light and Illuminant control box. This product adopts high-power, high-illumination, no stroboscopic, long-life, Color temperature stable LED Illuminant, which provides a professional lighting environment for the camera lens evaluation system and is suitable for large-size graphic card testing.
Features
1. Uniform illumination surface, flexible movement according to different needs, adjust the position and angle of each light box to obtain suitable illumination uniformity
2. Color temperature adjustable, Color temperature adjustable range: 2300K-8500K
3. The illuminance is adjustable, and the dimming is divided into high-illuminance dimming files and low-illuminance dimming files. The low-illuminance dimming files include two dimming knobs, thick and thin, and the dimming is more accurate. The illuminance adjustment range is 0 to 3000LX.
4. Stable light color, no stroboscopic, lifespan of more than 10,000 hours
5. Easy to operate
6. Users can choose only two left and right filling lights or only four up and down filling lights according to their needs, and freely combine to achieve suitable results
Principle

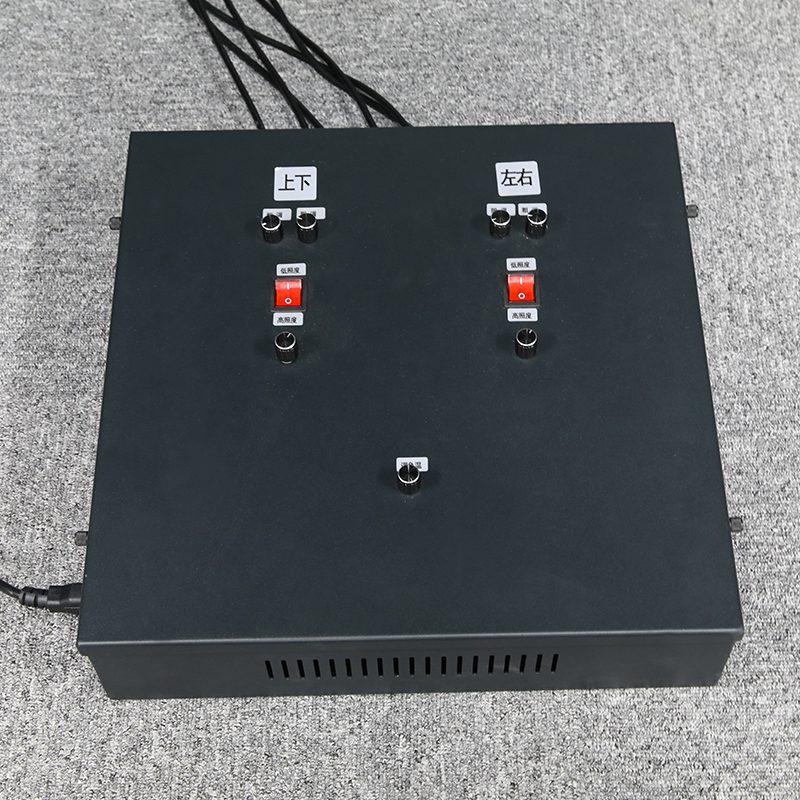

This product adjusts the illumination and Color temperature of the LED Illuminant through the Illuminant control box to provide a uniform and stable lighting environment for the camera lens test. Users can flexibly adjust the position and angle of each fill light according to the test requirements to obtain the ideal lighting effect.
Specifications
Color temperature range: 2300K-8500K, illumination range: 0-3000LX, life: more than 10,000 hours
