Overview

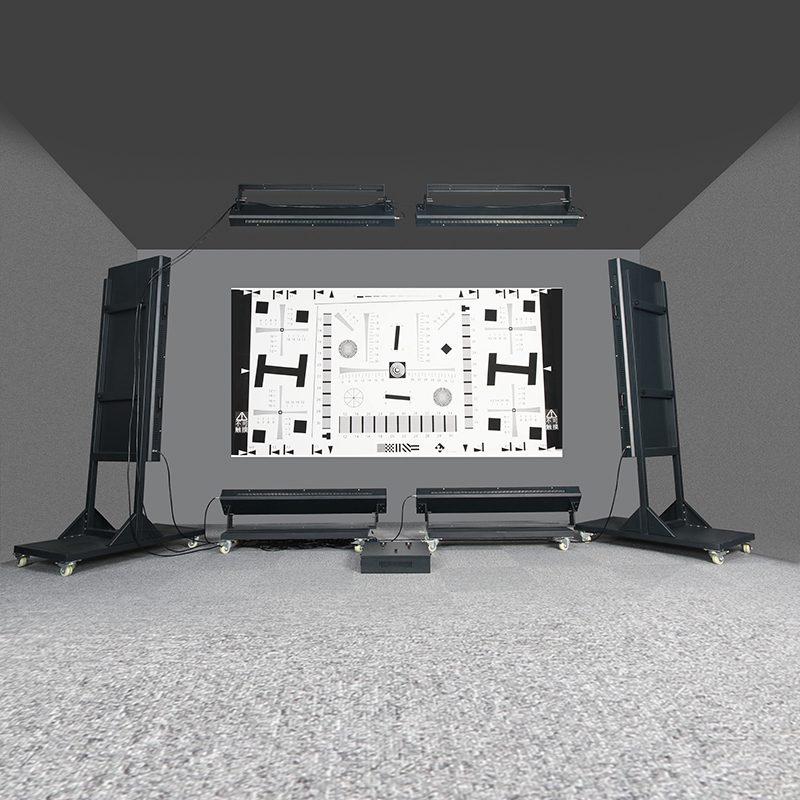

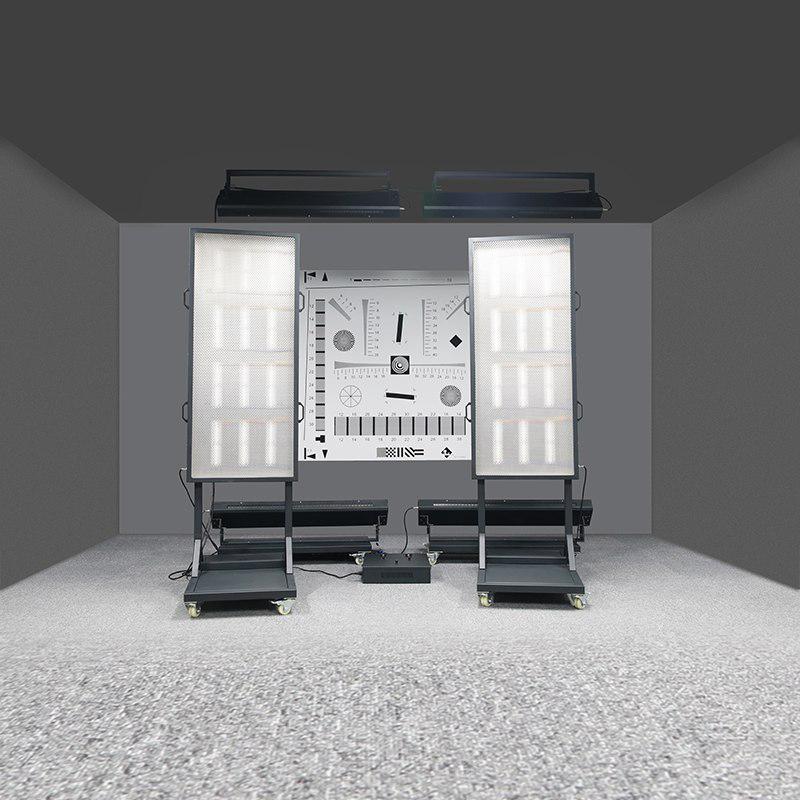

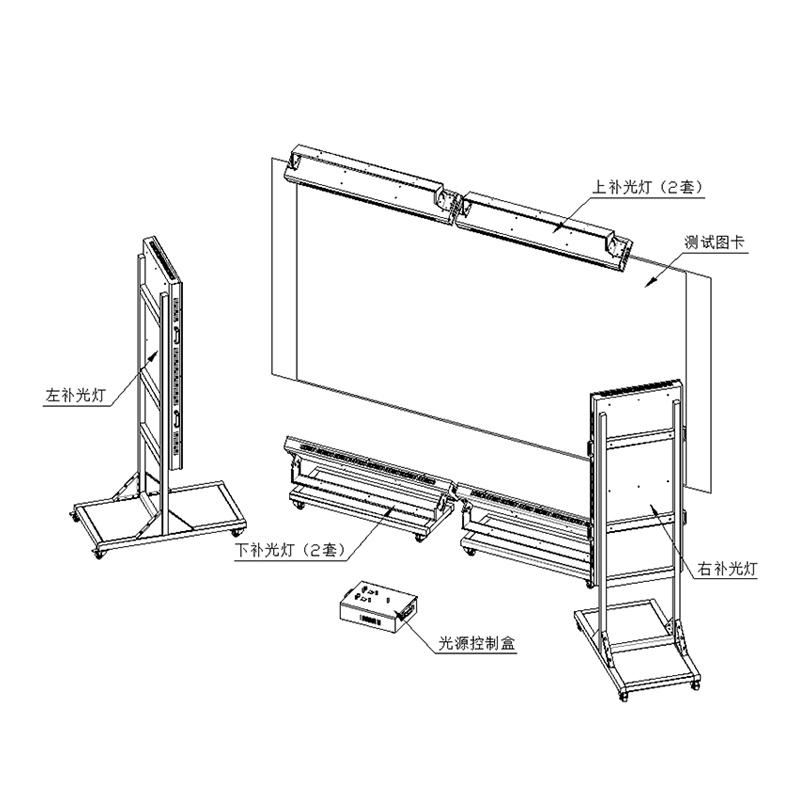

T8B-X (6) fill light is a special fill light box for camera testing. It is mainly composed of upper fill light (2 sets), lower fill light (2 sets), left fill light, right fill light and Illuminant control box. LED Illuminant with high power, high illumination, no stroboscopic, long life and stable Color temperature provides a professional lighting environment for camera lens evaluation system and is suitable for testing large size graphics cards.
Features
1. The irradiation surface is uniform, and it can move flexibly according to different needs, adjust the position and angle of each light box, and obtain suitable light uniformity.
2. Color temperature adjustable, range 2300K-8500K.
3. The illuminance is adjustable, divided into high-illuminance dimming file and low-illuminance dimming file. The low-illuminance file includes two dimming knobs, thick and thin, and the adjustment is more accurate, with a range of 0-3000LX.
4. Stable light color, no stroboscopic, with a lifespan of more than 10,000 hours.
5. Easy to operate.
6. Can be freely combined according to demand, such as only two left and right filling lights or only four up and down filling lights.
Principle

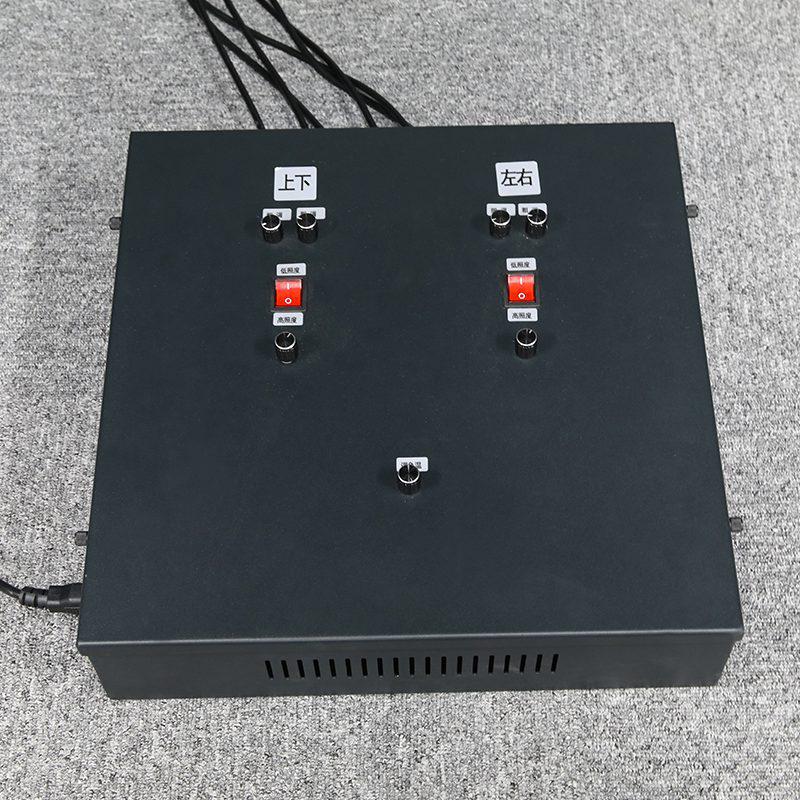

The product provides stable lighting through LED Illuminant, and the Illuminant control box adjusts the color temperature and illuminance. The illuminance adjustment is divided into high-illuminance and low-illuminance grades. The low-illuminance grades are precisely controlled by thick and thin knobs to ensure uniform lighting without stroboscopic.
Applications
Camera test, large size graphic card test
Steps
1. Select the filling light combination as needed (such as left and right two or up and down four).
2. Move and adjust the position and angle of the light box to achieve uniform lighting.
3. Adjust the Color temperature to the desired range (2300K-8500K) through the Illuminant control box.
4. Select a high-illumination or low-illumination dimming file, use the knob to adjust the illumination (0-3000LX), and the low-illumination file can be accurately adjusted with thick and thin knobs.
Notice
• The maximum illumination is related to the placement of the light box, subject to the actual test.
• Users can freely combine fill lights according to their needs to achieve suitable results.
