Overview

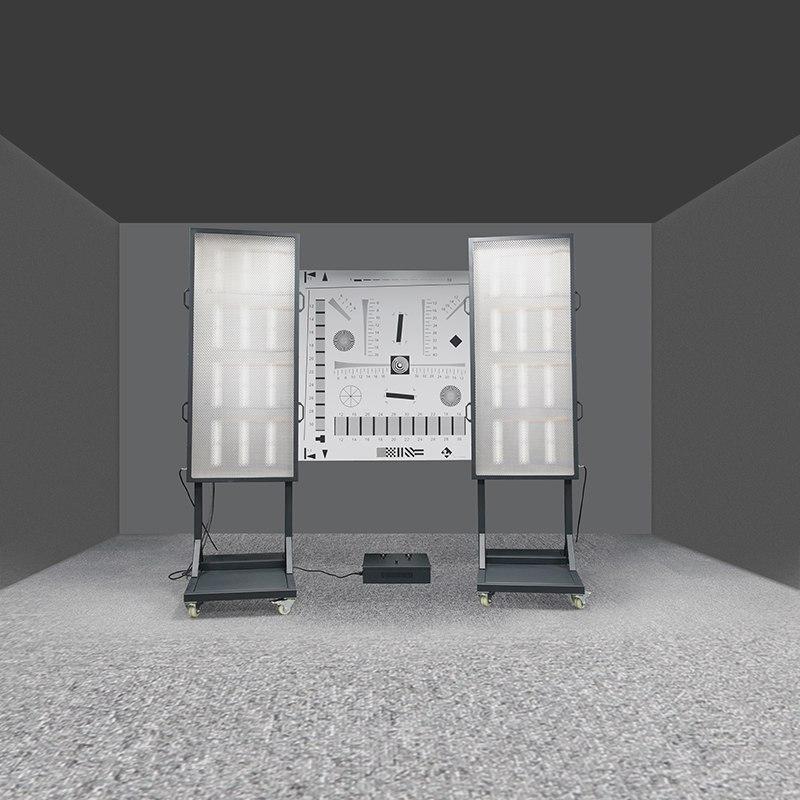

T8B-X-HW photography fill light box is a special fill light box for camera testing, providing adjustable illuminance/color matching temperature visible light and infrared light. It is mainly composed of left and right fill light and Illuminant control box. It adopts high power, high illuminance, no stroboscopic, long life, Color temperature stable LED Illuminant to provide a professional lighting environment for the camera lens evaluation system, which is suitable for the test of large size graphics cards.
Features

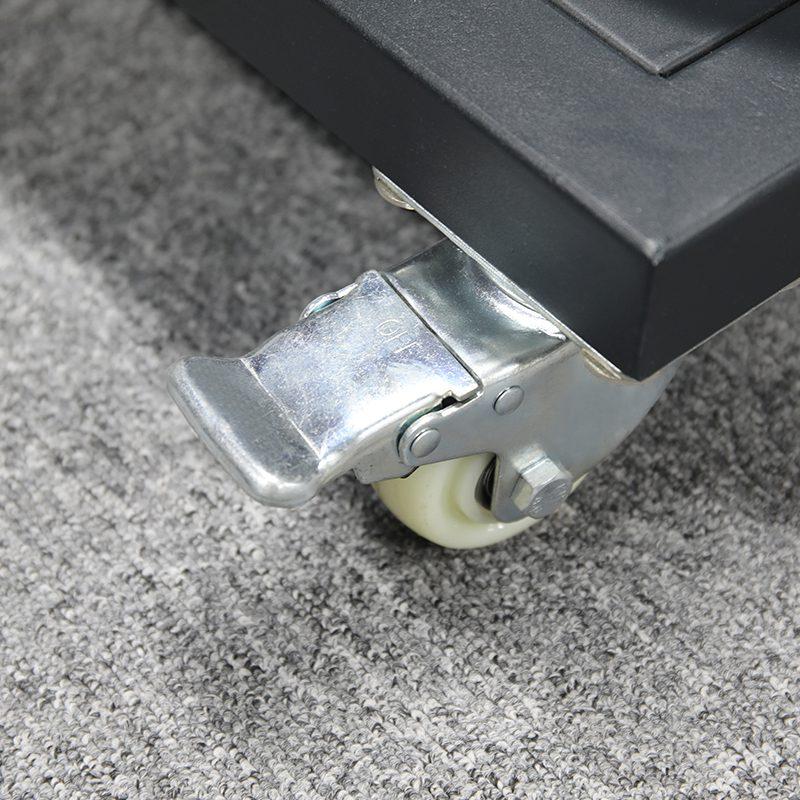

1. Uniform illumination surface, flexible movement, adjust the position and angle of the light box to obtain suitable illumination uniformity
2. Illuminant light box consists of visible light and infrared light
3. Visible light color temperature adjustable range 2300K-8000K
4. The illuminance is adjustable, divided into high-illuminance dimming file and low-illuminance dimming file. The low-illuminance file contains two dimming knobs, thick and thin, and the dimming is more accurate.
5. The illuminance adjustment range is 0.5 meters from the light box transmission surface 0 to 3000LX (the highest illuminance is related to the placement of the light box)
6. Stable light color, no stroboscopic, lifespan of more than 10,000 hours
7. Infrared light standard wavelength 850nm LED Illuminant, optional Miscellaneous wavelength, adjustable radiation intensity, 0.5 meters away from the light box light transmission surface radiation intensity greater than 400uW/CM2
8. Easy to operate
Principle

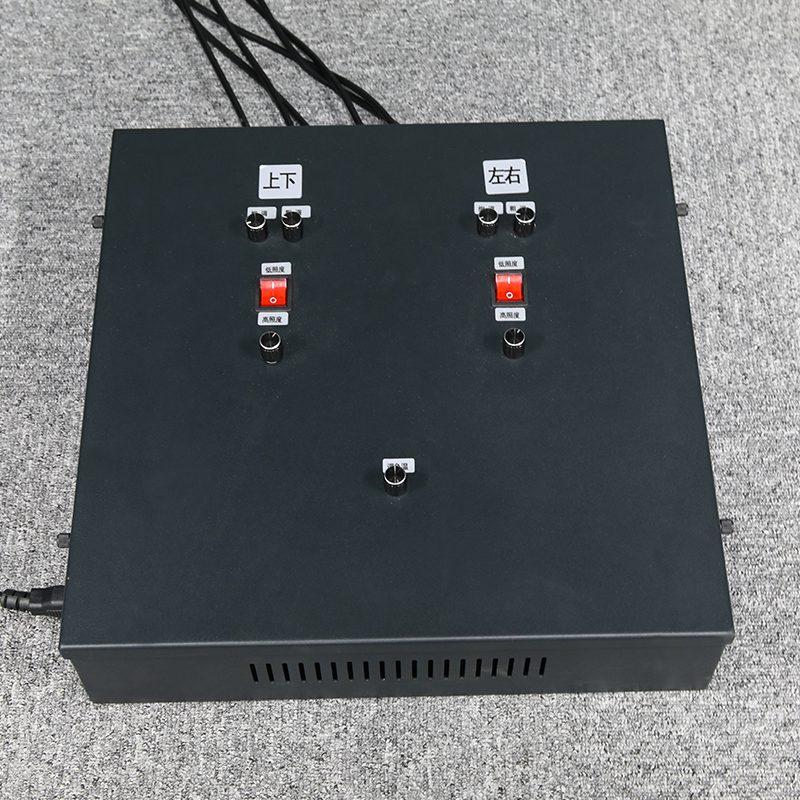

The product provides uniform illumination through left and right fill lights, and the Illuminant control box adjusts the color temperature and illuminance of visible light and the irradiation intensity of infrared light. Visible light uses high-Stability LED to achieve stroboscopic lighting, and infrared light is emitted through specific wavelength LEDs to provide a professional lighting environment for camera testing.
Applications
Camera test, large size graphic card test
Steps
1. Connect power supply AC 220V 50/60Hz
2. Move and adjust the position and angle of the left and right fill light boxes as needed
3. Adjust the visible light color temperature through the Illuminant control box (2300K-8000K)
4. Select a high-illumination or low-illumination dimming file, and use the coarse and fine dimming knobs to precisely adjust the illuminance
5. Adjust the infrared light irradiation intensity
Notice
• The maximum illumination is related to the placement of the light box, subject to the actual test
• Operating Environment Temperature 0-28 ℃, relative humidity below 85% (non-condensing)
• Maximum Power Consumption 500W (optional 250W)
• Left and right fill lights are exactly the same, interchangeable positions
