Overview

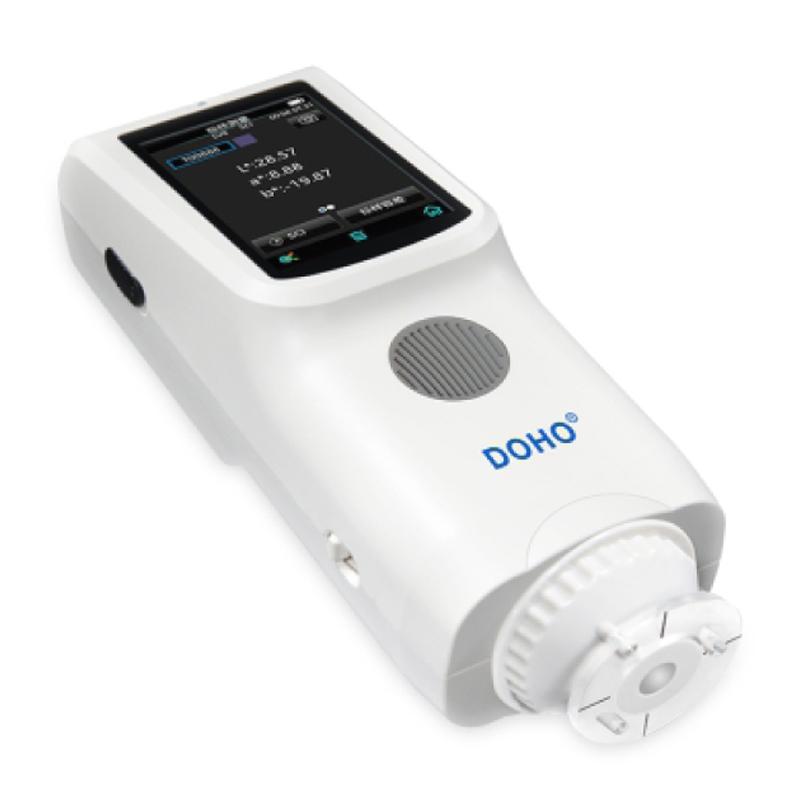

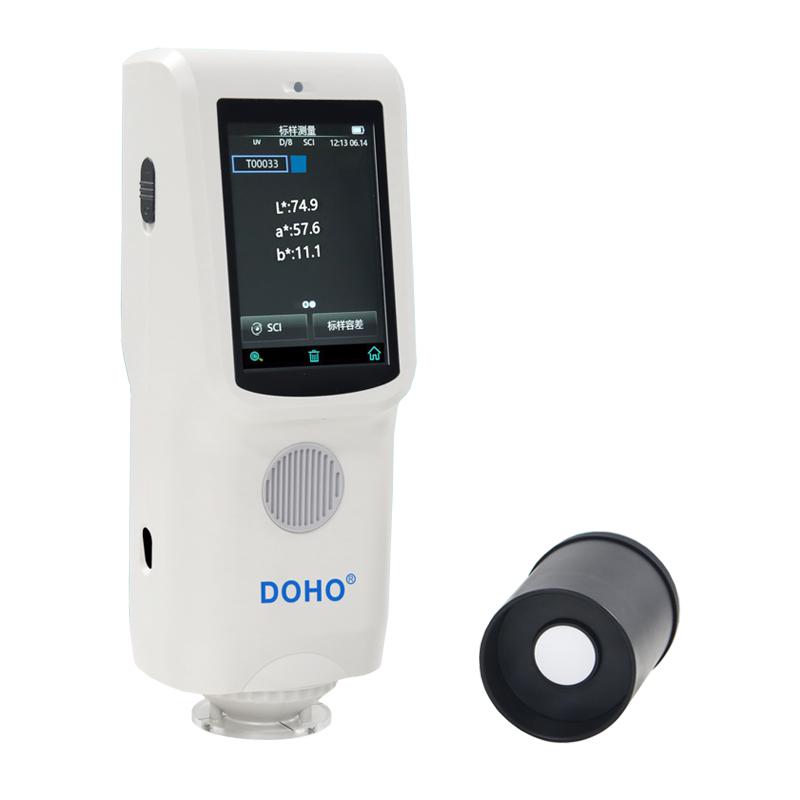

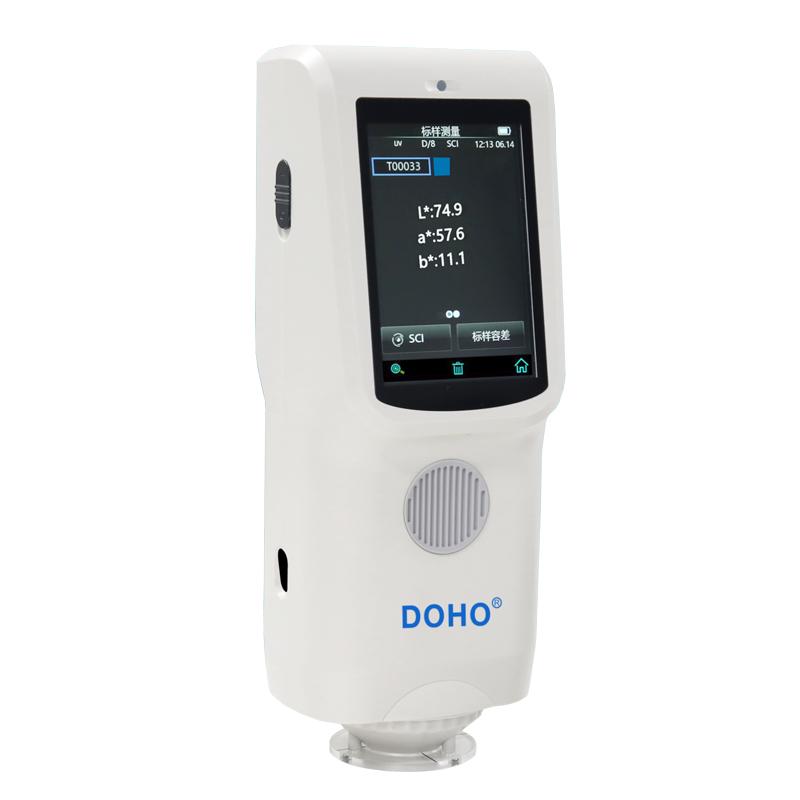

DS300 Portable color difference meter adopts independent spectroscopic core technology to ensure the long-term accuracy of relative color difference Delta E and absolute values L, A, B, and supports measurement through international and national standards at any time.
Features
1. Adopt international general D/8 SCI/SCE synthesis technology
2. Full Band EQ LED Illuminant Measurement speed and accuracy
3. Silicon Photodiode Array (Dual 32 Array) Sensor
4. Color measurement spaces and observation Illuminants to meet different needs
5. Measurement verification report for each instrument to ensure Reliability
6. Innovative ETC real-time calibrating technology
7. Camera viewfinder positioning clearly observe the measurement area
8. Extended functionality with CQCS3 quality management software
Principle
The instrument adopts planar grating spectroscopic mode, through the combination of full Light spectrum LED Illuminant illumination, silicon photodiode array sensor receives the signal, and conducts spectroscopic measurement in the 400~ 700nm Wavelength range, while testing SCI/SCE data.
Applications
Plastics, electronics, paints, inks, Spinning & weaving garment printing and dyeing, printing paper products, automotive, medical, cosmetics, food
Standards
CIE No.15、GB/T3978、GB2893、GB/T18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Use the camera to view and locate the measurement area
2. Select Single or Average Measurement mode
3. Perform black and white correction
4. Perform measurement operations
5. View displayed Light spectrum, chromatic values or color difference results
6. Transfer data to management software via USB interface
Notice
• Operating Temperature range 0~ 40 ℃, Humidity 0~ 85% RH No condensation
• Storage Temperature range -20~ 50 ℃, Humidity 0~ 85% RH No condensation
• The use altitude should be less than 2000m
• Preheating correction is required before measurement
• Regularly calibrate with Standard Accessories
Avoid using instruments in extreme environment conditions
