$ 4184.00Ex works
Using ETC real-time calibrating technology and dual 32 array Sensor, measurement diaMeter Φ 4mm/Φ 8mm, Repeatability Delta E * ab 0.05, support SCI/SCE simultaneous testing and camera viewfinder positioning.
Category : Color Spectrophotometer
Brand : 3NH
SKU : NB047096
Service :The delivery and service By NBCLab.Com

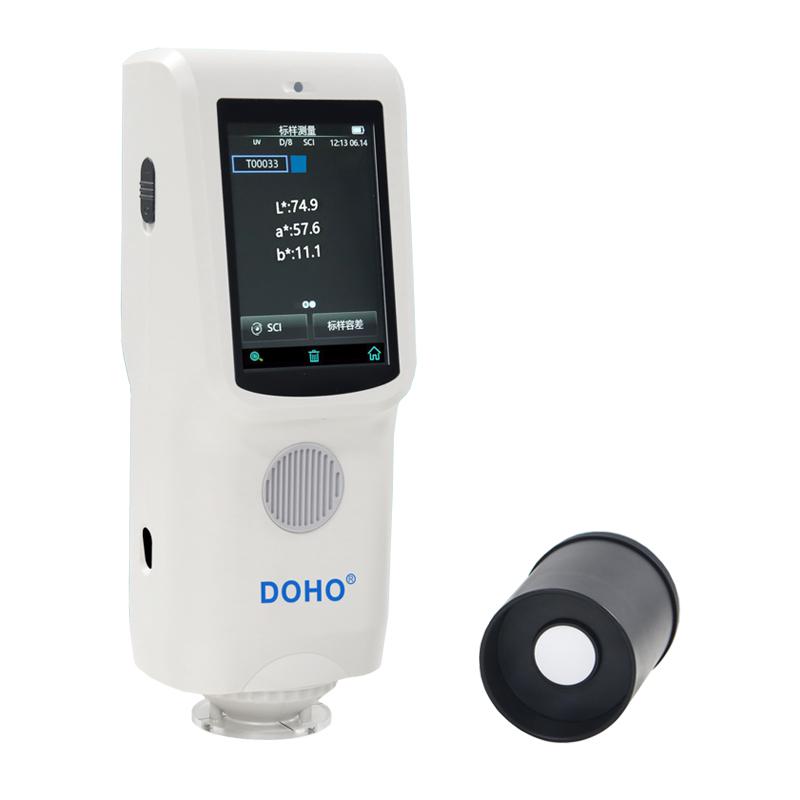

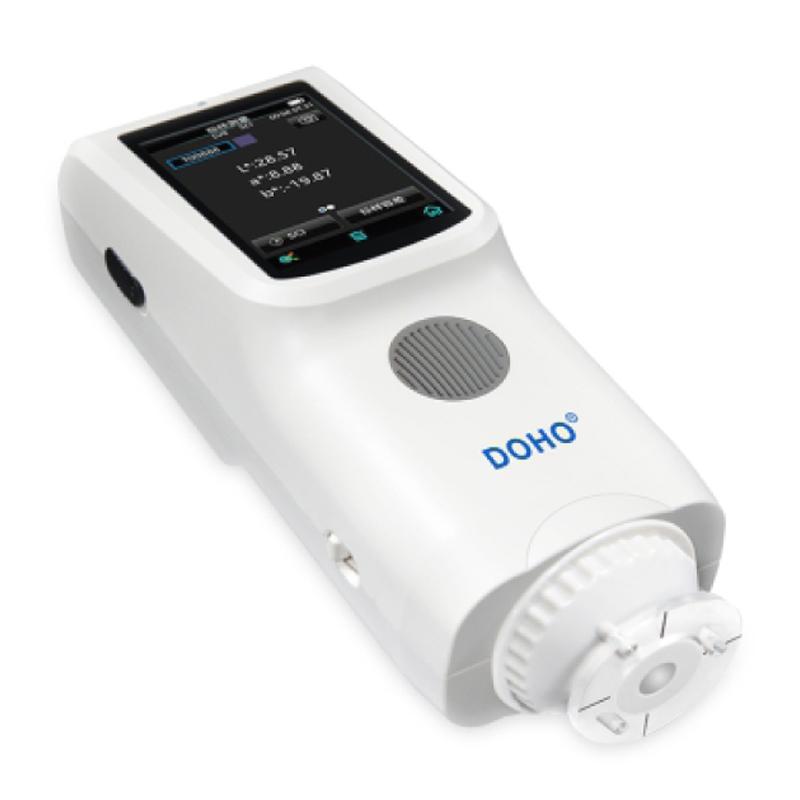

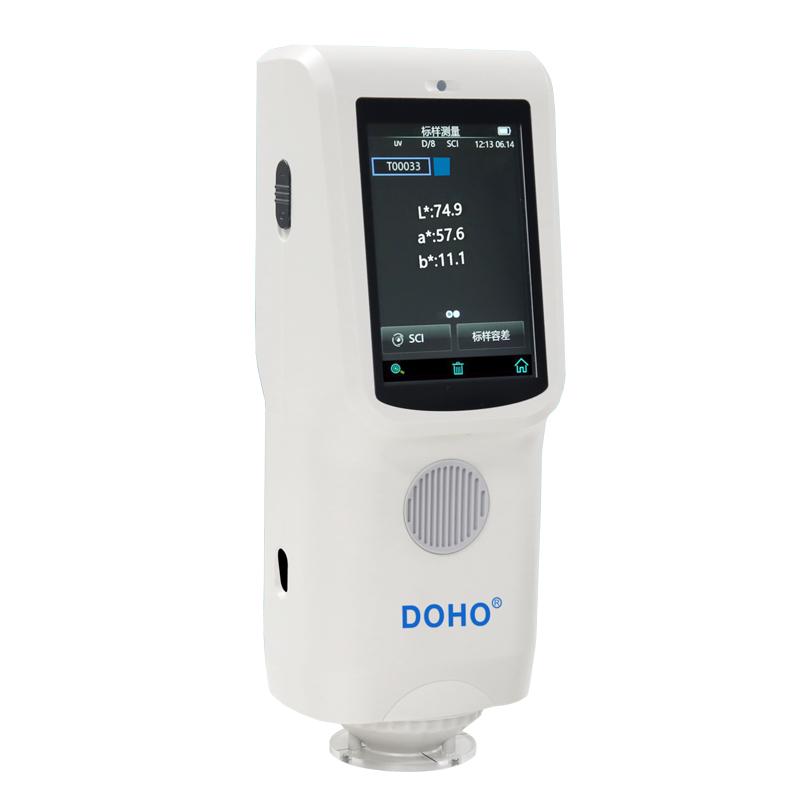

DS360 Portable color difference meter is a Portable Colorimeter developed by independent spectroscopic core technology. In addition to ensuring accurate relative values, it also ensures the long-term accuracy of absolute values L, A, B, and can be measured anytime and anywhere through international standards and national standards.
1. Adopt the internationally accepted D/8 SCI/SCE synthesis technology 2. Adopt Full Band Equalization LED Illuminant to Improve Measurement speed and accuracy 3. Equipped with Silicon Photodiode Array (Dual 32 Array) Sensor 4. Support a variety of Color measurement spaces and Observational Illuminants to meet different measurement needs 5. Measurement verification report for each instrument to ensure Reliability of test data 6. Adopt innovative ETC real-time calibrating technology (Every Test Calibration) 7. Camera viewfinder positioning, clear observation of measurement area 8. With CQCS3 quality management software to achieve expanded functions
The instrument uses a planar grating spectroscopic mode, using a combined full-spectrum LED Illuminant and UV Illuminant for diffuse illumination, receives reflected light signals through a silicon photodiode array sensor, and performs spectroscopic measurement at 10nm intervals in the 400~ 700nm Wavelength range, while supporting SCI/SCE Measurement mode.
Plastics, electronics, paints, inks, Spinning & weaving garment printing and dyeing, printing paper products, automotive, medical, cosmetics, food
CIE No.15、GB/T3978、GB2893、GB/T18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
1. Preheat and calibrate 2. Locate the measurement area through camera viewfinder or stabilizer 3. Select Single measurement or Average Measurement mode (2~ 99 times) 4. Select the appropriate measurement diameter (MAV: φ 8mm/φ 10mm or SAV: φ 4mm/φ 5mm) 5. Take measurements and read the results 6. Transfer data via USB or Bluetooth connection
• Temperature range 0~ 40 ℃, relative humidity 0~ 85% RH (no condensation) Temperature range -20~ 50 ℃, relative humidity 0~ 85% RH (no condensation) • The use altitude should be less than 2000m • Black and white correction is required before measurement • Regularly check the Illuminant status, with a lifespan of 5 years and more than 3 million measurements • The battery life is 6000 measurements within 8 hours, and it needs to be charged in time • Use matching caliber for measurement to ensure measurement accuracy
