$ 6893.00Ex works
1000-wire precision blazing grating spectroscopy, silicon photodiode array Sensor, Optical inspection resolution less than 10nm in the visible range, equipped with three measurement diaMeters to meet different sample testing needs.
Category : Color Spectrophotometer
Brand : 3NH
SKU : NB047097
Service :The delivery and service By NBCLab.Com

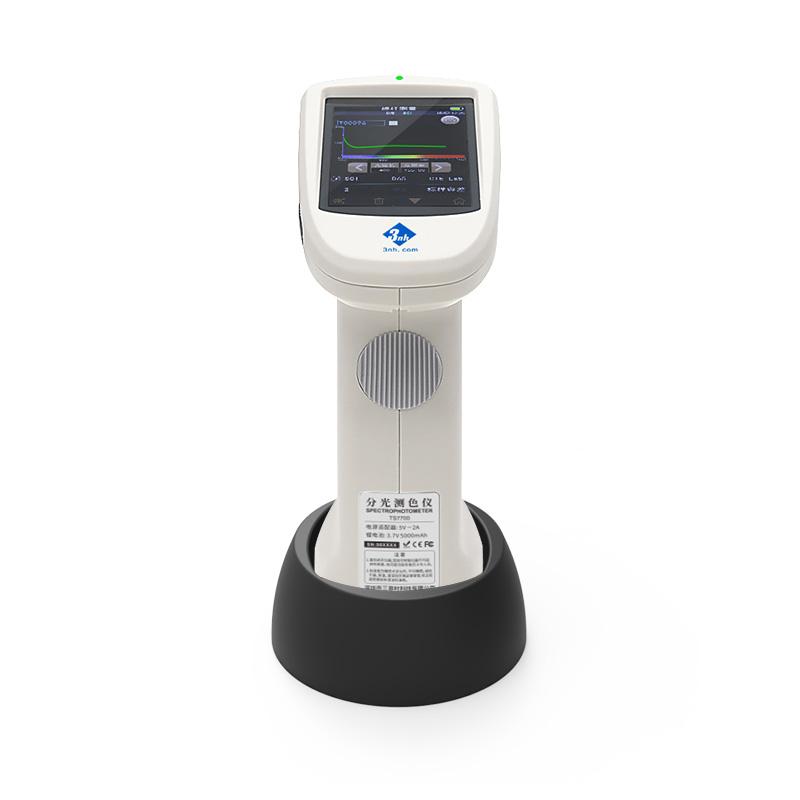

The TS7708 Portable color difference meter is a grating Colorimeter independently developed by 3nh Company. It uses a 1000-wire precision blazing grating as a spectroscopic element, built-in silicon photodiode array sensor and imported whiteboard. Repeatability Delta E * ab is controlled within 0.03. The instrument uses a high-life full-spectrum LED Illuminant, Optical inspection resolution is less than 10nm, and accurate measurement of SCI and SCE reflectance data of samples/fluorescent samples under D8 geometrical optics lighting conditions. It supports a variety of Color space and Color difference formula to achieve accurate Color transfer and color scheme system detection.

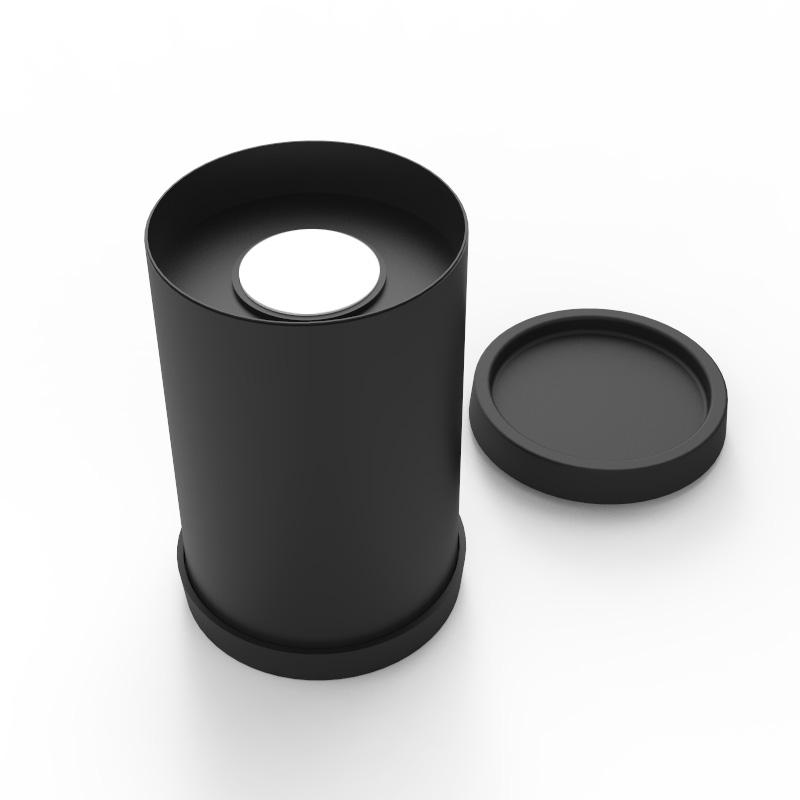

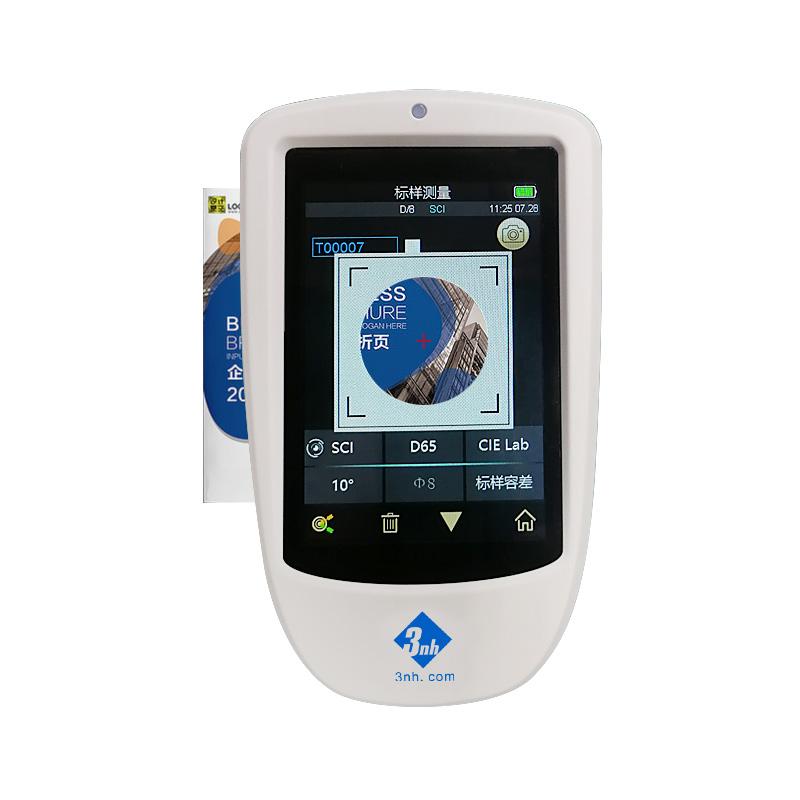

1. Silicon Photodiode Array (Dual 40 Array) Sensor for Measurement speed, Accuracy, Stability and conformity 2. Full-band Balanced LED Illuminant to ensure sufficient Light spectrum distribution in the visible range 3. Grating spectroscopy with higher resolution 4. Place the base with peace of mind to ensure that the whiteboard is not dirty 5. Professional whiteboard 6. Fast charging function to optimize Battery capacity and life 7. Equipped with three measurement diameters (φ 8mm, φ 4mm, 1x3mm) to meet special sample measurement needs 8. Camera framing and positioning, accurately judge the tested area 9. Good Inter-instrument Agreement and Repeatability to ensure data conformity of multiple devices 10. Color measurement spaces and Illuminants 11. Adopt international general D/8 SCI/SCE synthesis technology 12. Dual optical path system, Optical inspection resolution less than 10nm in the visible range 13. PC-side software function expansion, support quality control and Color data management
Light spectrum LED Illuminant is used to illuminate the sample through D/8 (diffuse illumination, 8 ° direction reception) geometrical optics structure, and the reflected light signal is received by the silicon photodiode array Sensor. The dual-path system can simultaneously measure the SCI and SCE Light spectra of the sample. Spectroscopic analysis is performed at 10nm intervals in the 400~ 700nm Wavelength range to calculate reflectance data and Color parameters.
Plastic electronics, paints Coating, Spinning & weaving printing and dyeing, printing paper products, automotive, medical, cosmetics, food, scientific research institutions, laboratories
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
1. Turn it on and warm up and correct it. 2. Select measurement caliber and parameter settings 3. Locate the tested area through camera viewing 4. Place the sample for measurement 5. View and save measurement data 6. Connect the computer and use the software for Data analysis
• Frequent and repeated charging of the battery is harmful, and it is recommended to charge it on demand. • Operating Temperature range 0~ 40 ℃, Humidity 0~ 85% RH (no condensation) • Storage Temperature range -20~ 50 ℃, Humidity 0~ 85% RH (no condensation) • The use altitude should be less than 2000m • 1x3mm measurement diameter accuracy is slightly poor, mainly used for color difference test • Ensure that the sample surface is clean and flat during measurement
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
