Overview

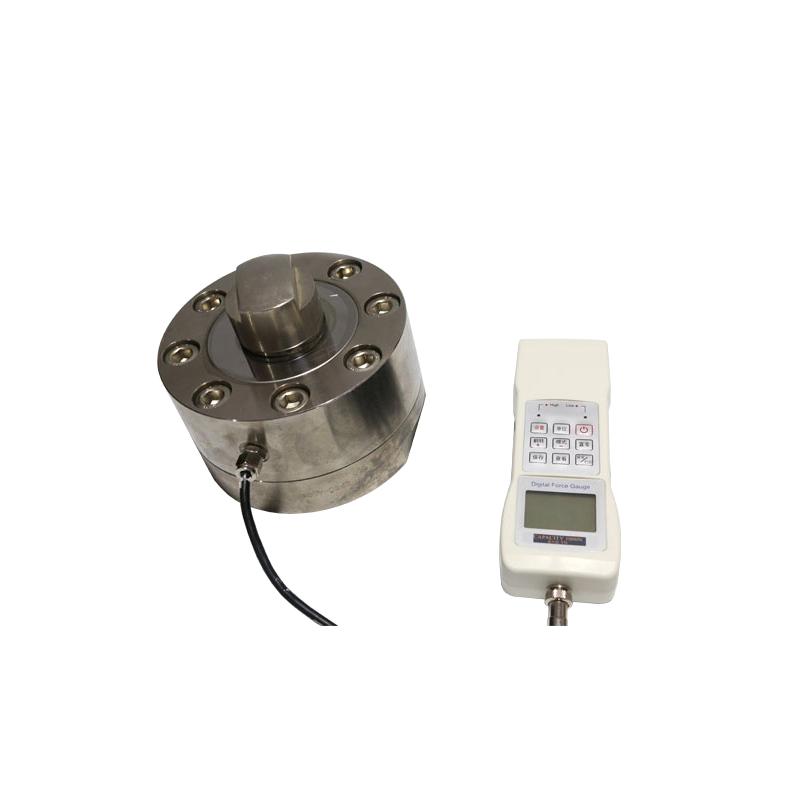

Hypertherm HG-300K Force Gauge is a universal Portable digital display Force Gauge with a maximum test load of 300KN. It uses an external smart charger with Data storage function, which is suitable for push-pull load testing of various products. It can be used with Hypertherm's machine and fixtures to form a small experimental UTM.
Features
1. High Accuracy, High resolution, High Stability
2. Free setting of upper and lower limit comparison value, automatic sound alarm and level signal output
3. Test direction display (pull +, thrust -)
4. Segment LCD display, green backlight screen
5. Store 99 sets of test data and automatically calculate the average, MAX Maximum and MIN Minimum of the stored data
6. Three units N, kgf, and lb are automatically exchanged
7. Gravity acceleration value can be set
8. Peak hold, peak automatic release function (can be set for 0 to 10 seconds)
9. Automatic shutdown without operation (time is freely set from 0 to 99 minutes)
10. Adopt external smart charger, which can charge safely and prolong Battery life
11. Serial output (baud rate 9600), can print test data and MAX Maximum, MIN Minimum, Average
12. Connect the host computer to read, print, delete, analyze and other operations of the stored data
Principle
HG-300K Wheel-width Force Gauge detects push-pull loads through external Sensors, converts mechanical signals into electrical signals, and displays measurement results on the digital display screen after ADC conversion. It supports Data storage, automatic calculation and various unit conversions to achieve accurate load testing.
Applications
Auto Parts, Fire Equipment, Chemicals, Machinery, Construction, Electronics
Standards
The product information does not mention specific compliance standards
Steps
The product information does not provide specific operation steps.
Notice
• Environmental requirements No vibration and corrosion around
• Operating temperature 0~ 40 ℃
• Storage temperature is -20~ 70 ℃
• relative humidity range of 15%~ 80% RH
