Overview

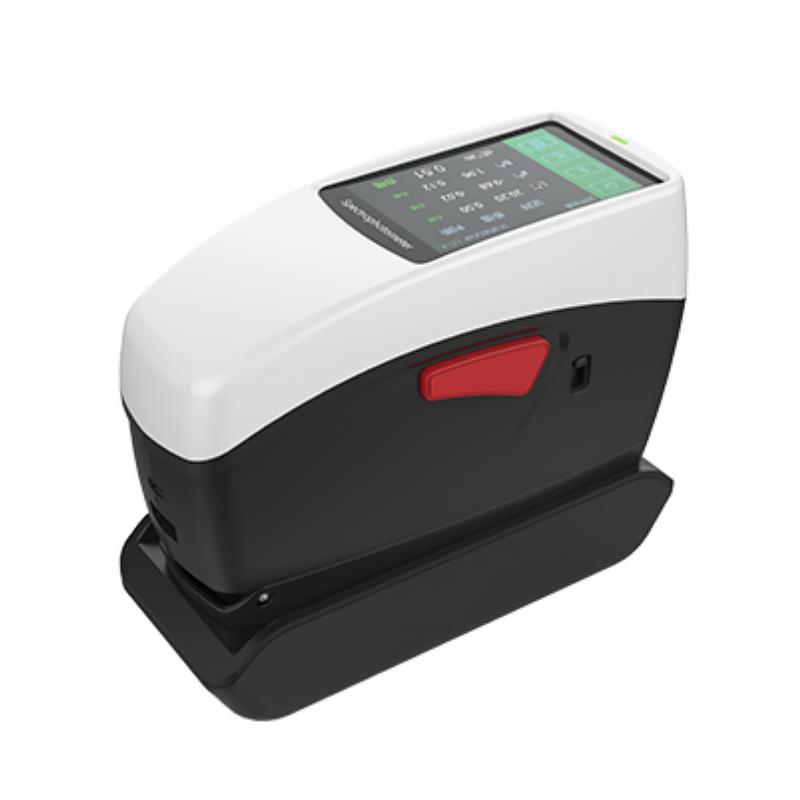

The CHNSPEC DS64 Colorimeter is designed with horizontal press measurement and is equipped with a physical positioning observation window to ensure accurate Measuring location. The instrument supports 5 measurement diameters and a variety of mobile end connections, suitable for Color measurement and color management.
Features
1. horizontal press measurement, physical positioning observation window, easy to view Measuring location
2. Repeatability accuracy: dE * ab ≤ 0.02
3. Support 5 measurement diameters: φ 11mm, φ 10mm, φ 6mm, φ 5mm, φ 3mm
4. More than 30 Measurement parameters and nearly 40 Evaluation Illuminants, covering Light spectrum reflectance, CIE-Lab, whiteness and other indicators
5. Support WeChat Mini Program, Android, Apple, Hongmeng mobile app, easy to Color data transfer and color library management
6. Equipped with PC-side color management system ColorExpert, providing complete color management functions
Principle
DS64 Colorimeter adopts D/8 measurement structure, SCI + SCE mode, and uses full-band equalized LED Illuminant illumination. Spectroscopic measurement at 10nm intervals in the 400~ 700nm Wavelength range is performed through High Accuracy Nano-Spectrometer Device and Silicon Photodiode Array Dual 16-group inductors to obtain sample reflectance data.
Applications
Printing, Coating, Spinning & weaving
Standards
CIENo.15、GB/T3978、GB2893、GB/T18833、ISO7724-1、ASTME1164、DIN5033Teil7
Steps
1. Choose the right measurement caliber

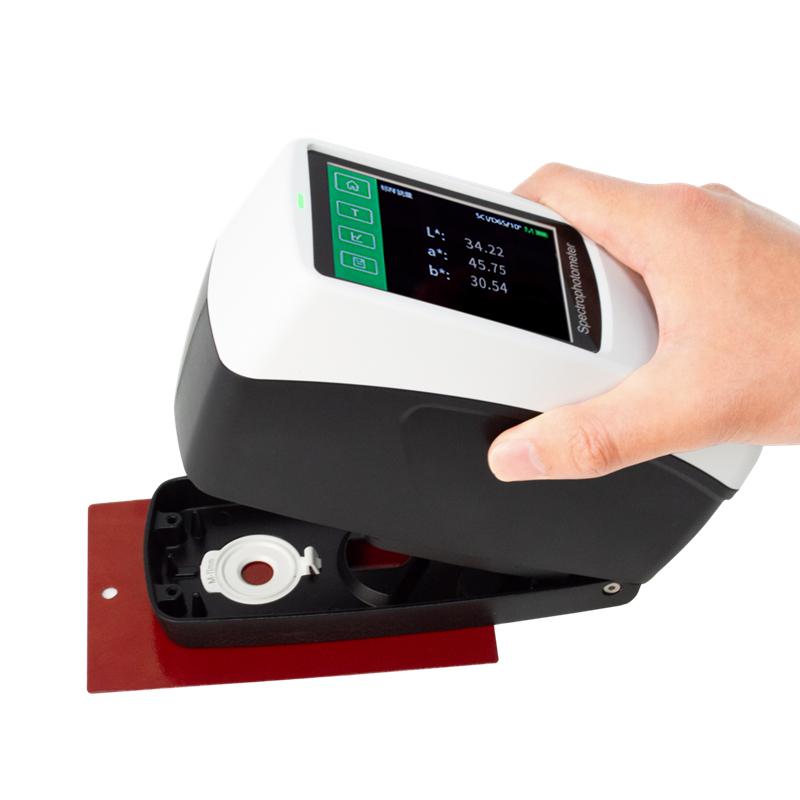

2. Measuring location through observation window
3. Press for measurement
4. View and analyze data through mobile end APP or PC software
5. Create and manage personal color databases
Notice
• Make sure the observation window is clear before measurement to avoid position errors
• Select the appropriate measurement caliber according to Sample size
Periodically calibrate instruments to ensure measurement accuracy
• Pay attention to the battery power, a single charge can be measured about 8000 times
• Use supporting software for data management and sharing
