Overview

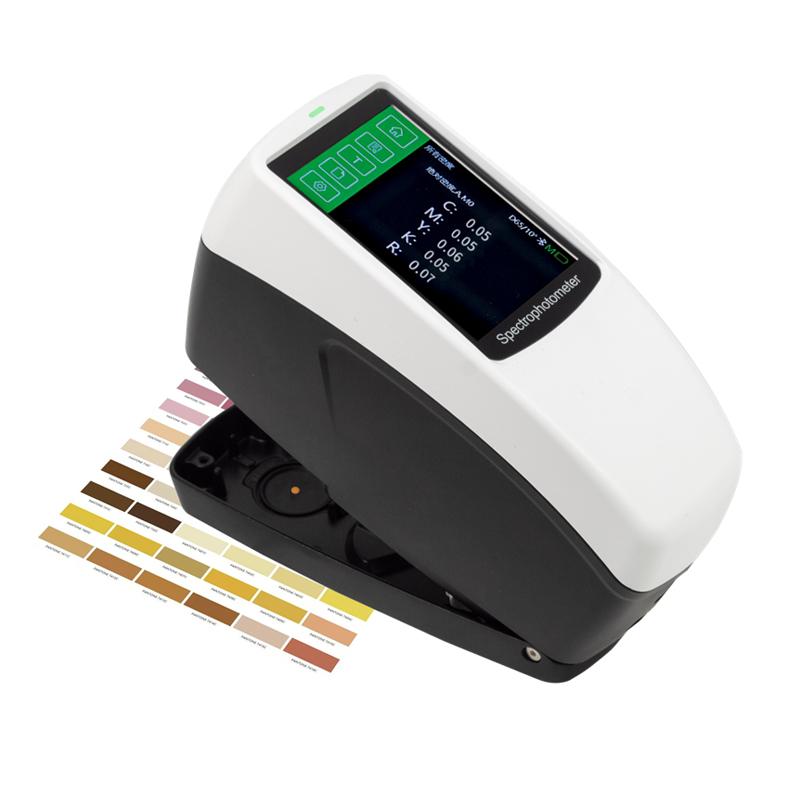

The CHNSPEC DS530 spectrophotometer is a precision color measuring instrument with a 45/0 measurement structure, with a horizontal press measurement design and a physical positioning observation window. The instrument provides printing-specific measurement indicators, supports a variety of measurement diameters and rich Measurement parameters, and is suitable for Color quality control in printing, Coating, Spinning & weaving and other industries.
Features

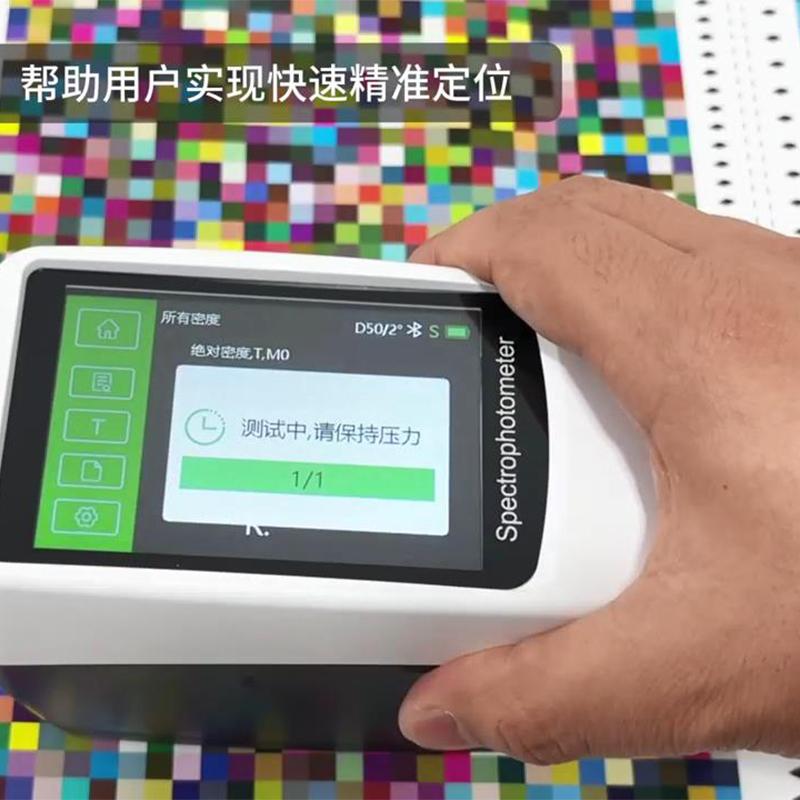

1. horizontal press measurement design, equipped with physical positioning observation window to ensure accurate Measuring location
2. Provide printing-specific measurement indicators, including color density, Dot area, overprint rate, Print Contrast, shade error and gray scale measurement
3. Repeatability accuracy dE * ab ≤ 0.02
4. Support 5 measurement diameters: φ 11mm, φ 10mm, φ 6mm, φ 5mm, φ 3mm

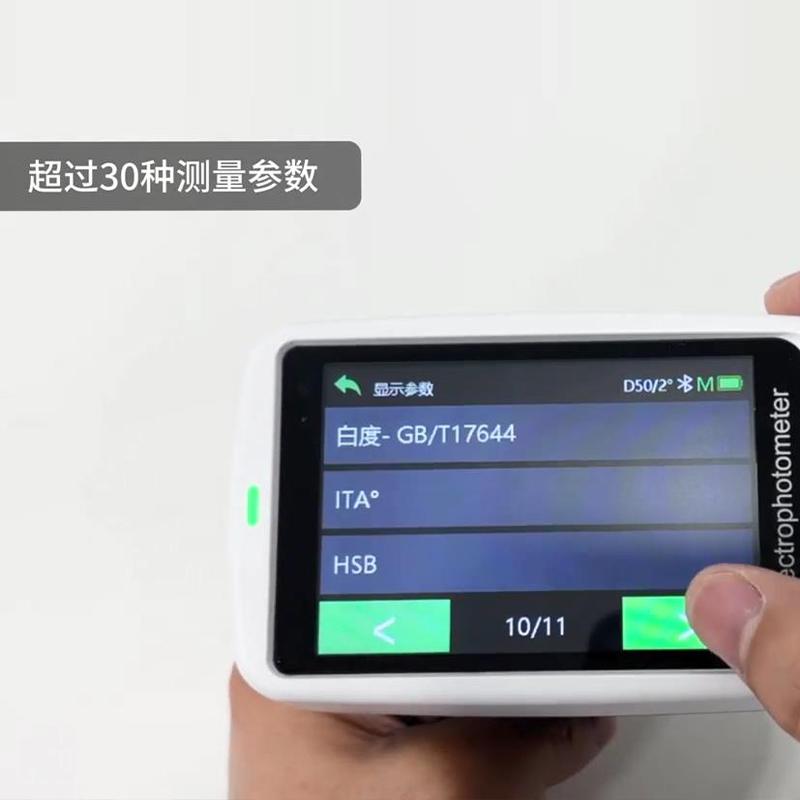

5. More than 30 Measurement parameters and nearly 40 Evaluation Illuminants

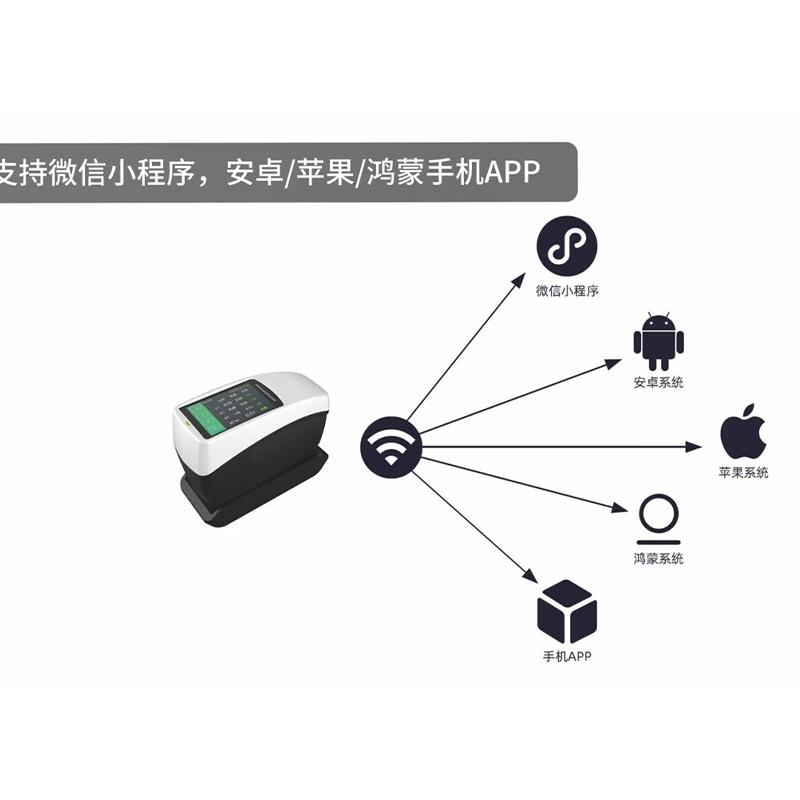

6. Support WeChat Mini Program, Android, Apple, Hongmeng mobile app
7. Equipped with PC-side color management system ColorExpert
Principle
The DS530 spectrophotometer adopts a 45/0 measurement structure, irradiates the sample with a full-band equalized LED Illuminant, and receives the reflected light signal through a High Accuracy Nano-spectrometer and a silicon photodiode array of dual 16-group sensors. The instrument performs Light spectrum analysis at 10nm intervals in the 400~ 700nm Wavelength range, and measures Light spectrum reflectance and calculates various Color parameters.
Applications
Printing, Coating, Spinning & weaving
Standards
CIE No.15、GB/T 3978、GB 2893、GB/T 18833、ISO7724-1、ASTM E1164、DIN5033 Teil7
Steps
1. Connect the instrument and device via Bluetooth or USB cable
2. Select the appropriate measurement caliber
3. Press the instrument horizontally on the tested surface
4. Measuring location through viewing window
5. Start the measurement and complete in about 1 second
6. View measurement results and perform Data analysis through mobile end or PC end software
Notice
• Measuring location must be confirmed through the observation window before measurement to avoid position errors
• Select the appropriate measurement caliber according to Sample size
• The instrument adopts 7.2V/3000mAh battery, which can be continuously measured 8000 times on a single charge
• data storage capacity: local storage of 10,000 instruments, APP supports mass storage
• Illuminant life for 5 million measurements
