Overview

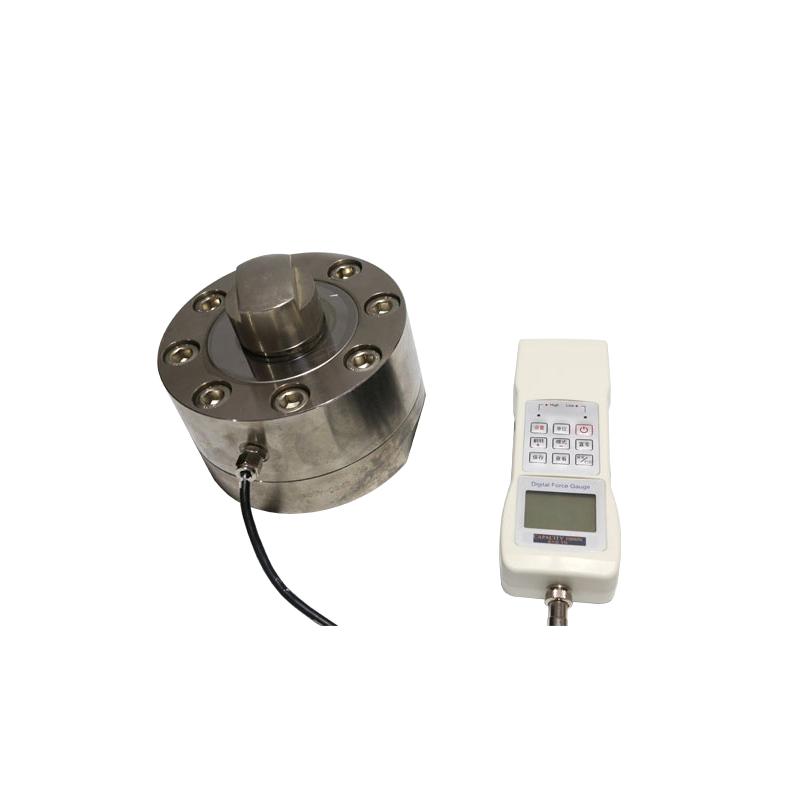

The Hypertherm HG-500K wheel amplitude dynamometer is a digital display Force Gauge with a segment LCD screen and an external smart charger. The load value is 500KN, the relative Indication Error is +/- 0.5%, and the Measurement accuracy is high. The instrument has a backlit display function, and the Sensor is an external design.
Features
1. High Accuracy High resolution, High Stability, sampling speed up to 120HZ
2. Special Instrument Toolbox with EVA Shockproof Encasement, Easy to Transport, Save and Carry
3. Segment LCD display, green backlight screen
4. Six units N, KN, Kgf, gf, lbf, tf are freely interchangeable
5. Test direction display (tension +, thrust -)
6. Three test modes: real-time force tracking mode, peak holding mode, and first peak mode
7. Can set the upper and lower limit comparison value to judge whether the data is qualified or not, with sound alarm and level signal output
8. Store 99 sets of test data and automatically calculate the average value of the stored data, MAX Maximum and MIN Minimum.
9. Peak hold time can be set (can be set from 0 to 99 seconds)
10. Gravity acceleration value can be set
11. Automatic shutdown without operation can be set (time can be set freely from 0 to 99 minutes)
12. Limit protection: with range sound alarm and mechanical two-level limit protection
13. Smart Charging, Safe Charging, Extend Battery life
14. With the company's electric testing device, it can realize various new practical functions such as stop or reset when the tested product is damaged, stop or reset when it reaches the preset force value, fatigue test, etc
15. Host computer software: Chinese WINDOWS interface
16. The test results have a variety of coordinate Linear dispersion display: real-time force value - time, peak force value - number of times, first peak - number of times
17. Qualification judgment: In addition to automatically obtaining the test results, the qualified judgment and batch inspection pass rate can be made according to the qualified range of the preset Standard value
18. Automatic storage: Test data and Linear dispersion are automatically stored in the computer, and the number of storage is unlimited
19. Test data: The data obtained from the test can be queried and exported in excel format
20. Test report: Test report can be prepared in the format required by the user, form a report and print it
Principle
Hypertherm HG-500K wheel amplitude dynamometer collects force value signals through external Sensors, which are converted by ADC and processed by microprocessor. The measurement results are displayed in real time on the segment LCD screen. The instrument supports a variety of test modes and unit conversions, and combines intelligent algorithms to realize Data storage, analysis and alarm functions.
Applications
Auto Parts, Fire Equipment, Chemicals, Machinery, Construction, Electronics
Steps
1. Connect Sensors and Meters to Ensure Sufficient Power Supply
2. Turn on the power switch and select the desired unit and test mode
3. Set the upper and lower limit comparison value, peak holding time and other parameters
4. Conduct push-pull load testing or failure testing
5. Observe the display data, and the instrument automatically stores the test results
6. Use the host computer software to export data or generate test reports
7. Turn off the power after the test is completed and store the instrument properly
Notice
• Operating temperature range is 0~ 40 ℃, storage temperature is -20~ 70 ℃
• relative humidity should be kept at 15%~ 80% RH
• The surrounding environment should be free of vibration and corrosion medium
• Check the battery power before use, make sure the charger input is 220V/50HZ, and the output is 5V/1A
• Avoid over-range use and pay attention to the limit protection function
• Regularly calibrate instruments to ensure Measurement accuracy
• Special Shockproof Encasement for Transportation and Storage
