China TBJ-A1-DJ10 Automatic Film Applicator Smoothing Rods Adjustable Thickness Film Applicator

Name: China TBJ-A1-DJ10 Automatic Film Applicator Smoothing Rods Adjustable Thickness Film Applicator
Brand: zy
SKU: NB047132
Price: 3260.0 USD
Availability: PreOrder

$ 3260.00Ex works

Coating speed 5~ 180mm/s adjustable, thickness range 0~ 10mm, support Vacuum chuck fixed substrate, optional Accessories to meet the needs of different Spreaders, High Accuracy film.

Model

TBJ-A1-DJ10

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB047132

Service :The delivery and service By NBCLab.Com

Overview

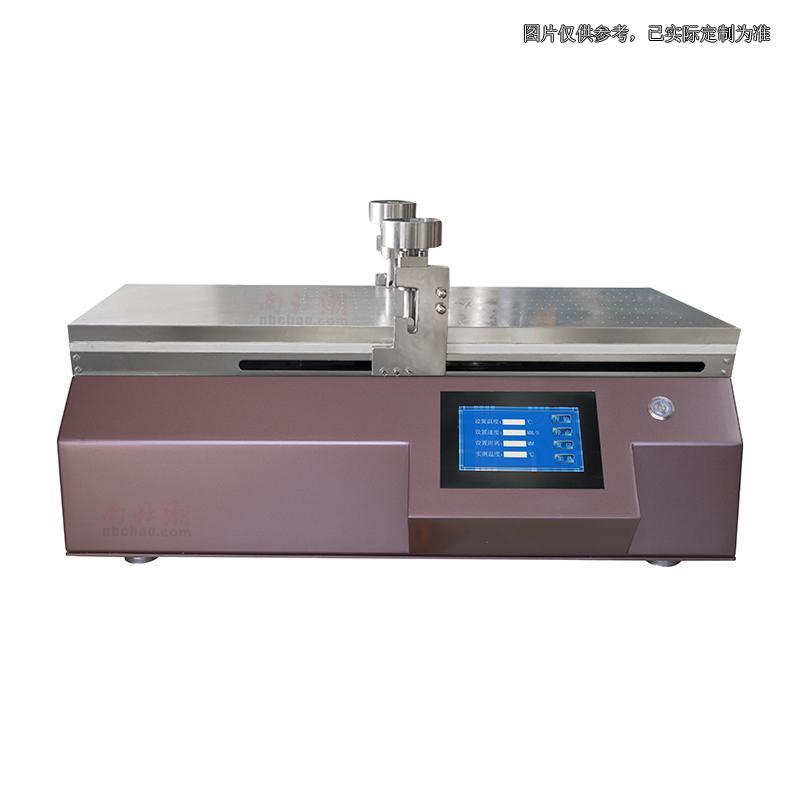

TBJ-A1-DJ10 Smoothing Rods Adjustable Thickness Film Applicator is a customized small film Applicator dedicated to hot-melt adhesive film. The size of the Spreader base is 300 * 400mm, the coating speed is adjustable from 5 to 180mm/s, and the Spreader thickness is 0~ 10mm. Touchscreen Operation mode is adopted. Can be equipped with different bars to meet the High Accuracy Spreader on different films.

Features

1. Smoothing Rods coating method, can be equipped with different bars to achieve High Accuracy Spreader 2. Spreader thickness 0~ 10mm adjustable, regulator display accuracy +/- 0.001mm 3. Adjustable coating speed 5~ 200mm/s, support stepless speed change 4. Touchscreen control, digital display 5. Vacuum chucking method for substrate fixing 6. Support a variety of customization functions and optional Accessories

Principle

The Film Applicator uses the Smoothing Rods coating method to form a uniform coating on the surface of the substrate by adjusting the thickness and rate of the Spreader. The device fixes the substrate through Vacuum chuck, and uses stepless variable speed to control the Spreader speed to achieve accurate film process.

Applications

Hot-melt adhesive film

Steps

1. Prepare the Spreader substrate and place it on the Spreader stage 2. Vacuum chuck fixed substrate 3. Set Spreader Thickness and Rate Parameters on Touchscreen 4. Choose the right bar 5. Start Film Applicator for Spreader operation 6. Remove the substrate after completing the Spreader

coating method
Smoothing Rods Spreader
Coating Size
300 * 400Mm (Miscellaneous Size can be customized)
application width
300mm
coating speed
5-200mm/s (< 5mm/s can be customized)
Control mode

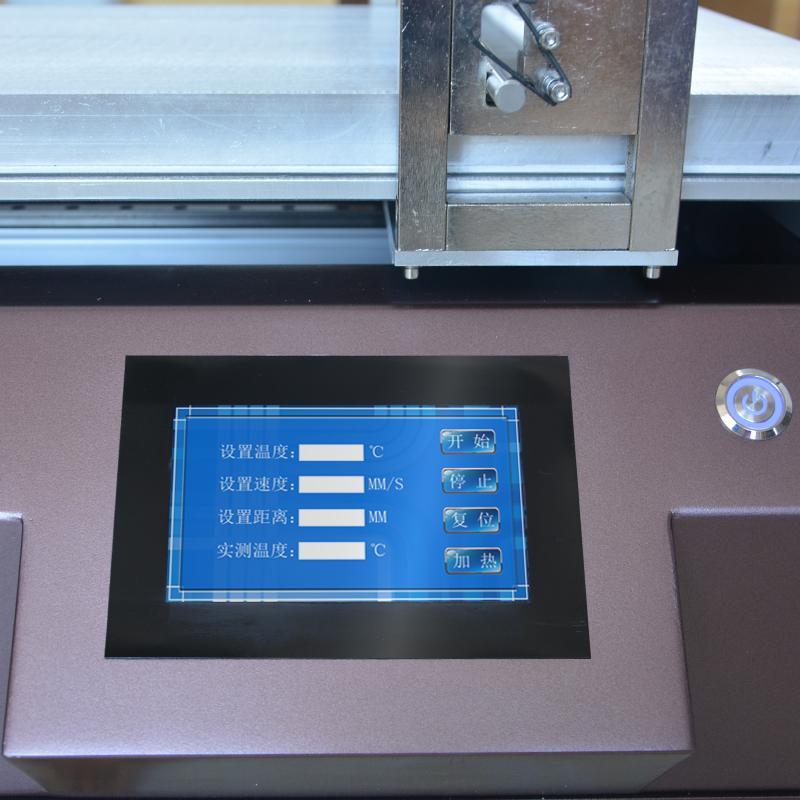

Touchscreen control
Regulator display accuracy
±0.001mm
display screen
digital display
Total power consumption
2060W
Host power supply
220V 50Hz
Dimension
690*410*520mm
Machine weight
65Kg
Coating table material
aluminum alloy
Vacuum pump Size
380*180*280mm
Smoothing Rods Adjustable Thickness Range
0~10mm
speed control
Infinitely variable speed
Substrate clamping method
Vacuum chuck
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Automatic lame plating device, UV curing device, automatic inking system, air knife drying, remote control, upper infrared heating, double extrusion Spreader

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
