Overview

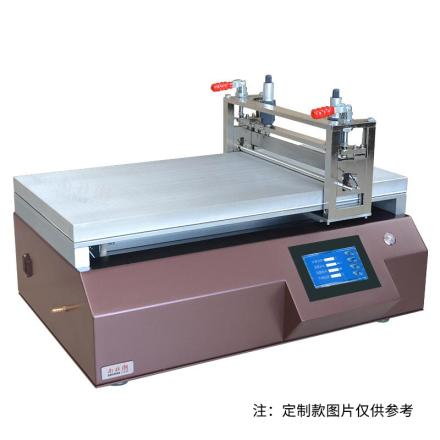

Automatic Film Applicator is a device for intermediate coating film in the laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. This Film Applicator is a drawdown blade automatic Lab Film Applicator with Vacuum chuck function. The new bar Installation method and clamshell drawdown blade head greatly improve the efficiency of Spreader, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, lithium batteries, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. Flap drawdown blade design, cleaning fast and convenient
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and the Spreader parameters.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Set Spreader parameters through the Touchscreen control panel
2. Adjust application length and Spreader speed
3. Install coating rod or drawdown blade
4. Place the sample on the Spreader stage
5. Start the device for automatic filming
6. Cleaning equipment after film
Notice
• The maximum test cardboard thickness is 10mm
• Maximum test substrate thickness: drawdown blade 15mm, bar 10mm (can be customized if required)
• Minimum length of coating rod is 345mm
• Maximum diameter of coating rod is φ 10mm
• Miscellaneous film applicator width of 300mm
• Miscellaneous film applicator adjustable film thickness of 0.01~ 13mm (can be customized if required)
• Host power supply is 220V/50HZ (110V/60HZ can be customized)
• Energy consumption is 600W
