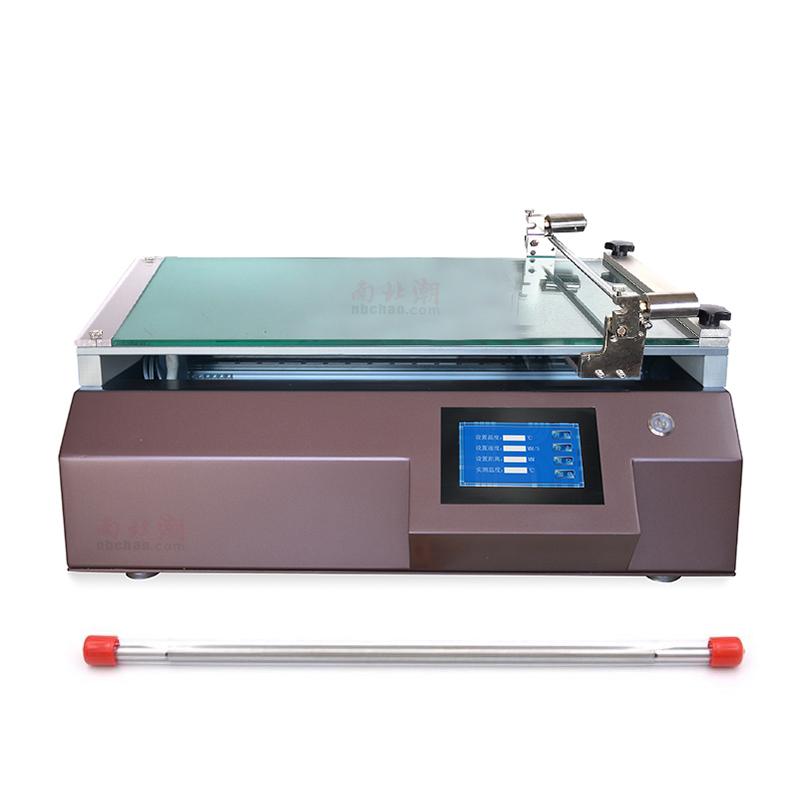

China TBJ-A1-DJ11 Automatic Film Applicator bar Lab Film Applicator Infinitely Variable Speed Spreader

Name: China TBJ-A1-DJ11 Automatic Film Applicator bar Lab Film Applicator Infinitely Variable Speed Spreader
Brand: zy
SKU: NB047202
Price: 4535.0 USD
Availability: PreOrder

$ 4535.00Ex works

Coating speed 5~ 180mm/s adjustable, meyer Rod coating accuracy of +/- 0.001mm, using aluminum alloy coating table and optional Accessories to adapt to different substrate thickness, to achieve continuous flawless Spreader.

Model

TBJ-A1-DJ11

Get Quote

Category : Automatic Film Applicator

Brand : zy

SKU : NB047202

Service :The delivery and service By NBCLab.Com

Overview

The TBJ-A1 bar Lab Film Applicator is a newly upgraded product. It is carefully designed for Spreader accurate wet-film on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless test samples. After the equipment was put into the market, it was favored by many familiar companies, R & D institutions, Universities & colleges. This Automatic film applicator comes standard with 1 China bar and 1 imported bar with an accuracy of up to 1μm.

Features

1. Wide coating speed range: 5~ 180mm/s (< 5mm/s can be customized) 2. Large effective coating area: 800 * 700mm 3. Various specifications of coating rods: 1.5μm~ 171.5μm (Spreader thickness is determined according to bar model) 4. meyer rod coating accuracy: +/- 0.001mm 5. Speed control: stepless variable speed 6. Material of coating table: aluminum alloy 7. Accessories: leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle 8. Customizable functions: jet system device, UV solid inclusion device, automatic inking system 9 coating method: bar Spreader

Principle

The Automatic Film Applicator adopts the bar coating method, controls the coating speed through stepless speed, and repeatedly and continuously Spreaders out accurate wet-film on different substrates. The meyer rod coating accuracy is as high as +/- 0.001mm, and the thickness of the Spreader can be determined according to the bar model.

Applications

Companies, Research Institutions, Universities & colleges

coating speed
5~ 180mm/s (< 5mm/s can be customized)
Coating Size
700*800mm
Coating rod film thickness
1.5μm~171.5μm
Coating rod accuracy
±0.001mm
Host power supply
220V 50Hz
Dimension
650*410*520mm
Net weight
45kg
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Optional Accessories
Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and weight (for applications with uneven thickness of Spreader substrate), application width control baffle
customizable function
Jet system device, UV solid inclusion device, automatic inking system

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
