Overview

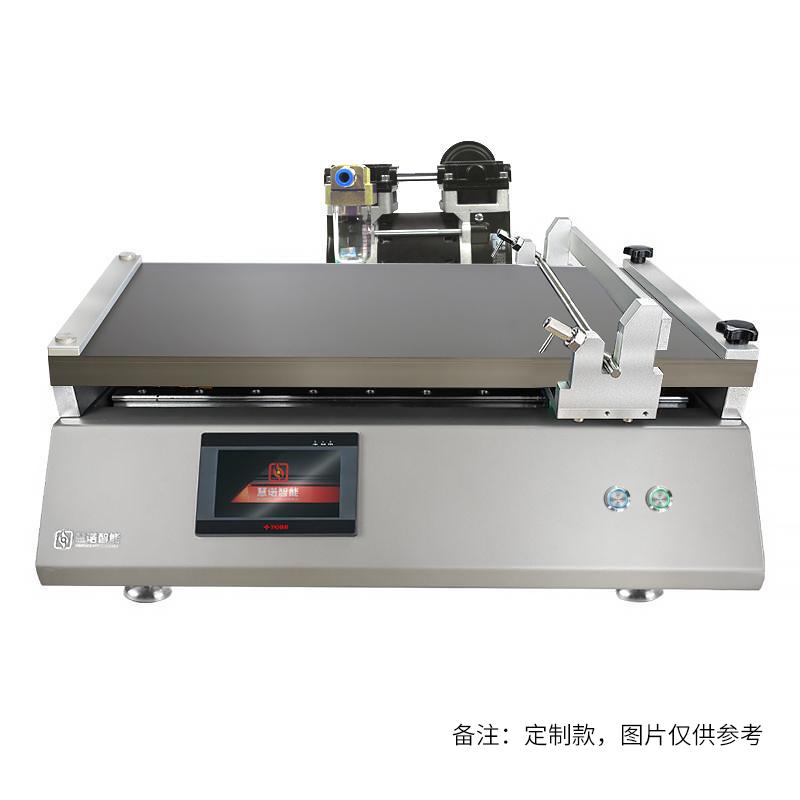

Automatic Film Applicator is a device used for intermediate coating film in laboratory. It replaces manual film and automatically films to improve the accuracy and efficiency of film. The Working Principle of Experimental Automatic Film Applicator is to uniformly Spreader the sample on the substrate by controlling the Spreader head and Spreader parameters to form the desired film. This Film Applicator is a drawdown blade type Automatic film applicator with heating and Vacuum chuck function, innovative bar Installation method and clamshell drawdown blade head greatly improve Spreader efficiency, easy to clean, support speed control and application length adjustment, suitable for laboratory High Accuracy automatic film, Moulding proofing in laboratories such as university research institutes, New material, electricity, glue, Resin, etc.
Features
1. Surface hard treatment Aluminum alloy countertop, Hardness and wear resistance, Smoothness of countertop is detected by imported High Accuracy instrument
2. Big brand differential regulator, high film thickness control accuracy
3. With heating and Vacuum chuck function
4. Flap drawdown blade design, cleaning fast and convenient
5. Touchscreen control panel, easy to operate
6. Free adjustment of application length and Spreader speed
Principle
The Working Principle of Automatic Film Applicator is to uniformly Spreader the sample on the substrate to form the desired film by controlling the Spreader head and Spreader parameters. Blade Coating method is used to fix the substrate through Vacuum chuck and fixture, and the heating function is combined to achieve uniform film.
Applications
Coatings, inks, paints, Stocks, Lithium batteries, Pressure sensitive adhesives, Resins, glues, polymer materials, pharmaceuticals and other film samples
Steps
1. Prepare Substrate and Spreader Samples
2. Place the substrate on the Spreader table and fix it with Vacuum chuck and fixture
3. Set Spreader parameters, including Spreader speed, application length and Spreader thickness
4. Start the device for automatic filming
5. Remove the sample after the Spreader is completed
6. Clean drawdown blade and coating table
Notice
• Make sure the power supply of the device is connected correctly before operation
• Spreader parameter settings need to be adjusted according to sample characteristics
• Spreader cleaning the drawdown blade and coating table in time
• Pay attention to temperature control when using the heating function
• Vacuum chuck function needs to ensure that the substrate is placed flat
